IGNITION SWITCH
ZX900A10 GPZ900R 1993 NETHERLANDS FG

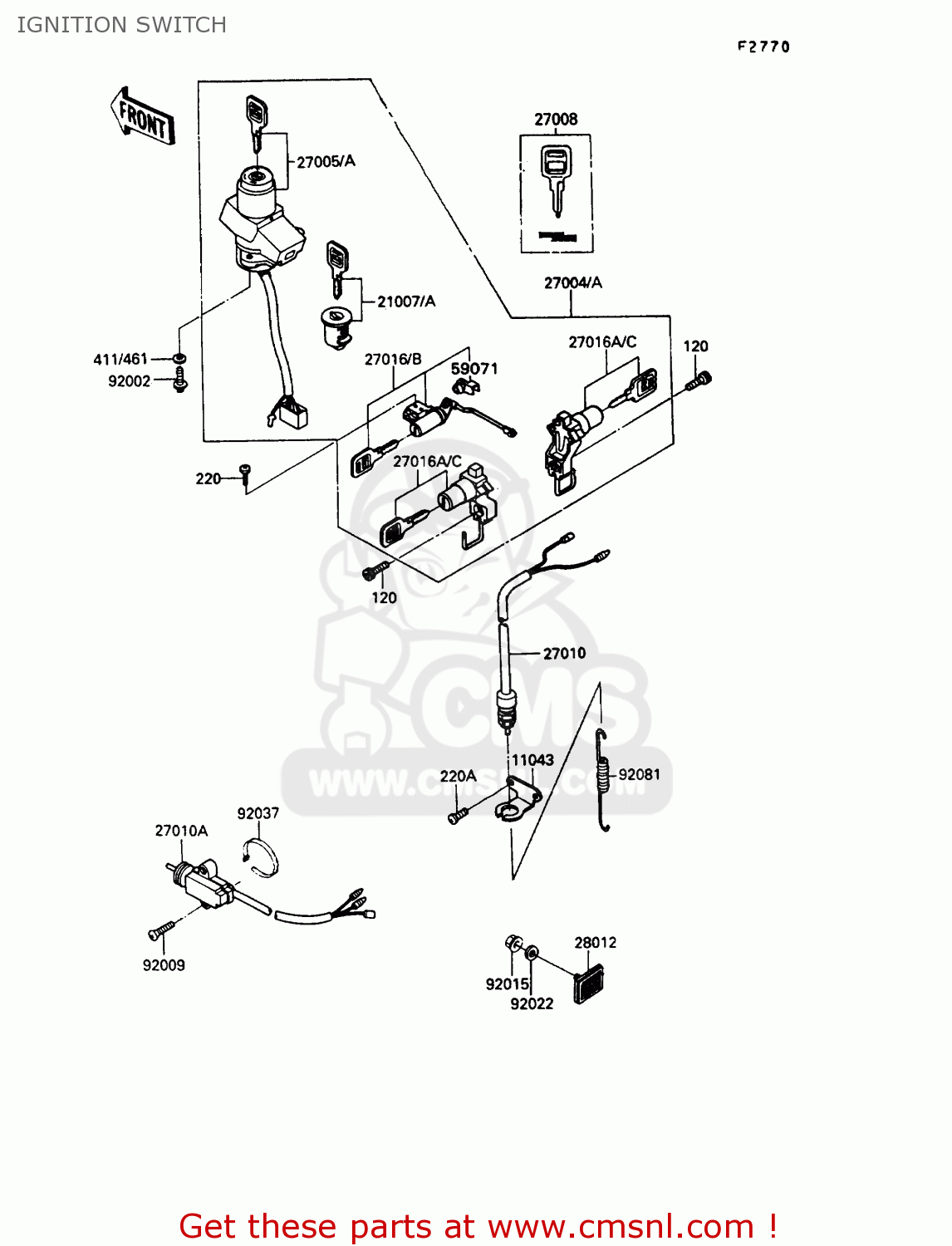

Ignition switch diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
IGNITION SWITCH ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
120
120S0612
ref: 120
BOLT-SOCKET
€ 1.50
220
220B0512
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220B0608
ref: 220A
SCREW-PAN HEAD,6X8
€ 0.50
411
411E0600
ref: 411
NL
W-PLAIN-S
€ 0.50
461
461L0600
ref: 461
FG
WASHER-SPRING
€ 0.50
11043
110431451
ref: 11043
BRACKET,RR BRAKE SWIT
€ 7.50
21007
210075008
ref: 21007
NL
ROTOR,TANK CAP
€ 65.50
21007A
210075011
ref: 21007A
FG
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045275
ref: 27004
FG
SWITCH-ASSY
€ 262.50
27004A
270045392
ref: 27004A
NL
SWITCH-ASSY
€ 260.00
27005
270055051
ref: 27005
NL
SWITCH-ASSY-IGNITION
€ 267.50
27005A
270055057
ref: 27005A
FG
SWITCH-ASSY-IGNITION
€ 143.00
27008
270081103
ref: 27008
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101277
ref: 27010A
SWITCH,SIDE STAND
€ 60.00
27016
270165079
ref: 27016
NL
LOCK-ASSY,SEAT
€ 99.00
27016A
270165080
ref: 27016A
NL
LOCK-ASSY,HELMET
€ 80.50
27016B
270165083
ref: 27016B
FG
LOCK-ASSY,SEAT
€ 99.00
27016C
270165084
ref: 27016C
FG
LOCK-ASSY,HELMET
€ 80.50
28012
280121055
ref: 28012
REFLECTOR-REFLEX,RR
€ 12.50
59071
590711103
ref: 59071
JOINT
€ 5.50
92002
920021333
ref: 92002
BOLT
€ 1.50
92009
920091459
ref: 92009
SCREW
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92037
920371576
ref: 92037
CLAMP,L=203
€ 8.00
92081
920811663
ref: 92081
SPRING,BRAKE LAMP SWI
€ 7.50
