FRONT FORK
ZX900A10 GPZ900R 1993 NETHERLANDS FG

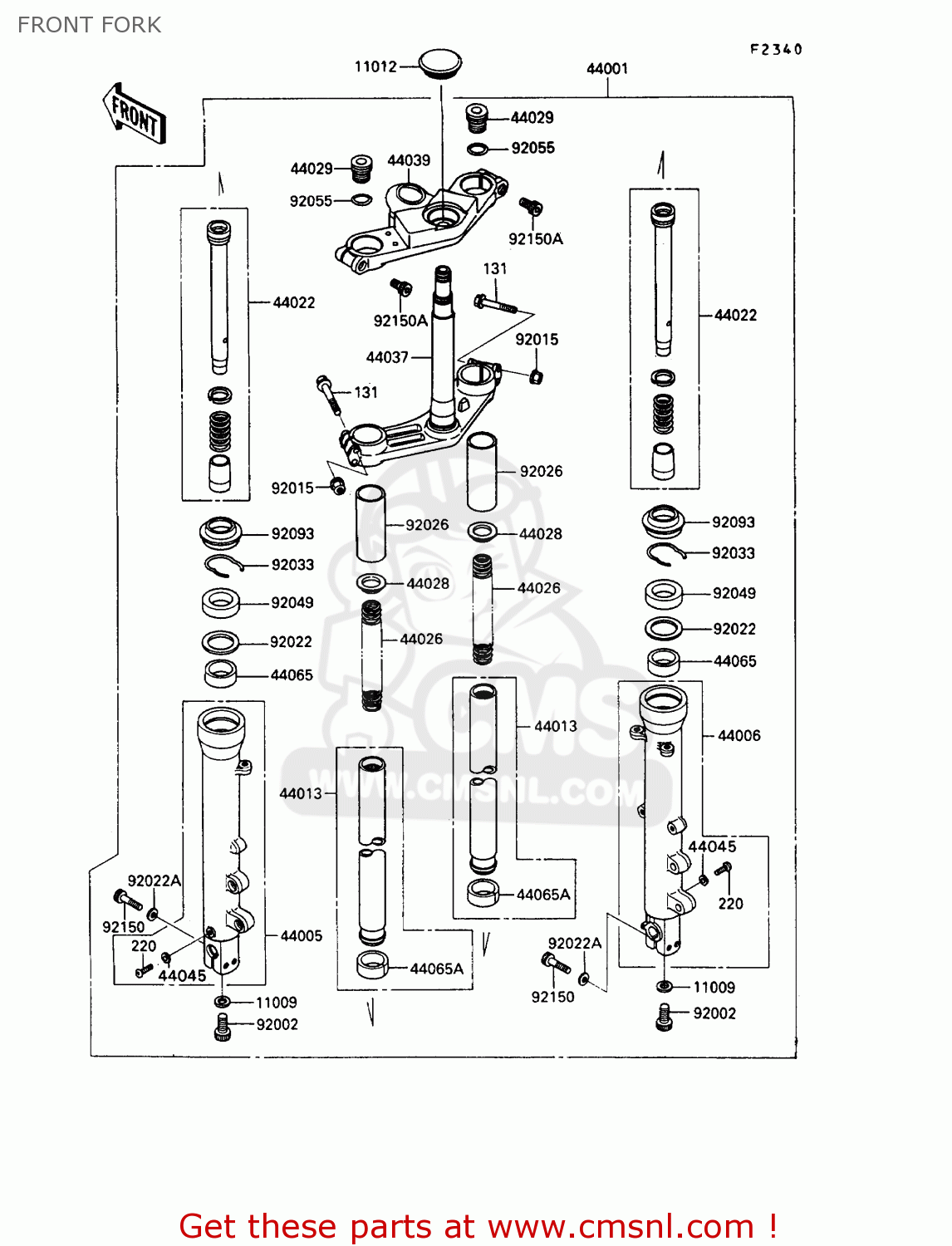

Front fork diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
FRONT FORK ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
131
131G0850
ref: 131
BOLT-FLANGED
€ 1.00
220
220E0408
ref: 220
SCREW-PAN HEAD,4X8
€ 2.50
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121750EA
ref: 11012
CAP,FORK,M.BLACK
€ 7.00
44001
440011763EA
ref: 44001
FORK-FRONT,BLACK
€ 1,867.00
44005
440051306
ref: 44005
PIPE-LEFT FORK OUTER
€ 281.00
44006
440061303
ref: 44006
PIPE-RIGHT FORK OUTER
€ 316.00
44013
440131317
ref: 44013
PIPE-FORK INNER
€ 265.00
44022
440221252
ref: 44022
CYLINDER-FORK
€ 91.00
44026
440261459
ref: 44026
SPRING-FRONT FORK
€ 75.50
44028
440281060
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291133
ref: 44029
SEAT-FORK SPRING
€ 40.00
44037
440371270
ref: 44037
HOLDER-FORK UNDER
€ 393.50
44039
440391201EA
ref: 44039
HOLDER-FORK UPPER,BLA
€ 223.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
€ 21.00
92002
920021650
ref: 92002
BOLT,FORK DRAIN
€ 10.00
92015
920151485
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
€ 5.50
92022A
920221598
ref: 92022A
WASHER
€ 4.50
92026
920261390
ref: 92026
SPACER,FORK,L=100
€ 8.00
92033
920331036
ref: 92033
CIRCLIP
€ 4.00
92049
920491273
ref: 92049
SEAL-OIL,FORK OUTER
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92093
920931232
ref: 92093
SEAL,FORK OUTER TUBE
€ 14.00
92150
921501194
ref: 92150
BOLT,SOCKET,8X40
€ 2.00
92150A
921501395
ref: 92150A
BOLT,SOCKET,10X35
€ 4.00
