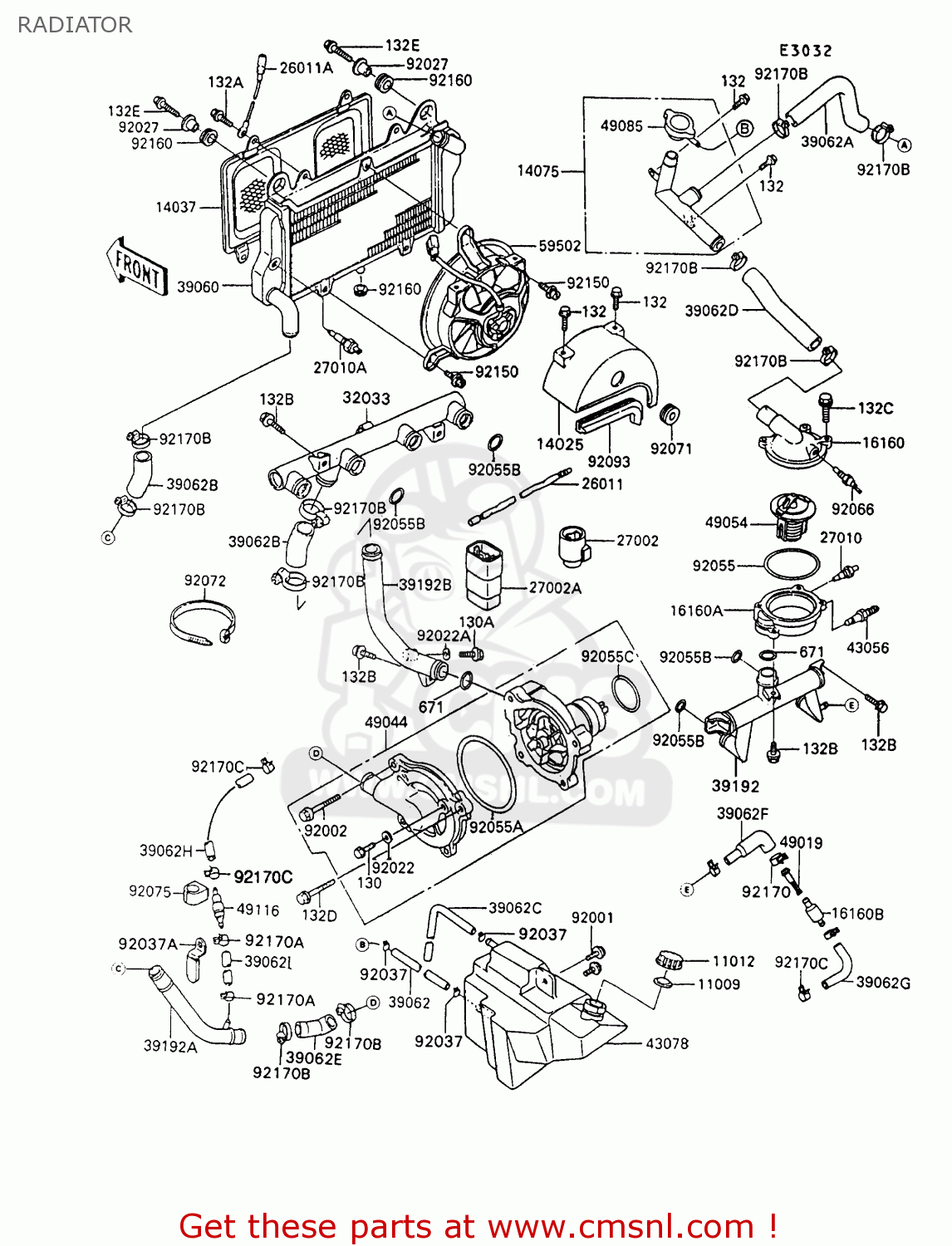

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

14025

140251892
ref: 14025

COVER,FAN

€ 111.00

14037

140371063
ref: 14037

SCREEN,RADIATOR

€ 62.50

14075

140751055
ref: 14075

CAP-ASSY,RADIATOR

€ 160.00

16160

161601067
ref: 16160

BODY,THERMOSTAT,UPP

€ 52.00

16160A

161601068
ref: 16160A

BODY,THERMOSTAT,LWR

€ 63.50

16160B

161601151
ref: 16160B

BODY,FILTER

€ 6.50

26011

260111204
ref: 26011

WIRE-LEAD,OIL TEMPERA

€ 8.00

26011A

260111282
ref: 26011A

WIRE-LEAD

€ 7.50

27002

270021054
ref: 27002

RELAY-ASSY

€ 31.50

27002A

270021055
ref: 27002A

RELAY-ASSY

€ 53.00

27010

270101036
ref: 27010

SWITCH,FAN

€ 75.00

27010A

270101167
ref: 27010A

SWITCH,FAN

€ 108.50

32033

320331262
ref: 32033

PIPE

€ 124.50

39060

390601059
ref: 39060

RADIATOR-ASSY

€ 718.00

39062

390621069
ref: 39062

HOSE-COOLING,5.5X10.5

€ 25.00

39062A

390621070
ref: 39062A

HOSE-COOLING

€ 23.50

39062B

390621072
ref: 39062B

HOSE-COOLING

€ 14.00

39062C

390621075
ref: 39062C

HOSE-COOLING

€ 17.50

39062D

390621091
ref: 39062D

HOSE-COOLING

€ 25.50

39062E

390621092
ref: 39062E

HOSE-COOLING

€ 14.00

39062F

390621310
ref: 39062F

HOSE-COOLING,HEAD PIP

€ 9.00

39062G

390621344
ref: 39062G

HOSE-COOLING

€ 5.50

39062H

390621382
ref: 39062H

HOSE-COOLING,VALVE-PU

€ 4.00

39062I

390621420
ref: 39062I

HOSE-COOLING,VALVE-PU

€ 6.00

39192

391921003
ref: 39192

PIPE-WATER

€ 107.00

39192A

391921013
ref: 39192A

PIPE-WATER

€ 43.50

39192B

391921028
ref: 39192B

PIPE-WATER

€ 98.00

43056

43056003
ref: 43056

BREATHER-BRAKE

€ 16.50

43078

430781053
ref: 43078

RESERVOIR

€ 66.00

49019

490191068
ref: 49019

FILTER-FUEL

€ 4.00

49044

490441058
ref: 49044

PUMP-WATER

€ 259.00

49054

490541051
ref: 49054

THERMOSTAT

€ 44.50

49085

490851054
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

49116

491161081
ref: 49116

VALVE-ASSY

€ 85.00

59502

595021053
ref: 59502

FAN-ASSY

€ 655.00

92001

920011516
ref: 92001

BOLT,W/WASHER,6X12

€ 3.00

92002

920021392
ref: 92002

BOLT,6X22

€ 3.00

92022

920221976
ref: 92022

WASHER,6.2X6.2X1.0

€ 4.00

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130J0610
ref: 130A

BOLT-FLANGED

€ 1.50

132

132J0608
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0610
ref: 132A

BOLT-FLANGED-SMALL,6X

€ 1.50

132B

132J0612
ref: 132B

BOLT-FLANGED-SMALL

€ 2.50

132C

132J0620
ref: 132C

BOLT-FLANGED-SMALL

€ 2.00

132D

132J0640
ref: 132D

BOLT-FLANGED-SMALL

€ 3.00

132E

132J0825
ref: 132E

BOLT-FLANGED-SMALL

€ 2.50

671

671B2525
ref: 671

O RING,25MM

€ 3.00

92022A

92022304
ref: 92022A

WASHER,PLAIN

€ 2.50

92027

920271134
ref: 92027

COLLAR,FUEL TANK FITT

€ 7.00

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92037A

920371997
ref: 92037A

CLAMP

€ 3.00

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92055A

920551271
ref: 92055A

RING-O,WATER PUMP

€ 7.00

92055B

920551282
ref: 92055B

RING-O

€ 3.00

92055C

920551424
ref: 92055C

RING-O,33.2X2.4

€ 4.00

92066

920661183
ref: 92066

PLUG,SENSOR WATER

€ 38.00

92071

920711116
ref: 92071

GROMMET

€ 3.50

92072

920721197
ref: 92072

BAND

€ 5.00

92075

920751729
ref: 92075

DAMPER,CARRIER

€ 4.50

92093

920931168
ref: 92093

SEAL,FAN COVER

€ 15.00

92150

921501187
ref: 92150

BOLT,6X16

€ 2.50

92160

921601007
ref: 92160

DAMPER

€ 3.50

92170

921701118
ref: 92170

CLAMP

€ 5.00

92170A

921701201
ref: 92170A

CLAMP

€ 3.50

92170B

921701284
ref: 92170B

CLAMP,CABLE

€ 7.50

92170C

921702042
ref: 92170C

CLAMP

€ 1.00

all assemblies
