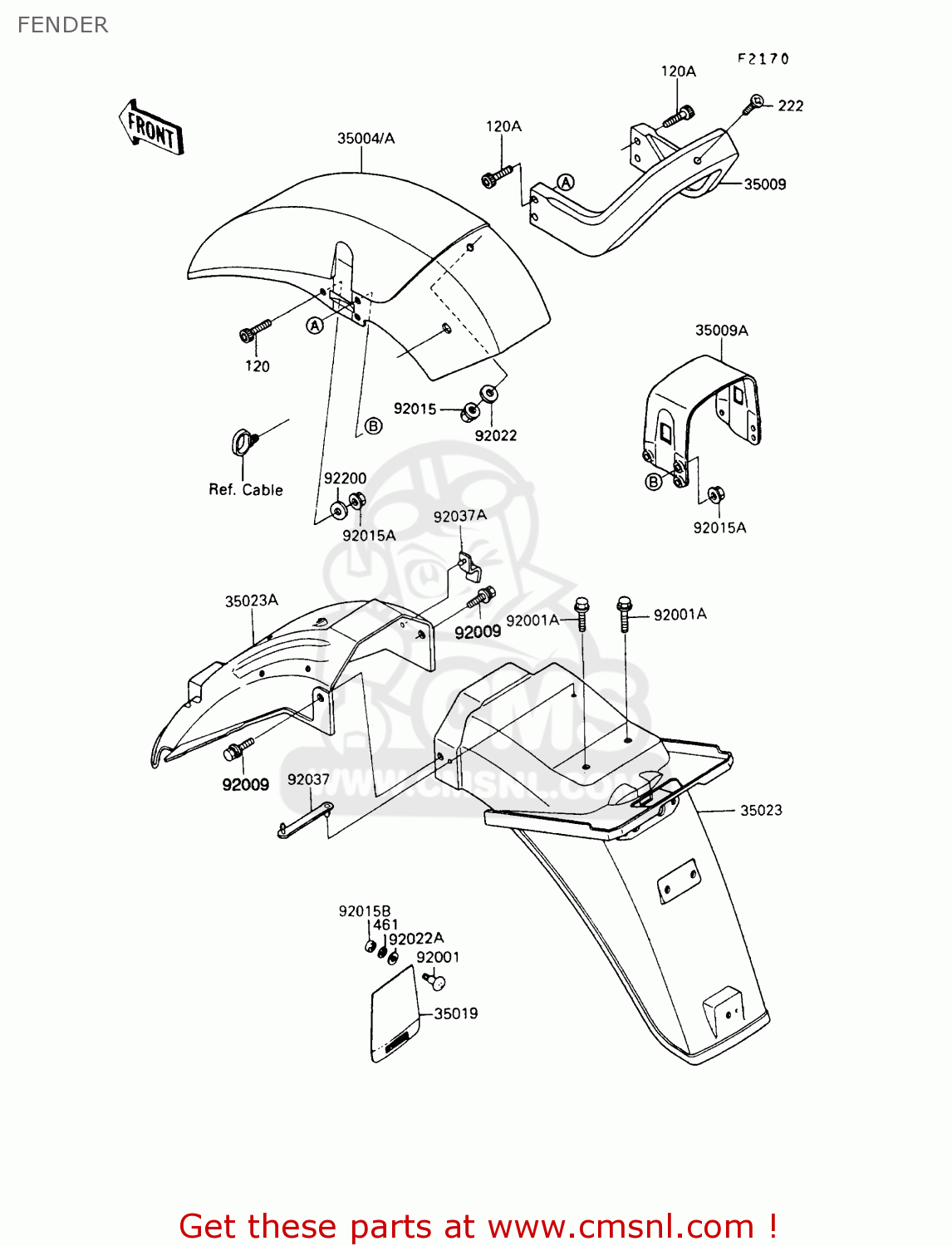

FENDER

ref

part #

description

quantity

120

120P0630
ref: 120

BOLT,SOCKET,6X30

€ 4.50

120A

120P0635
ref: 120A

BOLT,SOCKET,6X35

€ 1.50

222

222B0620
ref: 222

SCREW-OVL CNTSNK,6X20

€ 2.50

461

461L0500
ref: 461

WASHER-SPRING

€ 0.50

35004

350041263M1
ref: 35004

FENDER-FRONT,BLACK/RE

€ 154.50

35004A

350041263P3
ref: 35004A

FENDER-FRONT,BLACK/EB

€ 159.50

35009

350091054
ref: 35009

BRACE,FENDER

€ 74.50

35009A

350091084
ref: 35009A

BRACE

€ 59.00

35019

350191005
ref: 35019

FLAP,FENDER,RR

€ 15.50

35023

350231325
ref: 35023

FENDER-REAR,RR

€ 57.00

35023A

350231326
ref: 35023A

FENDER-REAR,FR

€ 63.00

92001

92001134
ref: 92001

BOLT,5X12

€ 3.00

92001A

920011870
ref: 92001A

BOLT,6X25

€ 2.50

92009

920091181
ref: 92009

SCREW,6X18

€ 2.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151365
ref: 92015A

NUT,6MM

€ 3.00

92015B

920151446
ref: 92015B

NUT,5MM

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92022A

920221581
ref: 92022A

WASHER,5.5X20X1.2

€ 1.50

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371532
ref: 92037A

CLAMP,HARNESS

€ 3.00

92200

922001013
ref: 92200

WASHER,10.3X20X1

€ 3.00

all assemblies
