COWLING LOWERS
ZX900A10 GPZ900R 1993 NETHERLANDS FG

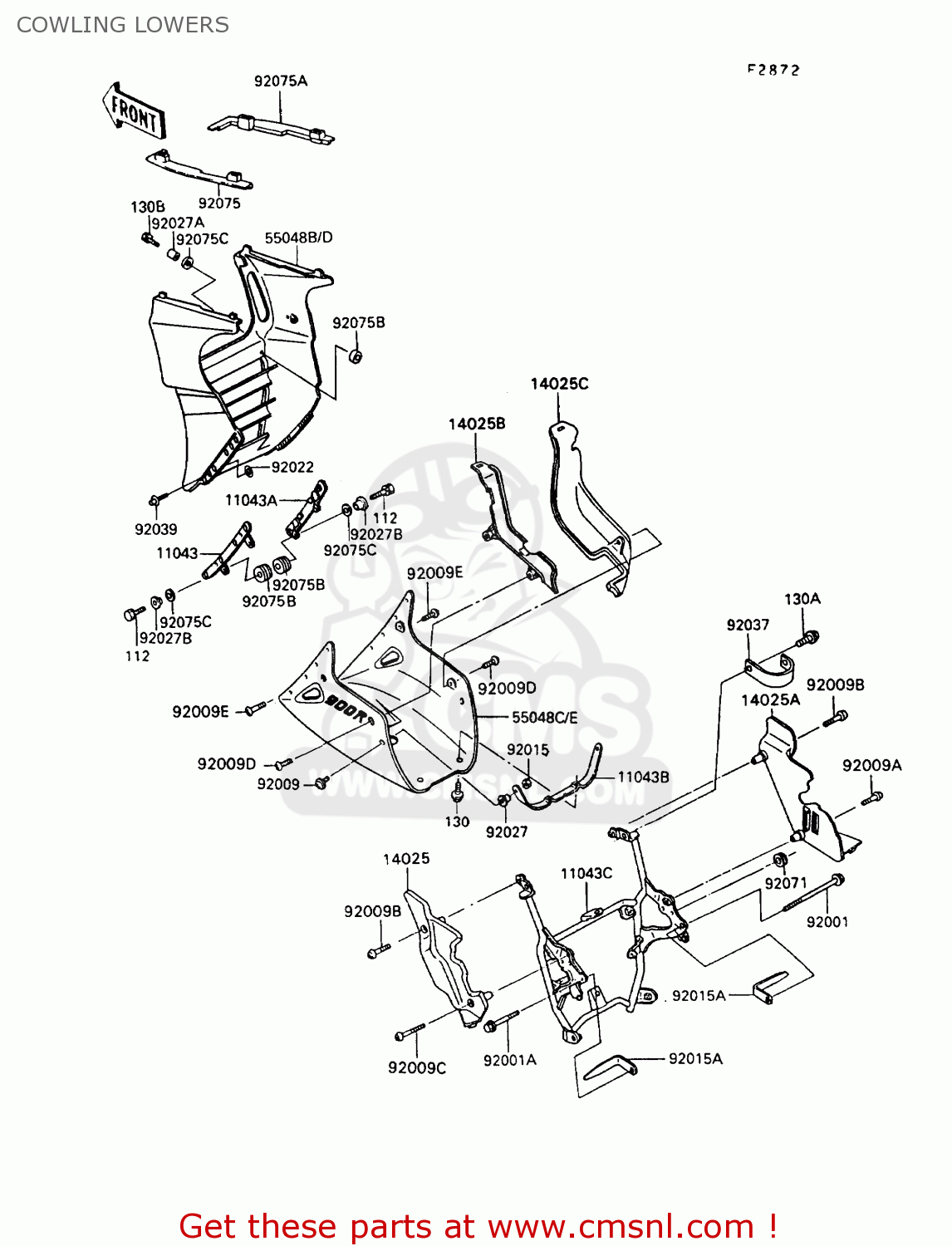

Cowling lowers diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
COWLING LOWERS ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
11043
110431630
ref: 11043
BRACKET,CENTER COWLIN
€ 13.00
11043A
110431631
ref: 11043A
BRACKET,CENTER COWLIN
€ 13.00
11043B
110431632
ref: 11043B
BRACKET,COWLING,LWR
€ 33.50
11043C
110431873
ref: 11043C
BRACKET,COWLING,LWR,C
€ 269.50
14025
140251893
ref: 14025
COVER,COWLING BRACKET
€ 28.00
14025A
140251894
ref: 14025A
COVER
€ 28.00
14025B
140251896
ref: 14025B
COVER,COWLING,LWR,LH
€ 41.00
14025C
140251897
ref: 14025C
COVER,COWLING,LWR,RH
€ 36.50
112
112B0625
ref: 112
BOLT-UPSET,6X25
€ 4.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
130B
130J0812
ref: 130B
BOLT-FLANGED
€ 0.50
55048B
550485360J3
ref: 55048B
COWLING.,CNT,EBONY/RE
€ 444.00
55048C
550485361B1
ref: 55048C
COWLING.,LWR,F.RED
€ 279.50
55048D
550485408T4
ref: 55048D
COWLING.,CNT,EBONY/GR
€ 431.50
55048E
550485409H8
ref: 55048E
COWLING.,LWR,EBONY
€ 302.00
92001
920011617
ref: 92001
BOLT,FLANGED,10X60
€ 6.50
92001A
920011844
ref: 92001A
BOLT,FLANGED,10X41,BL
€ 5.00
92009
920091256
ref: 92009
SCREW,6X22,BLACK
€ 1.50
92009A
920091351
ref: 92009A
SCREW,6X35
€ 2.50
92009B
920091352
ref: 92009B
SCREW,6X40
€ 3.50
92009C
920091353
ref: 92009C
SCREW,6X55
€ 3.50
92009D
920091654
ref: 92009D
SCREW
€ 0.50
92009E
920091663
ref: 92009E
SCREW
€ 2.50
92015
920151339
ref: 92015
NUT,LOCK,FLANGED,6MM
€ 1.00
92015A
920151478
ref: 92015A
NUT
€ 9.00
92022
920221516
ref: 92022
WASHER,3.3X8X0.5
€ 1.50
92027
920271166
ref: 92027
COLLAR,FRONT FENDER
€ 4.00
92027A
920271450
ref: 92027A
COLLAR,L=13.1,BLACK
€ 4.00
92027B
92027251
ref: 92027B
COLLAR,L=13.1
€ 1.00
92037
92037113
ref: 92037
CLAMP
€ 4.00
92039
920391041
ref: 92039
RIVET
€ 2.50
92071
92071024
ref: 92071
GROMMET
€ 3.00
92075
920751645
ref: 92075
DAMPER,COWLING,LH
€ 14.00
92075A
920751646
ref: 92075A
DAMPER,COWLING,RH
€ 14.50
92075B
92075174
ref: 92075B
DAMPER,MALE
€ 3.00
92075C
92075175
ref: 92075C
DAMPER,FEMALE
€ 2.50
