BALANCER
ZX900A10 GPZ900R 1993 NETHERLANDS FG

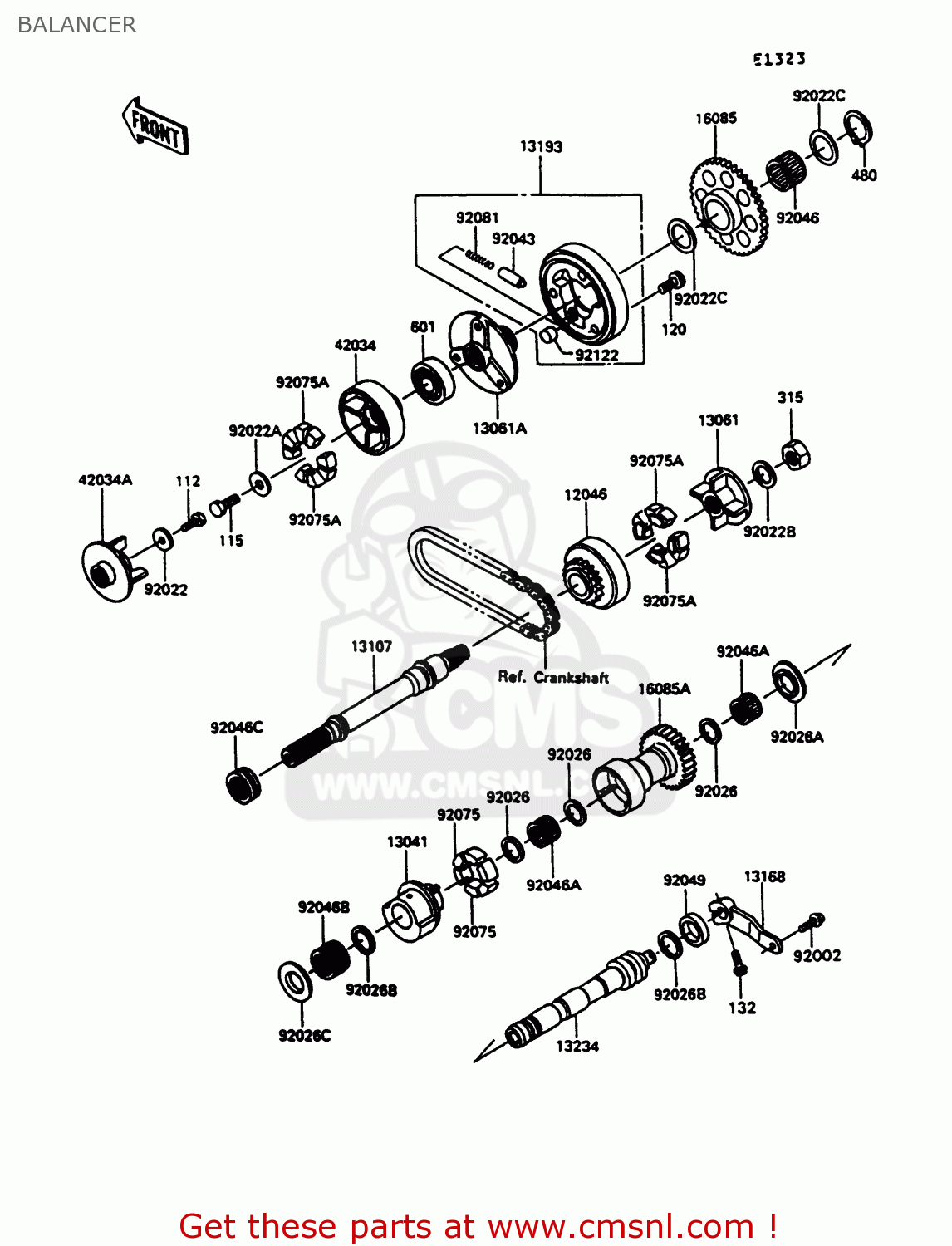

Balancer diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
BALANCER ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
112
112G0616
ref: 112
BOLT UPSET,6X16
€ 1.00
115
115G0820
ref: 115
BOLT,8X20
€ 2.00
120
120P0812
ref: 120
BOLT,SOCKET,8X12
€ 2.50
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
315
315G1600
ref: 315
NUT-HEX-FINE
€ 2.50
480
480J2500
ref: 480
CIRCLIP-TYPE-C,25MM
€ 1.00
601
601A6203
ref: 601
BEARING-BALL,#6203
€ 10.50
12046
120461068
ref: 12046
SPROCKET,GENERATOR
€ 76.00
13041
130411054
ref: 13041
BALANCER
€ 128.00
13061
130611111
ref: 13061
BOSS,SPROCKET
€ 45.00
13061A
130611112
ref: 13061A
BOSS,COUPLING
€ 40.00
13107
131071108
ref: 13107
SHAFT
€ 175.50
13168
131681236
ref: 13168
LEVER,BALANCER
€ 20.00
13193
131931052
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 174.00
13234
132341072
ref: 13234
SHAFT-COMP,BALNCER
€ 179.00
16085
160851118
ref: 16085
GEAR,ONEWAY CLUTCH
€ 130.00
16085A
160851242
ref: 16085A
GEAR,BALANCER
€ 190.00
42034
420341055
ref: 42034
COUPLING
€ 64.00
42034A
420341056
ref: 42034A
COUPLING
€ 58.00
92002
920021439
ref: 92002
BOLT,6X16
€ 3.00
92022
920221517
ref: 92022
WASHER,6X19.5X2
€ 1.50
92022A
920221518
ref: 92022A
WASHER,8X22X3
€ 2.50
92022B
920221519
ref: 92022B
WASHER,16X26X2
€ 3.00
92022C
92022225
ref: 92022C
WASHER-THRUST
€ 3.50
92026
920261213
ref: 92026
SPACER,21.3X24.3X1.5
€ 4.00
92026A
920261214
ref: 92026A
SPACER,BALANCER
€ 29.50
92026B
920261223
ref: 92026B
SPACER,21.3X26X1
€ 4.50
92026C
920261271
ref: 92026C
SPACER
€ 29.50
92043
92043087
ref: 92043
PIN
€ 8.00
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
€ 24.50
92046A
920461105
ref: 92046A
BEARING-NEEDLE,K21X25
€ 23.50
92046B
920461108
ref: 92046B
BEARING-NEEDLE,K21X27
€ 20.50
92046C
920461109
ref: 92046C
BEARING-NEEDLE,RNA490
€ 48.50
92049
920491174
ref: 92049
SEAL-OIL,S192705
€ 6.00
92075
920751590
ref: 92075
DAMPER,BALANCER
€ 3.50
92075A
920751790
ref: 92075A
DAMPER,COUPLING
€ 6.50
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
€ 7.00
