CARBURETOR
ZX900A10 GPZ900R 1993 NETHERLANDS FG

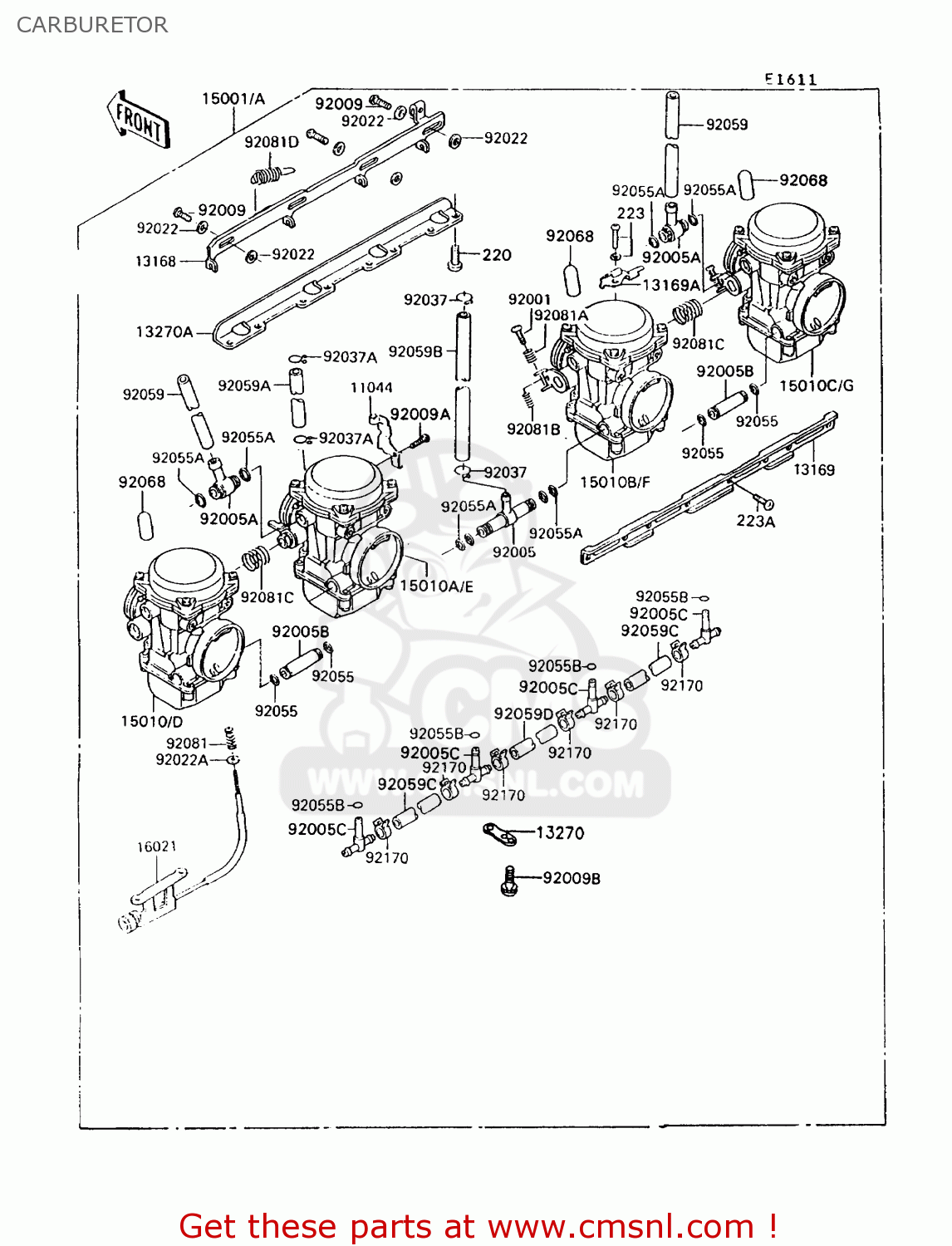

Carburetor diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
CARBURETOR ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
11044
110441546
ref: 11044
BRACKET,THROTTLE CABL
€ 41.00
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691869
ref: 13169
PLATE,CARBURETOR STAY
€ 80.50
13169A
131691871
ref: 13169A
PLATE,STARTER CABLE
€ 16.00
13270
132701063
ref: 13270
PLATE,JOINT STAY
€ 21.00
13270A
132701070
ref: 13270A
PLATE,CARBURETOR STAY
€ 22.00
15001
150011848
ref: 15001
NL
CARBURETOR-ASSY
€ 2,387.00
15001A
150011849
ref: 15001A
FG
CARBURETOR-ASSY
€ 725.50
15010
150101445
ref: 15010
NL
CARBURETOR,LH,OUTSIDE
€ 720.50
15010A
150101446
ref: 15010A
NL
CARBURETOR,LH,INSIDE
€ 720.50
15010B
150101447
ref: 15010B
NL
CARBURETOR,RH,INSIDE
€ 942.00
15010C
150101448
ref: 15010C
NL
CARBURETOR,RH,OUTSIDE
€ 720.50
15010D
150101449
ref: 15010D
FG
CARBURETOR,LH,OUTSIDE
€ 485.00
15010E
150101450
ref: 15010E
FG
CARBURETOR,LH,INSIDE
€ 670.00
15010F
150101451
ref: 15010F
FG
CARBURETOR,RH,INSIDE
€ 485.00
15010G
150101452
ref: 15010G
FG
CARBURETOR,RH,OUTSIDE
€ 485.00
16021
160211101
ref: 16021
SCREW-THROTTLE STOP
€ 83.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051125
ref: 92005A
FITTING,T-TYPE
€ 18.00
92005B
920051157
ref: 92005B
FITTING
€ 25.00
92005C
920051235
ref: 92005C
FITTING
€ 8.50
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091705
ref: 92009B
SCREW 4X8
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371477
ref: 92037A
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92055B
920551427
ref: 92055B
RING-O,4.5X1.5
€ 3.00
92059
920591376
ref: 92059
TUBE,6.5X9.5X290
€ 20.50
92059A
920591377
ref: 92059A
TUBE,5X9X180
€ 16.50
92059B
920591492
ref: 92059B
TUBE,7.3X12.5X260
€ 25.00
92059C
920591976
ref: 92059C
TUBE,4X10X59
€ 9.00
92059D
920591977
ref: 92059D
TUBE,4X10X70
€ 9.00
92068
92068006
ref: 92068
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811762
ref: 92081D
SPRING,STARTER LEVER
€ 14.00
92170
921701054
ref: 92170
CLAMP,TUBE
€ 5.00
