FRONT CALIPER
ZX900A10 GPZ900R 1993 NETHERLANDS FG

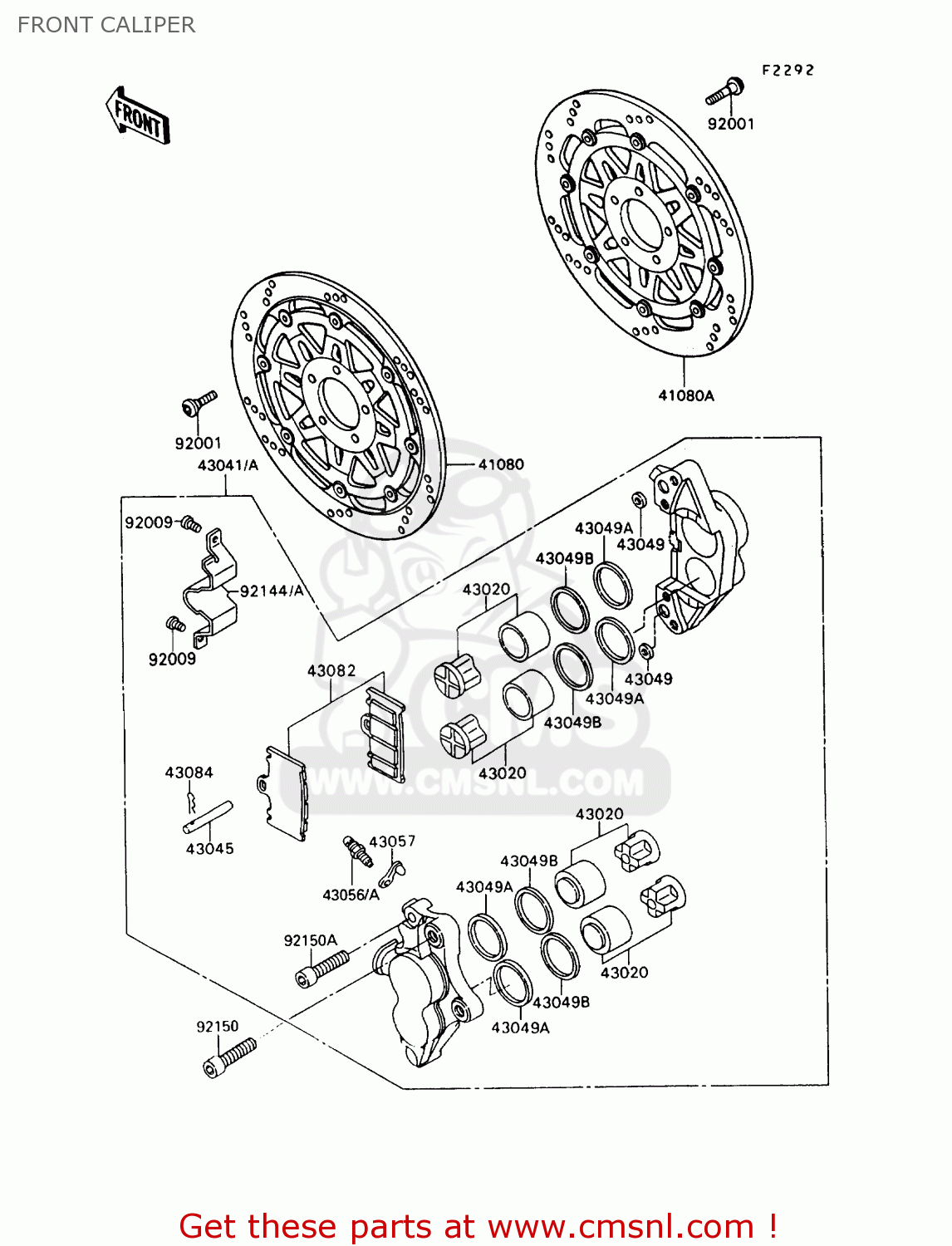

Front caliper diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
FRONT CALIPER ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
41080
410801316CP
ref: 41080
DISC,FR,LH,SILVER NO.
€ 235.50
41080A
410801317CP
ref: 41080A
DISC,FR,RH,SILVER NO.
€ 253.00
43020
430201092
ref: 43020
PISTON-COMP-BRAKE
€ 52.00
43041
430411390GN
ref: 43041
CALIPER-ASSY,FR,LH,SI
€ 654.00
43041A
430411391GN
ref: 43041A
CALIPER-ASSY,FR,RH,SI
€ 620.50
43045
43045007
ref: 43045
PIN CALIPER
€ 4.00
43049
430491004
ref: 43049
RING SEAL6.5X11.5X2.2
€ 4.00
43049A
430491067
ref: 43049A
PACKING (NAS)
€ 7.50
43049B
430491068
ref: 43049B
PACKING (NAS)
€ 6.50
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821110
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 42.50
43084
43084003
ref: 43084
CLIP, PAD
€ 2.50
92001
920011951
ref: 92001
BOLT,SOCKET,8X30
€ 3.00
92009
920091569
ref: 92009
SCREW
€ 1.50
92144
921441399
ref: 92144
SPRING
€ 20.00
92144A
921441400
ref: 92144A
SPRING
€ 19.50
92150
921501261
ref: 92150
BOLT,SOCKET,10X37
€ 7.50
92150A
921501272
ref: 92150A
BOLT
€ 4.00
