SWING ARM
ZX900A10 GPZ900R 1993 NETHERLANDS FG

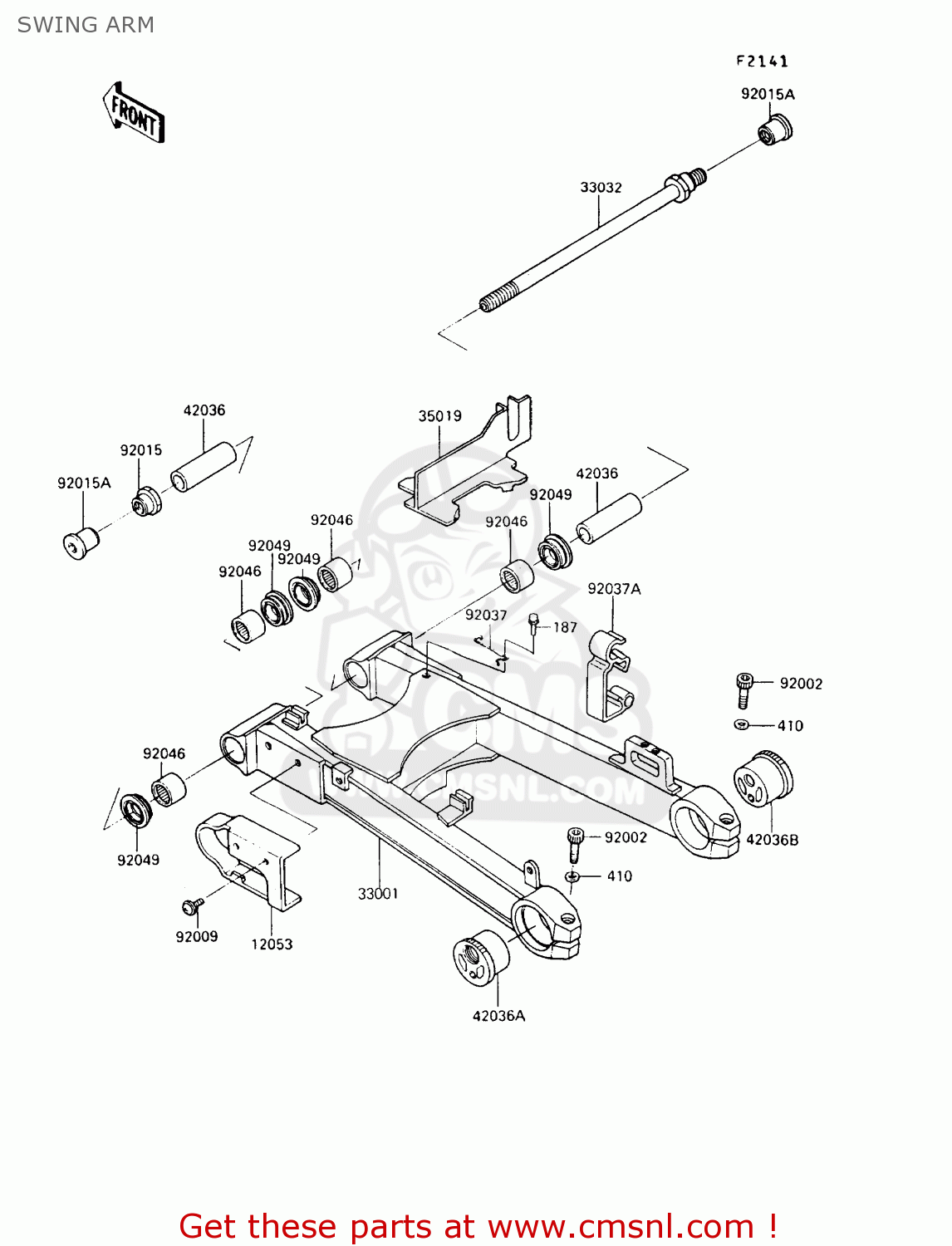

Swing arm diagram ZX900A10 GPZ900R 1993 NETHERLANDS FG
SWING ARM ZX900A10 GPZ900R 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
187
187D0610
ref: 187
BOLT-UPSET-WSP
€ 2.50
410
410E1000
ref: 410
W-PLAIN-S
€ 0.50
12053
120531119
ref: 12053
GUIDE-CHAIN
€ 53.50
33001
330011266CE
ref: 33001
ARM-COMP-SWING,SILVER
€ 1,113.00
33032
330321105
ref: 33032
SHAFT-SWING ARM
€ 54.00
35019
350191124
ref: 35019
FLAP
€ 16.50
42036
420361114
ref: 42036
SLEEVE,SWING ARM
€ 20.50
42036A
420361147
ref: 42036A
SLEEVE,REAR AXLE,LH
€ 78.00
42036B
420361148
ref: 42036B
SLEEVE,REAR AXLE,RH
€ 78.00
92002
920021452
ref: 92002
BOLT
€ 4.00
92009
920091402
ref: 92009
SCREW,6X10
€ 1.50
92015
920151333
ref: 92015
NUT,SWING ARM SHAFT
€ 24.00
92015A
920151334
ref: 92015A
NUT,SWING ARM
€ 23.00
92037
920371565
ref: 92037
CLAMP
€ 4.00
92037A
920371758
ref: 92037A
CLAMP,HOSE
€ 6.50
92046
920461035
ref: 92046
920461035
92049
920491166
ref: 92049
SEAL-OIL
€ 7.50
