TAIL LAMP
Z750L4 1984 EUROPE UK FR SD WG

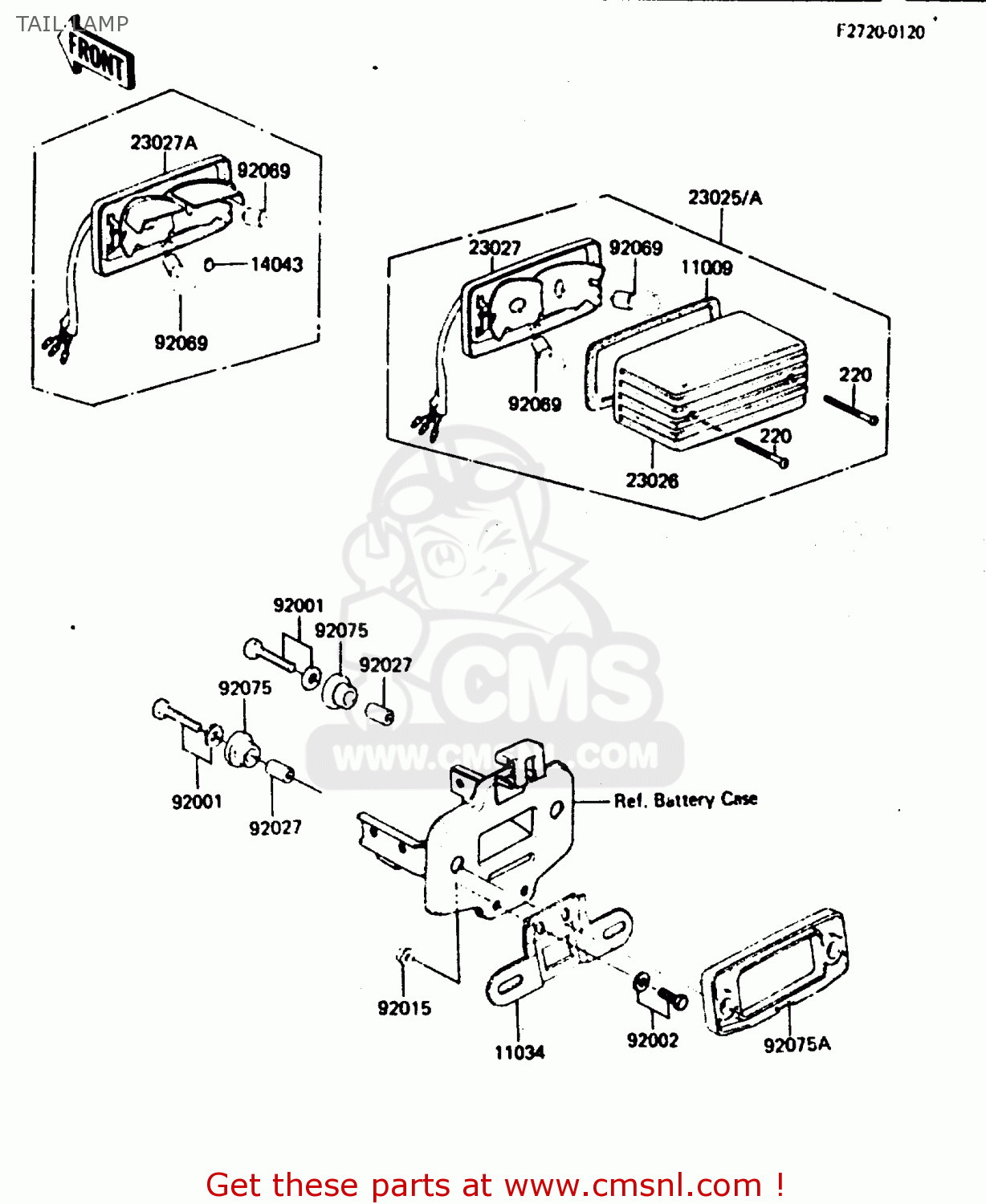

Tail lamp diagram Z750L4 1984 EUROPE UK FR SD WG
TAIL LAMP Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 8.50
11034
110341923
ref: 11034
BRACKET,LICENSE PLATE
€ 13.50
14043
140431004
ref: 14043
WG
FILTER
€ 2.50
23025
230251039
ref: 23025
EU, FR, SD, UK
LAMP-TAIL
€ 175.00
23025A
230251040
ref: 23025A
WG
LAMP-TAIL
€ 175.00
23026
230261017
ref: 23026
LENS,TAIL LAMP
€ 126.00
23027
230271026
ref: 23027
EU, FR, SD, UK
BODY-COMP-TAIL LAMP,B
€ 121.50
23027A
230271027
ref: 23027A
WG
BODY-COMP-TAIL LAMP
€ 175.00
92001
920011775
ref: 92001
BOLT,6X25
€ 2.50
92002
920021260
ref: 92002
BOLT,6X14
€ 0.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92027
920271316
ref: 92027
COLLAR,6.8X10X17.6
€ 6.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92075
920751092
ref: 92075
DAMPER
€ 7.50
92075A
920751282
ref: 92075A
DAMPER,TAIL LAMP
€ 13.00
220
220C0465
ref: 220
SCREW-PAN-CROS
€ 2.50
