CYLINDER HEAD
Z750L4 1984 EUROPE UK FR SD WG

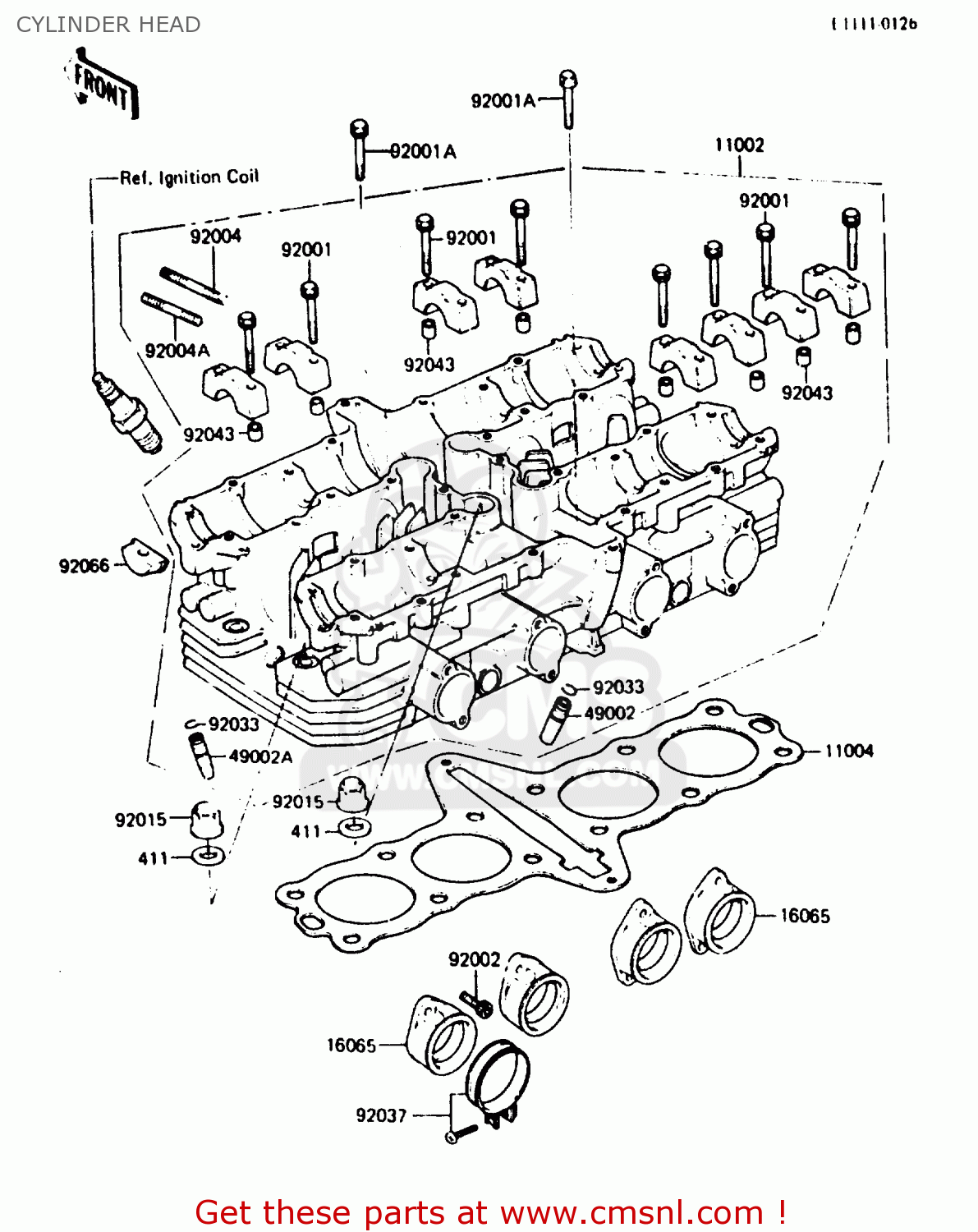

Cylinder head diagram Z750L4 1984 EUROPE UK FR SD WG
CYLINDER HEAD Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
11002
110021184
ref: 11002
HEAD-ASSY-CYLINDER
€ 1,780.00
11004
110041024
ref: 11004
GASKET,CYLINDER HEAD (MCA)
€ 145.50
16065
160651132
ref: 16065
HOLDER-CARBURETOR
€ 19.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92001A
920011445
ref: 92001A
BOLT,FLANGED,8X43
€ 6.00
92002
920021192
ref: 92002
BOLT,SOCKET,6X14
€ 3.00
92004
920041009
ref: 92004
STUD, 8X35
€ 4.00
92004A
920041060
ref: 92004A
STUD,8X28.5
€ 3.00
92015
920151181
ref: 92015
NUT,FLANGED CAP,10MM,
€ 9.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
92037061
ref: 92037
CLAMP
€ 10.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92066
920661111
ref: 92066
PLUG,CAMSHAFT,11.35X1
€ 8.00
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
