HANDLEBAR
Z750L4 1984 EUROPE UK FR SD WG

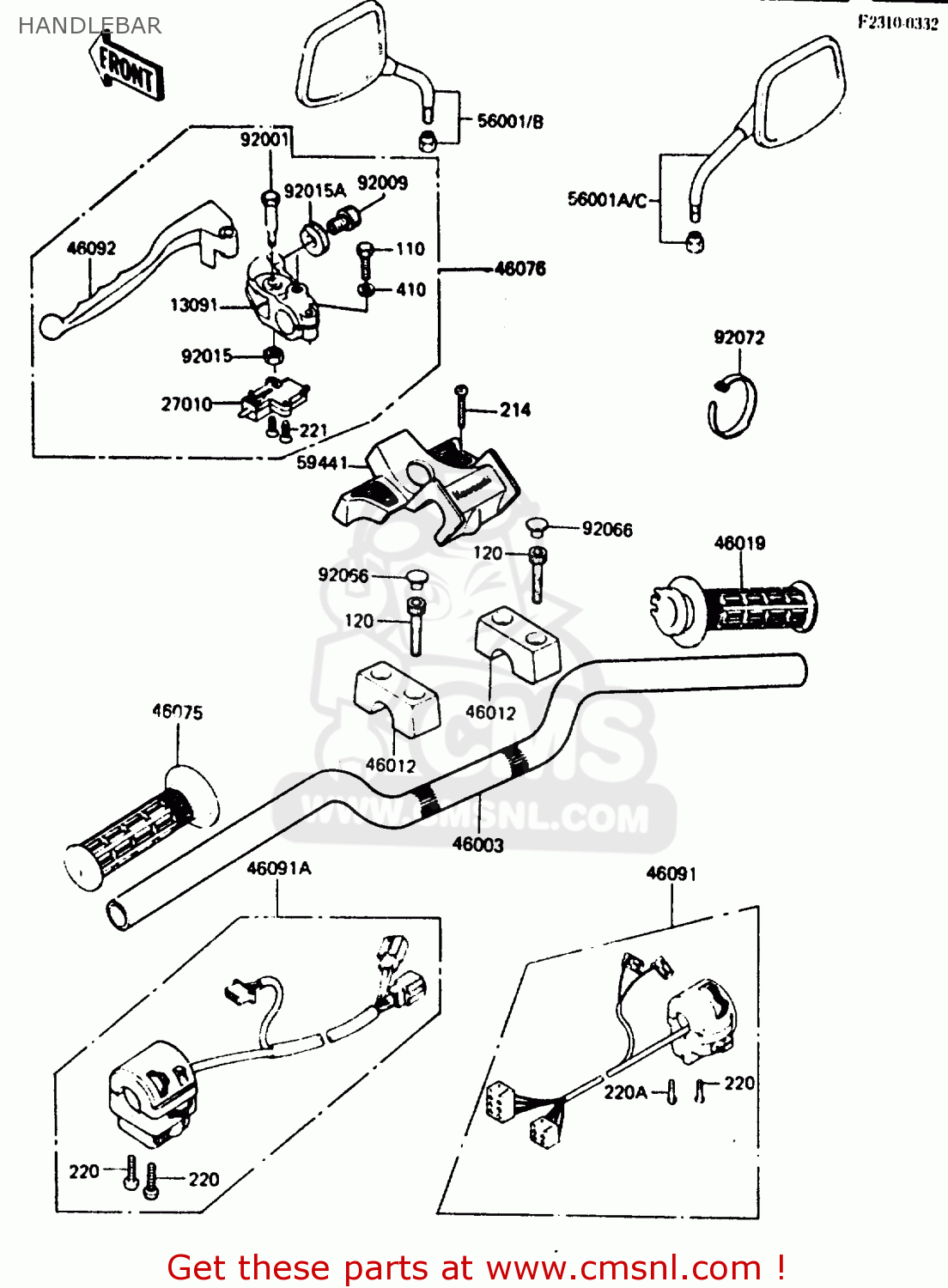

Handlebar diagram Z750L4 1984 EUROPE UK FR SD WG
HANDLEBAR Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
13091
130911272
ref: 13091
HOLDER,CLUTCH LEVER
€ 33.00
27010
270101094
ref: 27010
SWITCH,CLUTCH
€ 20.50
46003
460031122
ref: 46003
HANDLE
€ 103.00
46012
460121027
ref: 46012
HOLDER-HANDLE,UPP
€ 18.50
46019
460191015
ref: 46019
GRIP-ASSY,THROTTLE
€ 28.50
46075
460751022
ref: 46075
GRIP,LH
€ 8.50
46076
460761105
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 61.00
46091
460911215
ref: 46091
HOUSING-ASSY-CNTRL,RH
€ 134.00
46091A
460911315
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 134.00
46092
460921103
ref: 46092
LEVER-GRIP,CLUTCH
€ 14.00
56001
560011105
ref: 56001
FR, UK
MIRROR-ASSY,LH
€ 61.50
56001A
560011106
ref: 56001A
FR, UK
MIRROR-ASSY,RH
€ 61.50
56001B
560011125
ref: 56001B
EU, SD, WG
MIRROR-ASSY,LH
€ 61.50
56001C
560011126
ref: 56001C
EU, SD, WG
MIRROR-ASSY,RH
€ 61.50
59441
594411011
ref: 59441
COVER-HANDLE
€ 40.00
92001
920011548
ref: 92001
BOLT,CLUTCH LEVER,BLA
€ 5.50
92009
920091134
ref: 92009
SCREW,CBL ADJUST,8MM
€ 10.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151197
ref: 92015A
NUT,CABLE ADJUST LOCK
€ 6.50
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
€ 3.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
110
110C0622
ref: 110
BOLT,6X22,BLACK
€ 3.00
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
214
214C0416
ref: 214
SCREW-PAN+-
€ 0.50
220
220B0535
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0540
ref: 220A
SCREW-PAN-CROS
€ 2.00
221
221C0316
ref: 221
SCREW-CSK-CROS
€ 2.50
410
410F0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
