REAR CALIPER
Z750L4 1984 EUROPE UK FR SD WG

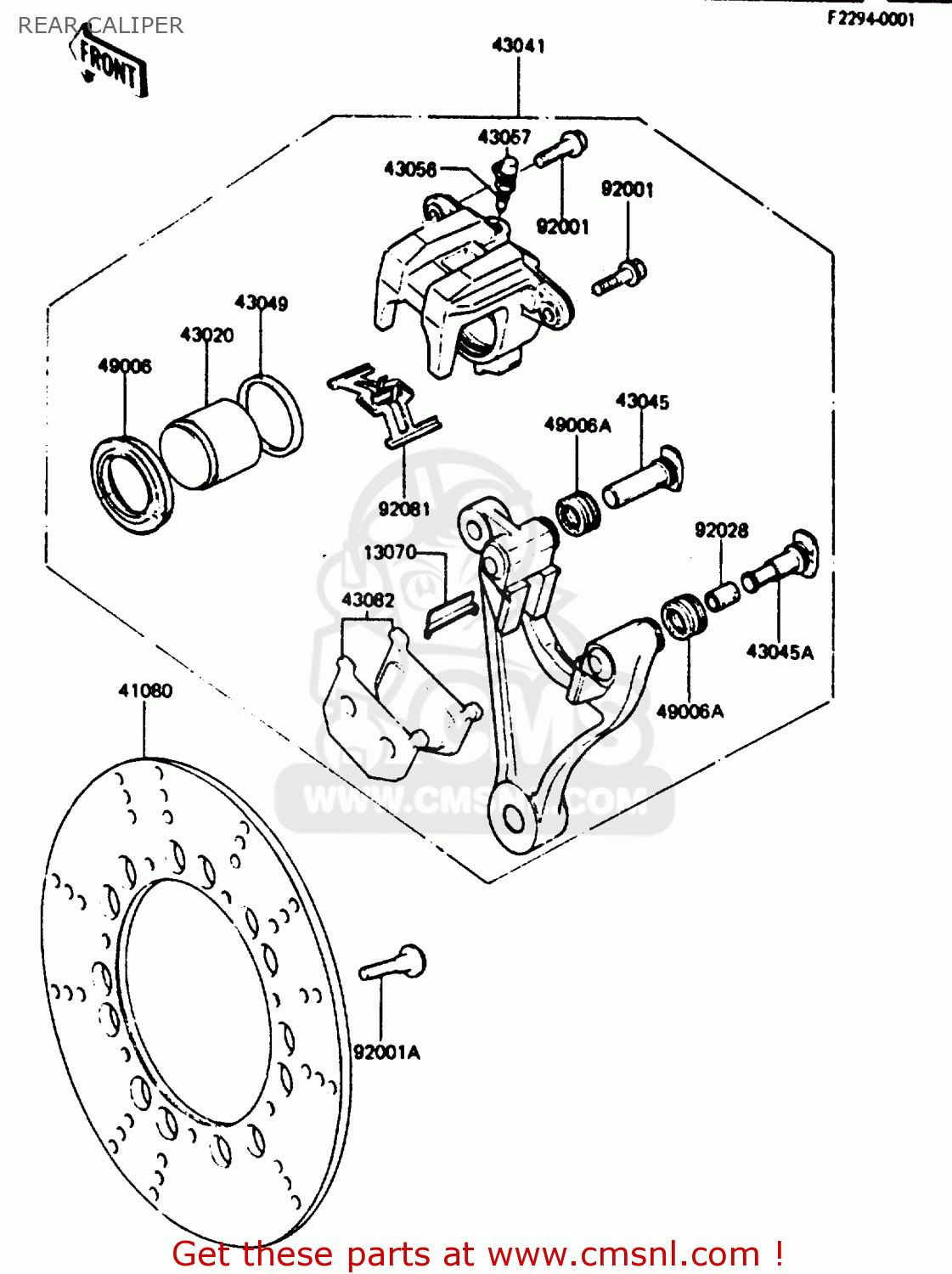

Rear caliper diagram Z750L4 1984 EUROPE UK FR SD WG
REAR CALIPER Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
13070
130701026
ref: 13070
GUIDE,PAD
€ 6.50
41080
410801031
ref: 41080
DISC PLATE,RR BRAKE
€ 213.00
43020
430201017
ref: 43020
PISTON,CALIPER
€ 45.00
43041
430411110
ref: 43041
CALIPER-ASSY,RR
€ 394.50
43045
430451007
ref: 43045
SHAFT-CALIPER
€ 15.00
43045A
430451008
ref: 43045A
SHAFT-CALIPER
€ 15.00
43049
43049002A
ref: 43049
PISTON SEAL RING
€ 9.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821025
ref: 43082
PAD-ASSY,BRAKE (NAS)
€ 42.50
49006
490061043A
ref: 49006
DUST SEAL,PISTON
€ 9.00
49006A
490061044
ref: 49006A
BOOT,SHAFT
€ 5.00
92001
920011510
ref: 92001
BOLT,FLANGED,8X25,BLA
€ 5.00
92001A
920011951
ref: 92001A
BOLT,SOCKET,8X30
€ 3.00
92028
920281090
ref: 92028
BUSHING,7.8X11X15.7
€ 5.00
92081
920811229
ref: 92081
SPRING,PAD
€ 13.50
