FRONT FORK
Z750L4 1984 EUROPE UK FR SD WG

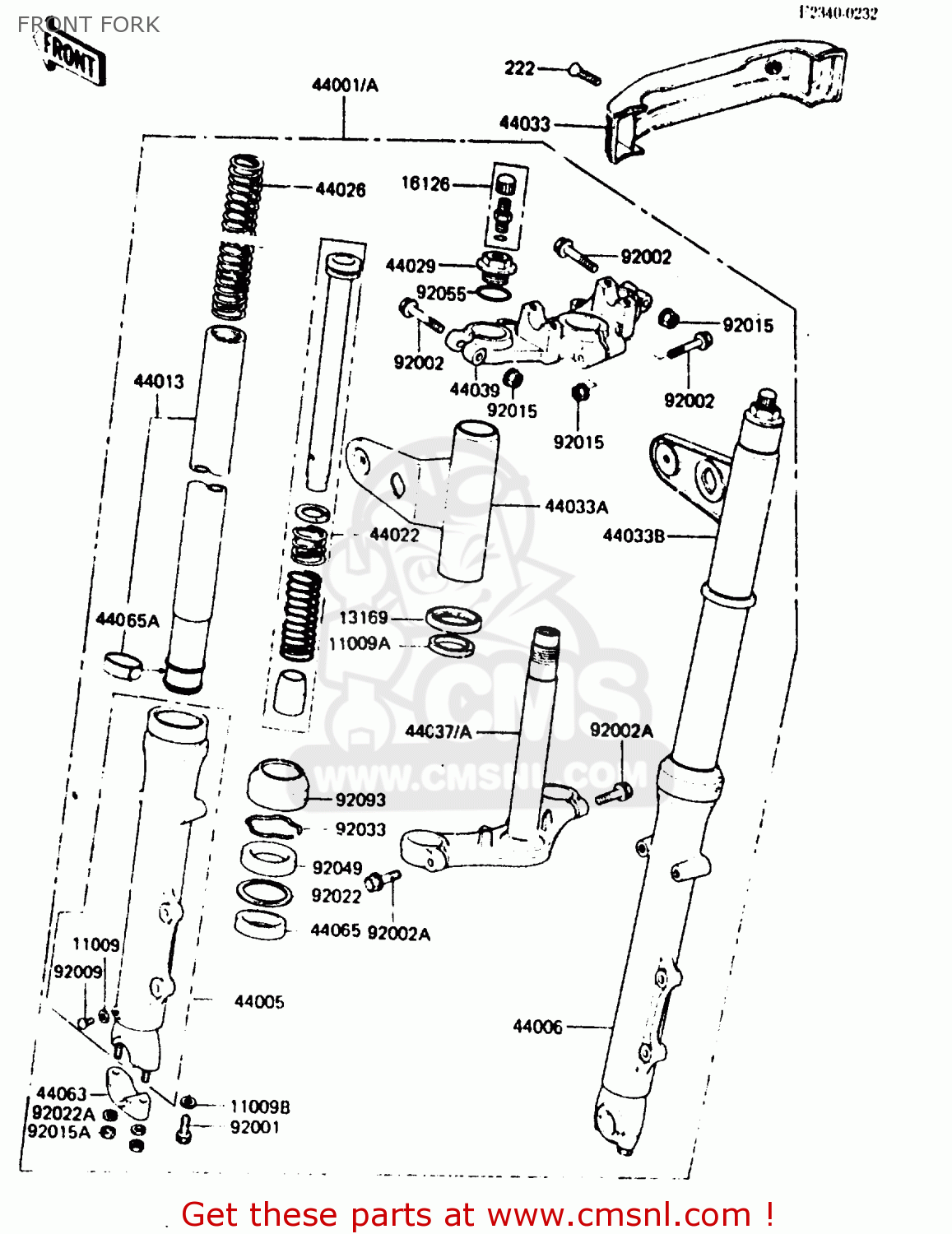

Front fork diagram Z750L4 1984 EUROPE UK FR SD WG
FRONT FORK Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
11009
44045002
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009A
44045038
ref: 11009A
GASKET,FORK COVER (NAS)
€ 3.50
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
13169
131691849
ref: 13169
PLATE,FORK COVER,LWR
€ 12.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011442
ref: 44001
EU, FR, UK
FORK-FRONT
€ 1,212.50
44001A
440011443
ref: 44001A
SD, WG
FORK-FRONT
€ 1,212.50
44005
440051093
ref: 44005
PIPE-LEFT FORK OUTER
€ 173.00
44006
440061093
ref: 44006
PIPE-RIGHT FORK OUTER
€ 285.00
44013
440131112
ref: 44013
PIPE-FORK INNER
€ 144.00
44022
440221079
ref: 44022
CYLINDER-FORK
€ 62.00
44026
440261188
ref: 44026
SPRING-FRONT FORK
€ 48.50
44029
440291039
ref: 44029
SEAT-FORK SPRING
€ 27.00
44033
440331084
ref: 44033
COVER-FORK
€ 28.00
44033A
440331131
ref: 44033A
COVER-FORK,LH,F.BLACK
€ 68.50
44033B
440331132
ref: 44033B
COVER-FORK,RH,F.BLACK
€ 68.50
44037
440371089
ref: 44037
EU, FR, UK
HOLDER-FORK UNDER
€ 206.00
44037A
440371090
ref: 44037A
SD, WG
HOLDER-FORK UNDER
€ 158.50
44039
440391074
ref: 44039
HOLDER-FORK UPPER
€ 197.50
44063
440631006
ref: 44063
HOLDER-FRONT AXLE
€ 25.50
44065
440651016
ref: 44065
BUSHING-FRONT FORK
€ 19.00
44065A
440651059
ref: 44065A
BUSHING-FRONT FORK,IN
€ 13.00
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92002
920021158
ref: 92002
BOLT,FLANGED,8X55
€ 6.00
92002A
920021301
ref: 92002A
BOLT
€ 8.50
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92015
920151408
ref: 92015
NUT,FLANGED,8MM
€ 1.00
92015A
920151439
ref: 92015A
NUT,U,8MM
€ 5.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92022A
920221552
ref: 92022A
WASHER,SPRING,8MM
€ 2.50
92033
920331100
ref: 92033
RING-SNAP,FORK OIL SE
€ 9.50
92049
920491101
ref: 92049
SEAL OIL FRONT FORK
€ 16.50
92055
44046017
ref: 92055
'O' RING-FORK TOP
€ 5.00
92093
920931037
ref: 92093
SEAL,FORK
€ 15.00
222
222C0518
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
