CHANGE DRUM/SHIFT FORK
Z750L4 1984 EUROPE UK FR SD WG

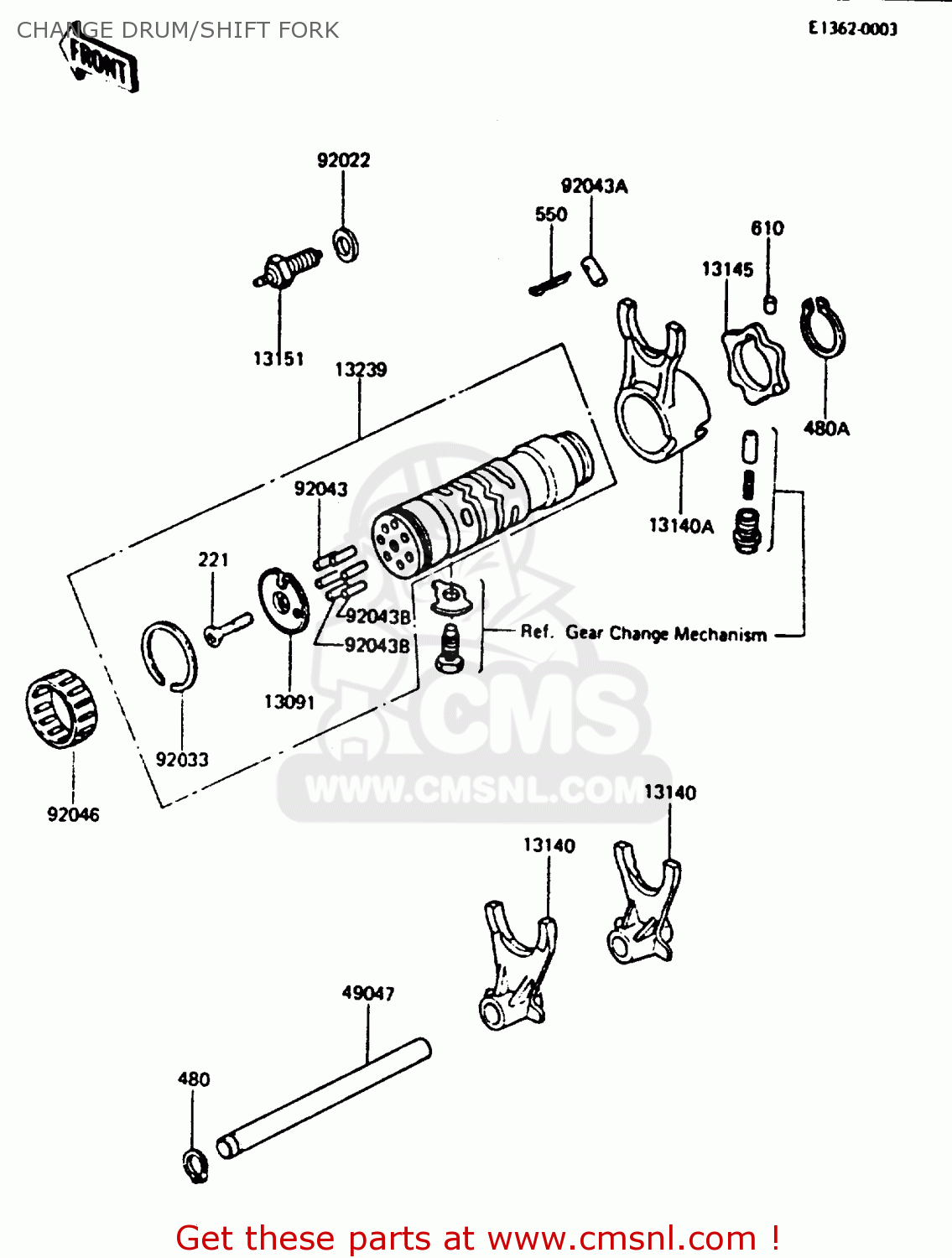

Change drum/shift fork diagram Z750L4 1984 EUROPE UK FR SD WG
CHANGE DRUM/SHIFT FORK Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
13091
130911104
ref: 13091
HOLDER,CHANGE DRUM PI
€ 16.50
13140
131401008
ref: 13140
FORK-SHIFT,LOW,2ND&3R
€ 79.00
13140A
131401009
ref: 13140A
FORK-SHIFT,4TH&TOP
€ 79.00
13145
131451001
ref: 13145
CAM-CHANGE DRUM
€ 11.50
13151
131511007
ref: 13151
SWITCH,NEUTRAL
€ 9.00
13239
132391069
ref: 13239
DRUM-ASSY-CHANGE
€ 148.50
49047
13209019
ref: 49047
ROD,SHIFT
€ 21.50
92022
920221208
ref: 92022
WASHER,PLAIN
€ 2.50
92033
92033035
ref: 92033
RING-SNAP,37MM
€ 4.00
92043
92042014
ref: 92043
PIN-GEAR CHANGE DRUM
€ 0.50
92043A
92042021
ref: 92043A
PIN,DOWEL,8X18
€ 7.00
92043B
92042030
ref: 92043B
PIN,GEAR CHNGE DRUM
€ 2.50
92046
92046051
ref: 92046
BEARING-NEEDLE,37BTM4
€ 23.00
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
€ 0.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
480A
480J3000
ref: 480A
CIRCLIP-TYPE-C,30MM
€ 3.50
550
550D3020
ref: 550
PIN-COTTER,3.0X20
€ 2.00
610
610A0406
ref: 610
ROLLER,4X6
€ 2.50
