STEP
Z750L4 1984 EUROPE UK FR SD WG

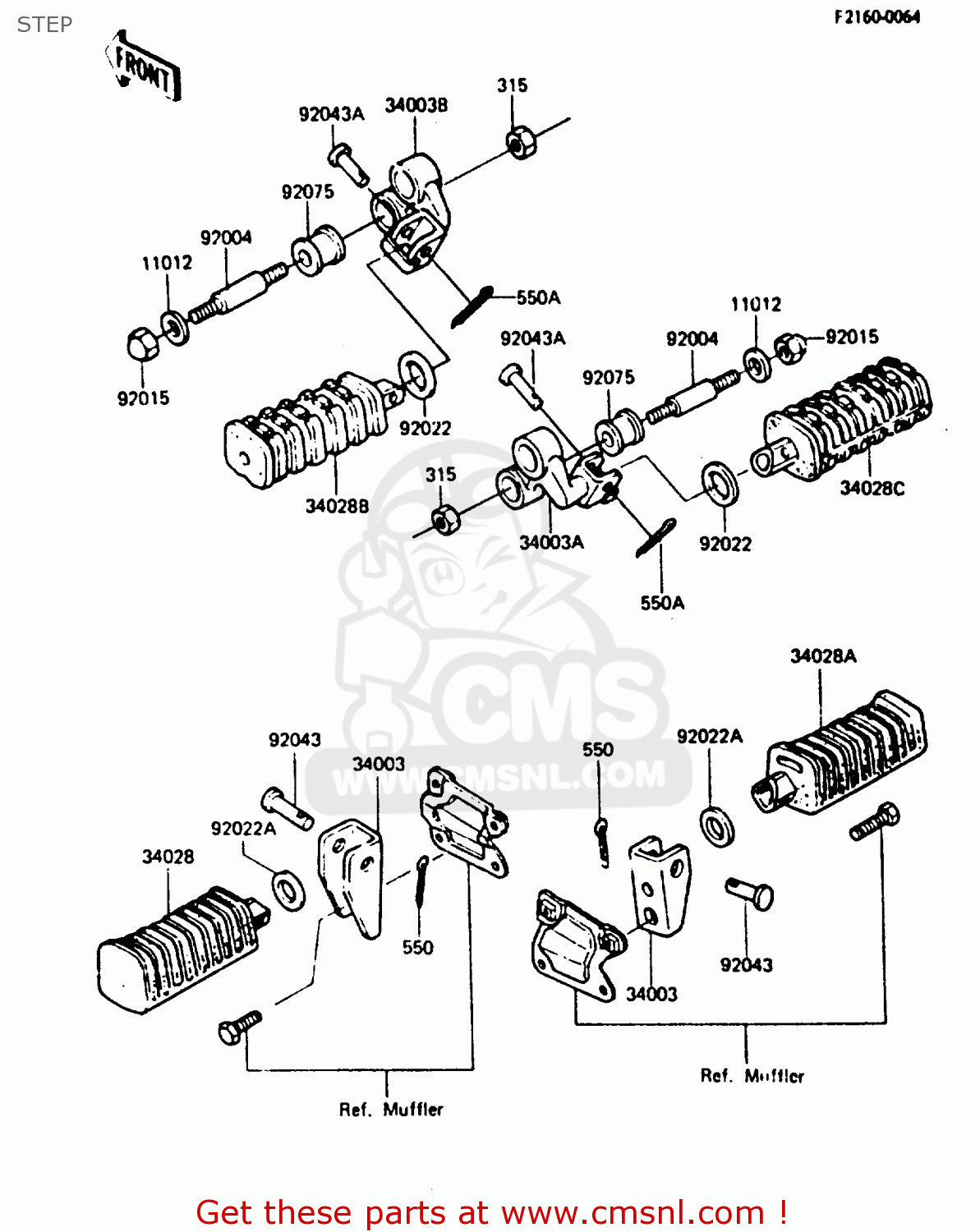

Step diagram Z750L4 1984 EUROPE UK FR SD WG
STEP Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
11012
110121246
ref: 11012
CAP,STEP,BLACK
€ 2.50
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031065
ref: 34003A
HOLDER-STEP,FR,RH
€ 73.50
34003B
340031066
ref: 34003B
HOLDER-STEP,FR,LH
€ 64.00
34028
340281041
ref: 34028
STEP,RR,LH,BLACK
€ 28.00
34028A
340281042
ref: 34028A
STEP,RR,RH,BLACK
€ 28.00
34028B
340281136
ref: 34028B
STEP,FR,LH
€ 26.00
34028C
340281137
ref: 34028C
STEP,FR,RH
€ 27.00
92004
92004048
ref: 92004
STUD-FOOTREST BAR FIT
€ 8.00
92015
920151209
ref: 92015
NUT,CAP,LOCK,8MM,BLAC
€ 5.00
92022
920221314
ref: 92022
WASHER,STEP FITTING
€ 3.00
92022A
920221320
ref: 92022A
WASHER,22.5X30X2.6,BL
€ 2.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
92075
92075293
ref: 92075
DAMPER
€ 5.50
315
315C1000
ref: 315
315C1000
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
