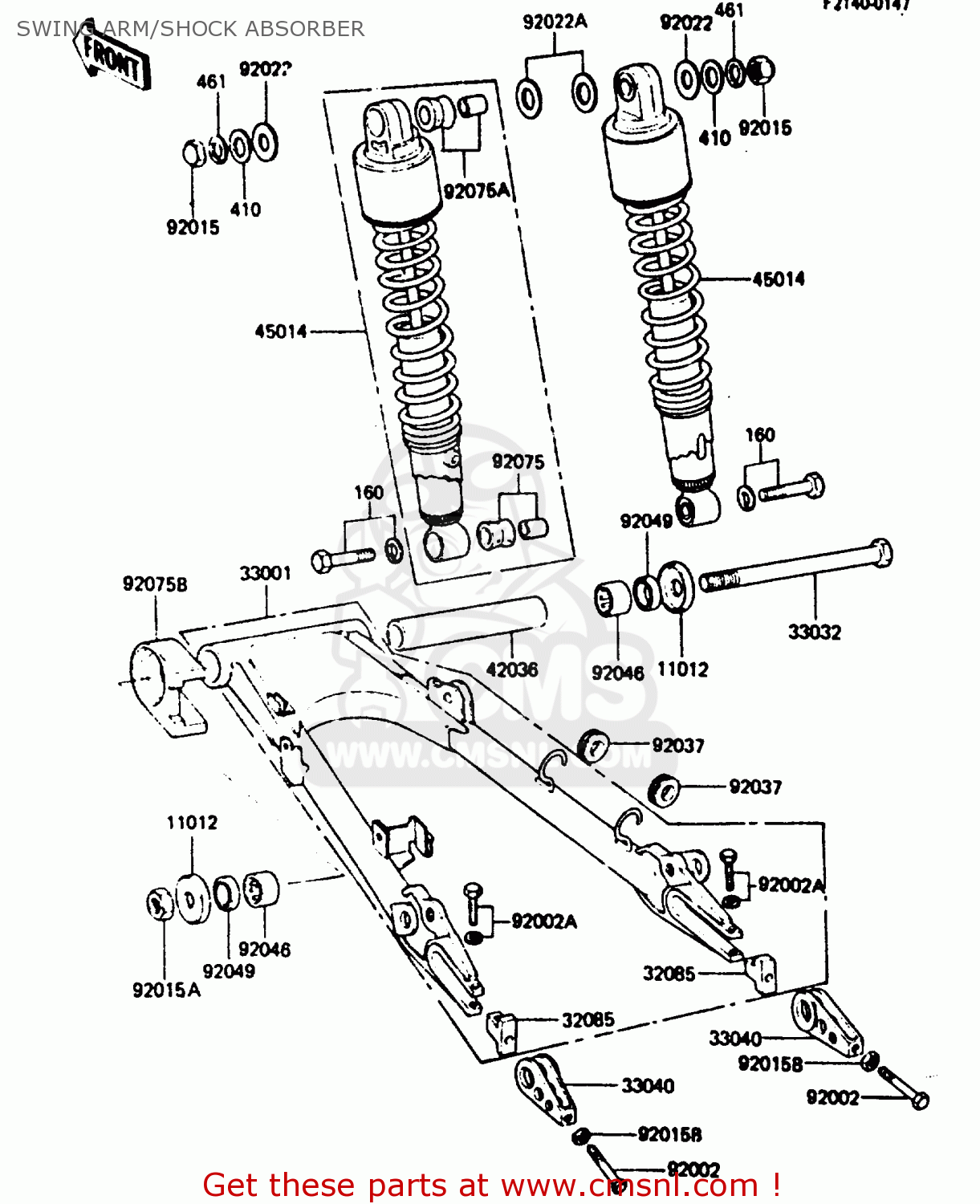

SWING ARM/SHOCK ABSORBER

ref

part #

description

quantity

11012

33035009
ref: 11012

CAP,SWING ARM

€ 10.50

32085

33044002
ref: 32085

STOPPER,CHAIN ADJUSTE

€ 14.00

33001

330011159
ref: 33001

ARM-COMP-SWING

€ 344.00

33032

330321028
ref: 33032

SHAFT-SWING ARM,16X31

€ 44.00

33040

33040056
ref: 33040

ADJUSTER-CHAIN

€ 16.50

42036

420361012
ref: 42036

SLEEVE,16.1X22X225.5

€ 26.50

45014

45014122610
ref: 45014

SHOCKABSORBER,RR,BLAC

€ 310.00

92002

920021076
ref: 92002

BOLT,8X50

€ 6.00

92002A

920021230
ref: 92002A

BOLT,8X35

€ 2.00

92015

920151192
ref: 92015

NUT,CAP,12MM,BLACK

€ 3.00

92015A

920151207
ref: 92015A

NUT,LOCK,16MM,BLACK

€ 7.50

92015B

920151364
ref: 92015B

NUT,8MM

€ 2.50

92022

920221303
ref: 92022

WASHER,12.4X28X2.3,BL

€ 3.00

92022A

920221577
ref: 92022A

920221577

92037

43064007
ref: 92037

43064007

92046

92046061
ref: 92046

NEEDLE BEARING

€ 24.00

92049

920491059
ref: 92049

OIL SEAL,MHA22284

€ 7.00

92075

45017019
ref: 92075

DAMPER,SHOCKABSORBER,

€ 13.00

92075A

920751141
ref: 92075A

BUSHING,SHOCK ABSORBE

€ 10.00

92075B

920751144
ref: 92075B

DAMPER,CHAIN PROTECTO

€ 10.50

160

160C1035
ref: 160

BOLT-FINE-WS

€ 2.50

410

410F1200
ref: 410

410F1200

461

461K1200
ref: 461

461K1200

all assemblies
