SEAT
Z750L4 1984 EUROPE UK FR SD WG

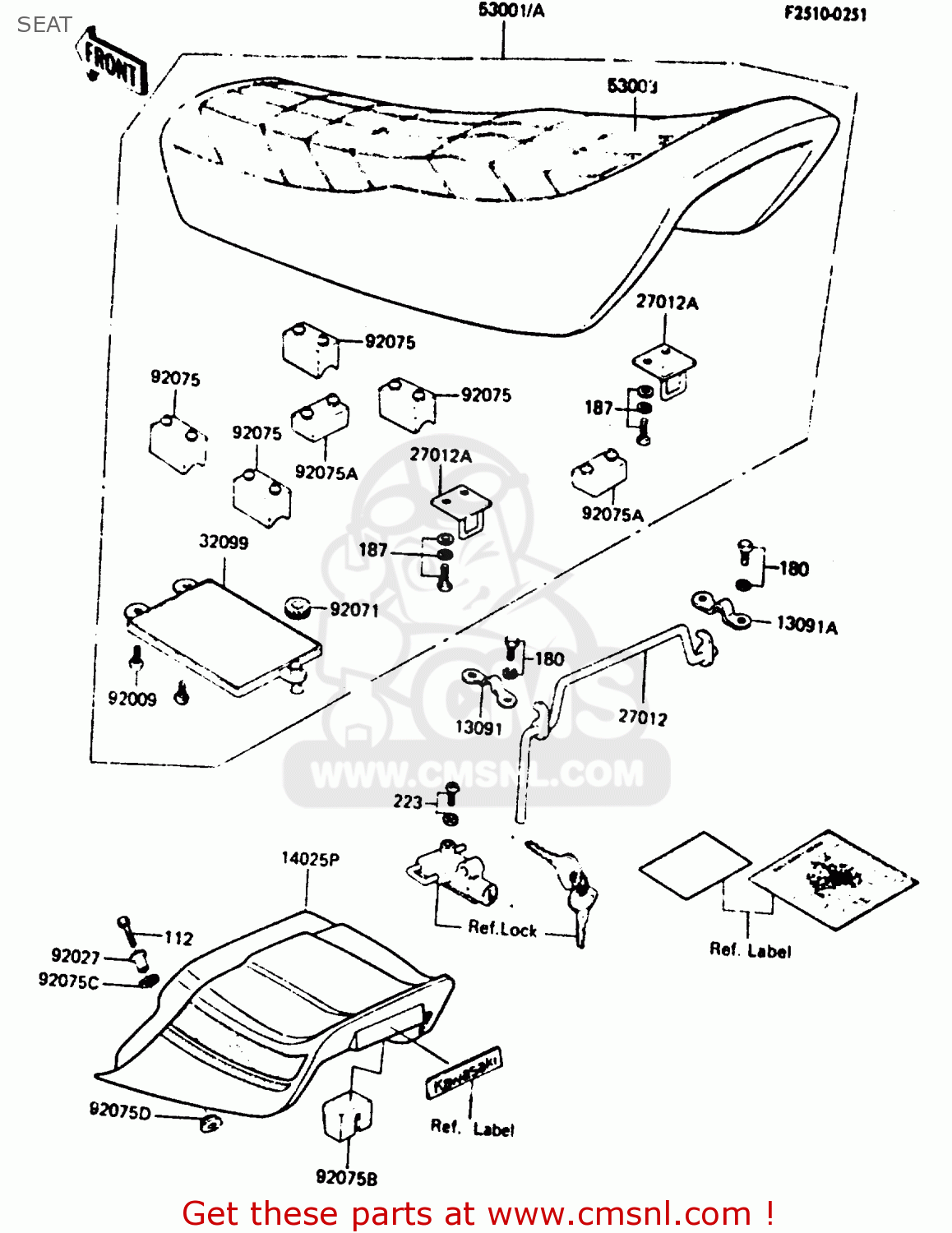

Seat diagram Z750L4 1984 EUROPE UK FR SD WG
SEAT Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
13091
130911137
ref: 13091
HOLDER,SEAT HOOK
€ 2.50
13091A
130911158
ref: 13091A
HOLDER,SEAT HOOK,RH
€ 3.00
14025P
140255175H8
ref: 14025P
COVER,SEAT,EBONY
€ 153.00
27012
270121027
ref: 27012
HOOK,SEAT LOCK
€ 13.50
27012A
53008021
ref: 27012A
HOOK,SEAT
€ 7.50
32099
32099011
ref: 32099
CASE,MANUAL
€ 11.50
53001
530011214
ref: 53001
EU
SEAT-ASSY,DUAL,W/BAND
€ 474.00
53001A
530011215
ref: 53001A
FR, SD, UK, WG
SEAT-ASSY,DUAL,L/BAND
€ 474.00
53003
530031023
ref: 53003
LEATHER,SEAT
€ 143.50
92009
920091043
ref: 92009
SCREW,TAPPING,5X8
€ 3.00
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92071
92071056
ref: 92071
GROMMET
€ 2.50
92075
920751133
ref: 92075
DAMPER,SEAT
€ 7.00
92075A
920751276
ref: 92075A
DAMPER,SEAT,RR
€ 6.00
92075B
920751313
ref: 92075B
DAMPER,SEAT COVER
€ 6.00
92075C
92075174
ref: 92075C
DAMPER,MALE
€ 3.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
€ 2.50
112
112B0620
ref: 112
BOLT-UPSET
€ 1.00
180
180B0614
ref: 180
BOLT-UPSET-WSP
€ 2.50
187
187B0614
ref: 187
BOLT-UPSET-WSP
€ 0.50
223
223C0610
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
