SECONDARY SHAFT

Z750L4 1984 EUROPE UK FR SD WG

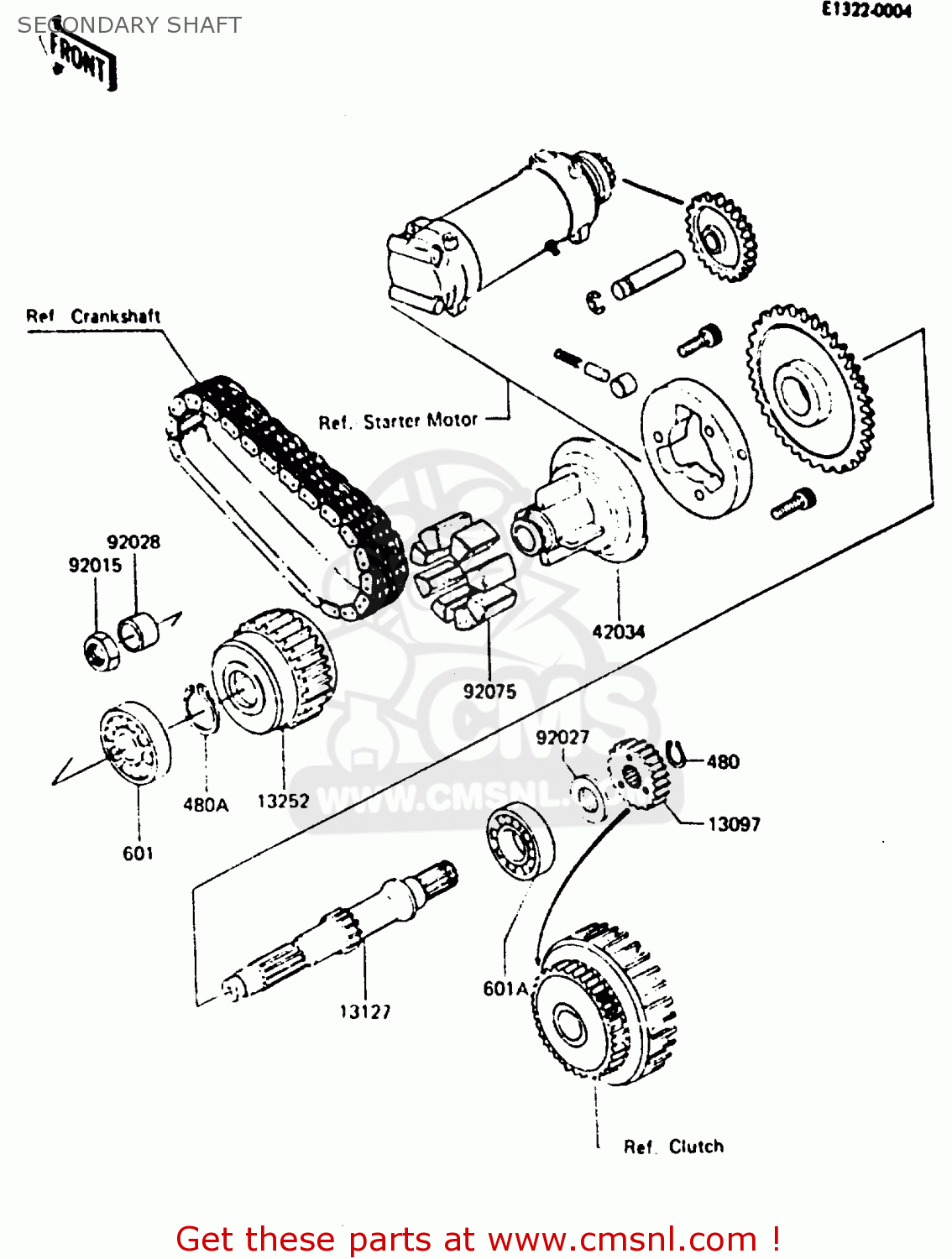

Secondary shaft diagram Z750L4 1984 EUROPE UK FR SD WG

prices are in EUR

ref

part #

description

quantity

13097

13121037
ref: 13097

GEAR, 29T

€ 101.50

13127

131271019
ref: 13127

SHAFT,SECONDARY

€ 244.00

13252

13252001
ref: 13252

COUPLING,OUTER,SECOND

€ 226.50

42034

13253001
ref: 42034

COUPLING,INNER,SECOND

€ 180.50

92015

92015019
ref: 92015

NUT,18MM

€ 4.00

92027

92027263
ref: 92027

COLLAR,23X46X4.5

€ 4.00

92028

920281037
ref: 92028

BUSHING,20X25X16.6

€ 16.00

92075

920751227
ref: 92075

DAMPER

€ 4.50

480

480J2200
ref: 480

CIRCLIP-TYPE-C,22MM

€ 3.00

480A

480J2800
ref: 480A

CIRCLIP-TYPE-C,28MM

€ 3.50

601

601B6205
ref: 601

BEARING-BALL,#6205C3

€ 14.00

601A

601B6305
ref: 601A

BEARING-BALL,#6305C3

€ 30.00

SECONDARY SHAFT

all assemblies
