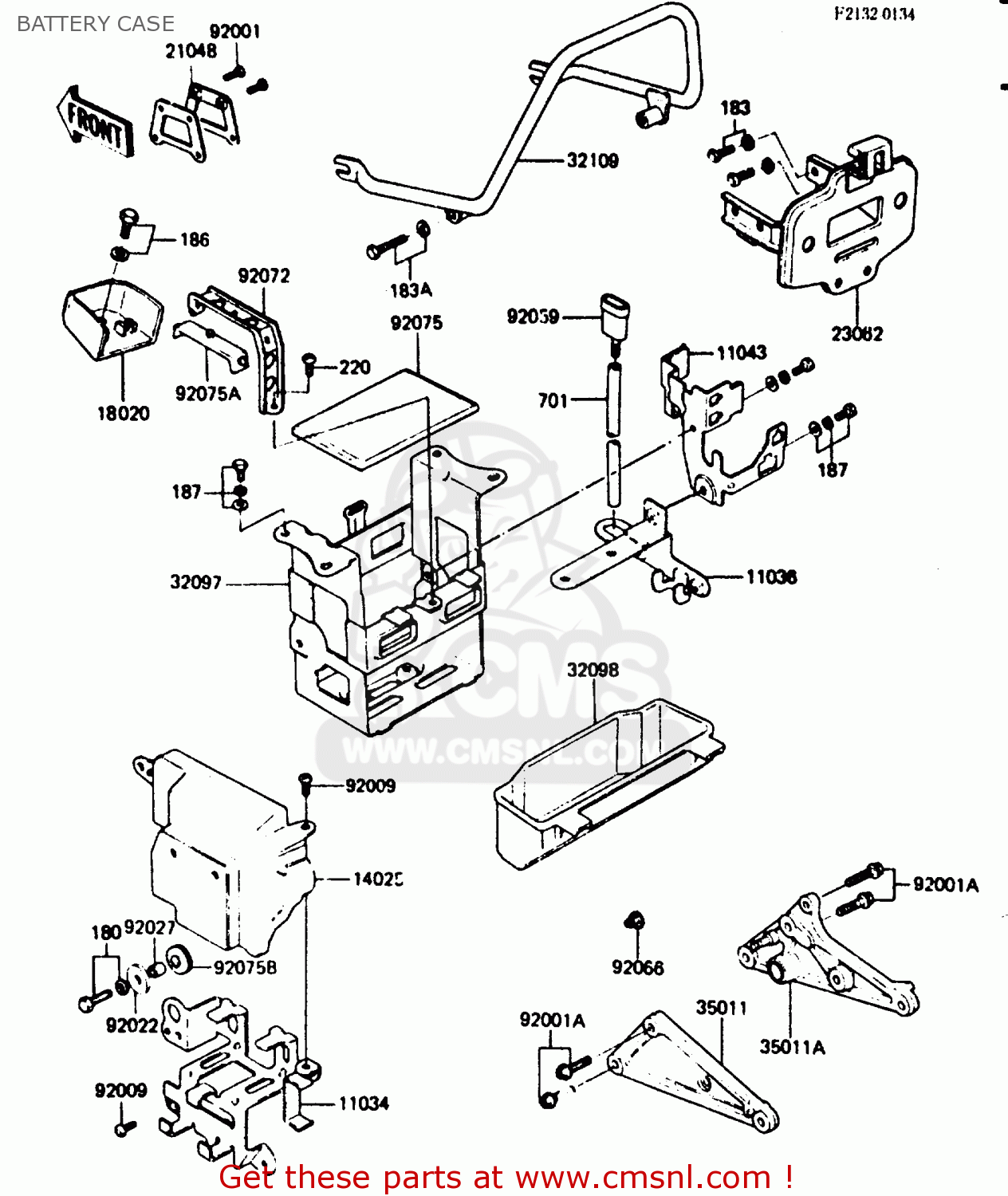

BATTERY CASE

ref

part #

description

quantity

11034

110341669
ref: 11034

BRACKET,ELECTRO BASE

€ 34.00

11036

110361662
ref: 11036

BRACKET-A,BATTERY CAS

€ 15.50

11043

110431622
ref: 11043

BRACKET,IGNITER

€ 12.00

14025

140251191
ref: 14025

COVER,ELECTRO BASE

€ 7.00

18020

180201060
ref: 18020

BAFFLE,CARBURETOR AIR

€ 10.00

21048

210481001
ref: 21048

PLATE-COIL

€ 14.00

23062

230621024
ref: 23062

BRACKET-COMP,TAIL LAM

€ 33.50

32097

320971026
ref: 32097

CASE-BATTERY

€ 92.00

32098

320981011
ref: 32098

CASE-TOOL

€ 20.50

32109

321091031
ref: 32109

GRIP-FRAME

€ 124.50

35011

350111121
ref: 35011

STAY,MUFFLER,LH

€ 51.00

35011A

350111122
ref: 35011A

STAY,MUFFLER,RH

€ 83.00

92001

92001137
ref: 92001

BOLT,HEX HEAD,6M/M

€ 4.00

92001A

920011508
ref: 92001A

BOLT,FLANGED,8X28,BLA

€ 3.00

92009

920091271
ref: 92009

SCREW,6X12

€ 2.00

92022

92022228
ref: 92022

WASHER-PLAIN,7MM

€ 2.50

92027

92027291
ref: 92027

COLLAR,6.5X8.5X14

€ 2.50

92059

92059101
ref: 92059

TUBE,CONNECTOR

€ 6.00

92066

920661077
ref: 92066

CAP,REAR VIEW MIRROR

€ 3.00

92072

920721019
ref: 92072

BAND,BATTERY

€ 6.50

92075

920751076
ref: 92075

DAMPER,BATTERY BASE

€ 6.00

92075A

920751113
ref: 92075A

DAMPER,BATTERY BAND

€ 4.50

92075B

92075317
ref: 92075B

DAMPER

€ 2.50

180

180B0625
ref: 180

BOLT-UPSET-WS

€ 2.50

183

183B0816
ref: 183

BOLT-UPSET-WS-SMALL

€ 0.50

183A

183C0835
ref: 183A

BOLT-UPSET-WS-SMALL

€ 2.50

186

186B0610
ref: 186

BOLT,UPSET

€ 0.50

187

187B0612
ref: 187

BOLT-UPSET-WSP

€ 0.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

701

701Q06300
ref: 701

TUBE-PVC,6X300

€ 2.50
