METER
Z750L4 1984 EUROPE UK FR SD WG

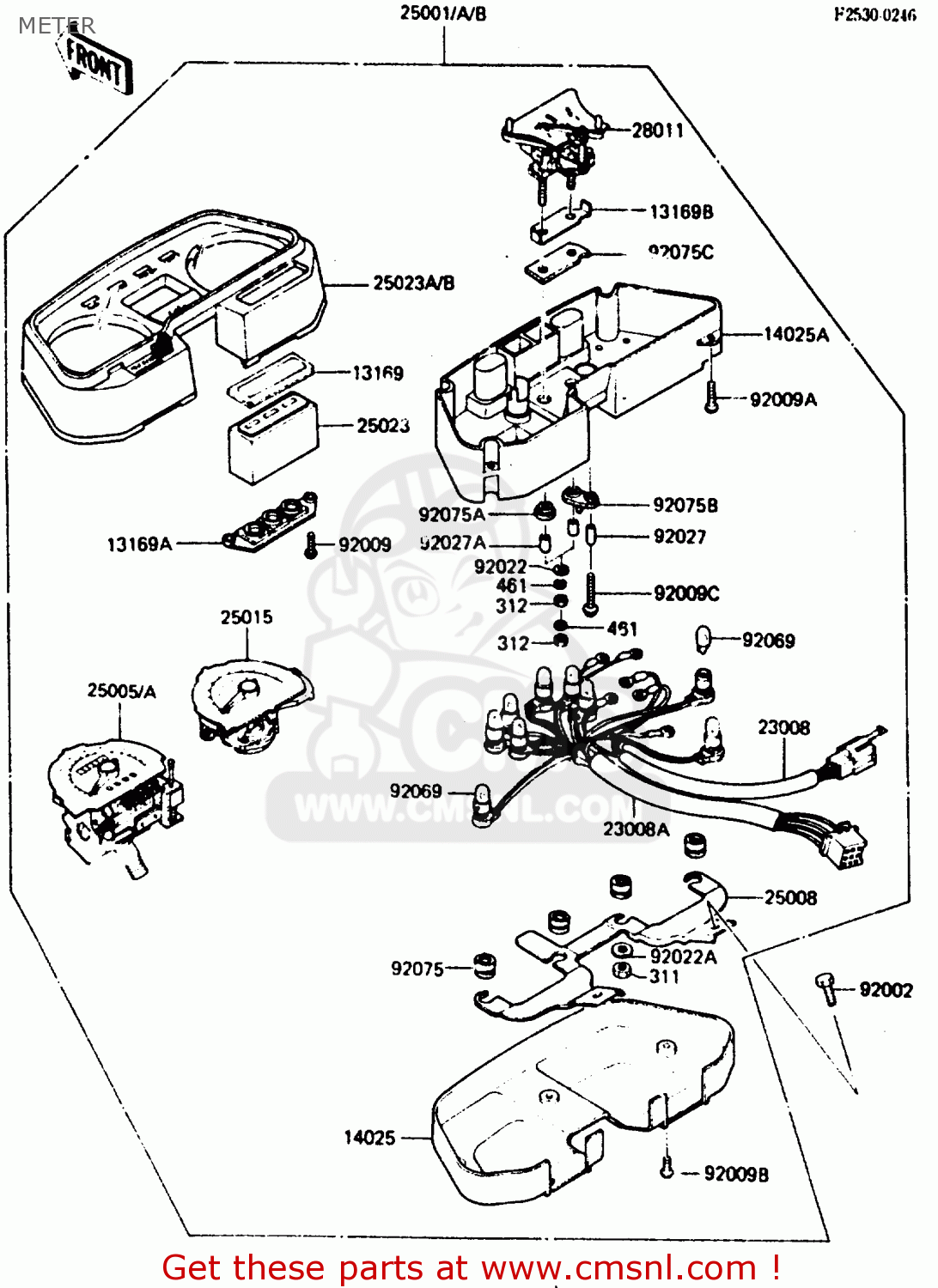

Meter diagram Z750L4 1984 EUROPE UK FR SD WG
METER Z750L4 1984 EUROPE UK FR SD WG
×
prices are in EUR
ref
part #
description
quantity
13169
131691508
ref: 13169
PLATE,PILOT BOX
€ 12.50
13169A
131691556
ref: 13169A
PLATE,BULB SOCKET
€ 7.50
13169B
131691593
ref: 13169B
PLATE,FUEL METER
€ 4.00
14025
140251473
ref: 14025
COVER,METER,LWR
€ 24.50
14025A
140251600
ref: 14025A
COVER,METER UNIT
€ 107.50
23008
230081178
ref: 23008
SOCKET-ASSY,FUEL&OIL
€ 33.50
23008A
230081182
ref: 23008A
SOCKET-ASSY,METER
€ 72.00
25001
250011398
ref: 25001
EU, FR, WG
METER-ASSY,KPH
€ 942.00
25001A
250011399
ref: 25001A
UK
METER-ASSY,MPH
€ 851.50
25001B
250011567
ref: 25001B
SD
METER-ASSY,KPH
€ 851.50
25005
250051176
ref: 25005
EU, FR, SD, WG
SPEEDOMETER,KPH
€ 131.50
25005A
250051179
ref: 25005A
UK
SPEEDOMETER,MPH
€ 123.00
25008
250081058
ref: 25008
BRACKET-METER
€ 47.50
25015
250151135
ref: 25015
TACHOMETER,(X1000R/MI
€ 240.00
25023
250231047
ref: 25023
COVER-METER CASE,PILO
€ 18.00
25023A
250231056
ref: 25023A
EU, FR, UK, WG
COVER-METER CASE,UPP
€ 175.50
25023B
250231119
ref: 25023B
SD
COVER-METER CASE,UPP
€ 122.00
28011
280111032
ref: 28011
METER,FUEL
€ 62.00
92002
920021133
ref: 92002
BOLT,6X14
€ 0.50
92009
920091140
ref: 92009
SCREW,TAPPING,4X14
€ 2.50
92009A
920091141
ref: 92009A
SCREW,TAPPING,4X20
€ 3.00
92009B
920091142
ref: 92009B
SCREW,TAPPING,4X12
€ 3.00
92009C
920091190
ref: 92009C
SCREW,3X16
€ 1.50
92022
920221394
ref: 92022
WASHER,4.5X10X0.8
€ 2.50
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
€ 1.50
92027
920271563
ref: 92027
COLLAR,5,5X11
€ 2.50
92027A
920271564
ref: 92027A
COLLAR,6X8.5
€ 2.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 3.00
92075A
920751453
ref: 92075A
DAMPER,FUEL METER
€ 2.50
92075B
920751454
ref: 92075B
DAMPER,FUEL METER,TWO
€ 3.00
92075C
920751455
ref: 92075C
DAMPER,FUEL METER,SPO
€ 3.00
311
311B0500
ref: 311
NUT-HEX
€ 0.50
312
312B0400
ref: 312
NUT-HEX
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
€ 0.50
