FENDER

Z750L4 1984 EUROPE UK FR SD WG

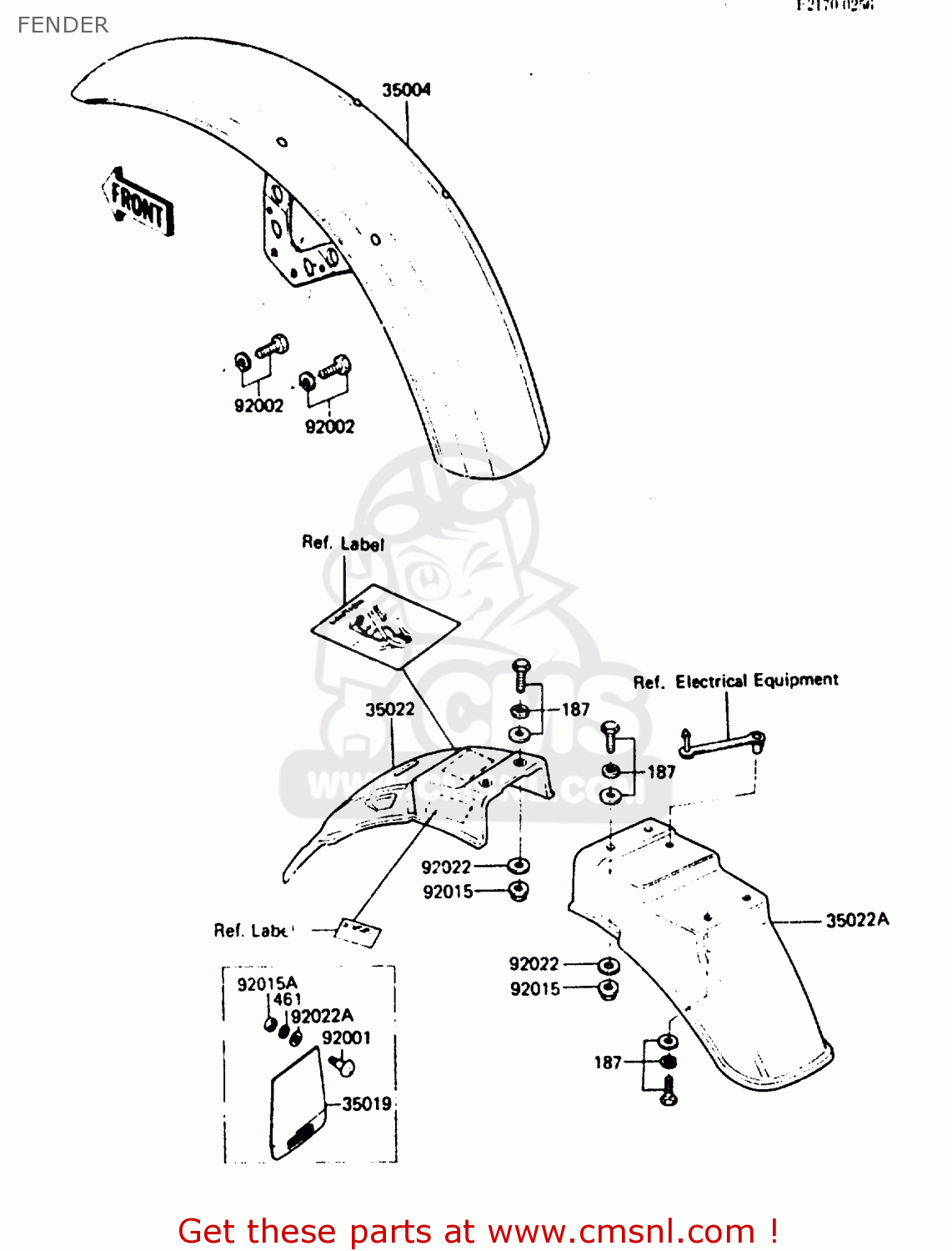

Fender diagram Z750L4 1984 EUROPE UK FR SD WG

prices are in EUR

ref

part #

description

quantity

35004

350041083H8
ref: 35004

FENDER-FRONT,EBONY

€ 177.00

35019

350191005
ref: 35019

FLAP,FENDER,RR

€ 15.50

35022

350221046
ref: 35022

FENDER-COMP-REAR,FR

€ 46.50

35022A

3502210586Z
ref: 35022A

FENDER-COMP-REAR,RR

€ 41.00

92001

92001134
ref: 92001

BOLT,5X12

€ 3.00

92002

920021200
ref: 92002

BOLT,FLANGED,8X16

€ 3.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151446
ref: 92015A

NUT,5MM

€ 1.50

92022

920221557
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92022A

920221581
ref: 92022A

WASHER,5.5X20X1.2

€ 1.50

187

187D0616
ref: 187

BOLT-UPSET-WSP

€ 0.50

461

461L0500
ref: 461

WASHER-SPRING

€ 0.50
