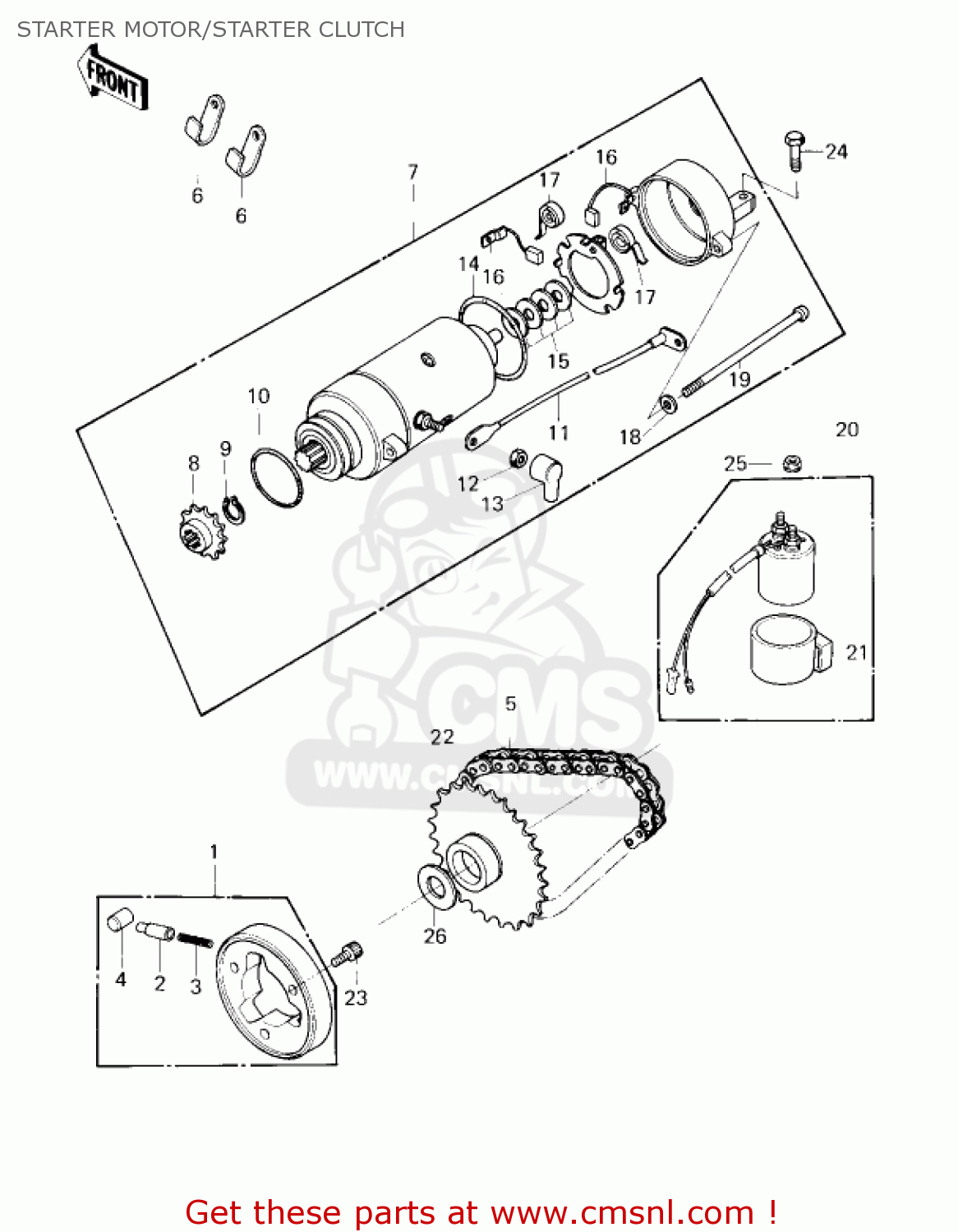

STARTER MOTOR/STARTER CLUTCH

ref

part #

description

quantity

1

131931001
ref: 1

CLUTCH-ASSY-ONEWAY

€ 141.50

2

92043087
ref: 2

PIN

€ 8.00

3

92081110
ref: 3

SPRING

€ 3.00

4

92122004
ref: 4

ROLLER,15X13

€ 7.00

5

21070010
ref: 5

CHAIN,DYNAMO

€ 69.50

6

21126008
ref: 6

CLAMP,WIRING HARNESS

€ 3.00

7

211631020
ref: 7

STARTER-ELECTRIC

€ 595.00

8

21053003
ref: 8

SPROCKET,STARTER MOT

€ 25.00

9

92033034
ref: 9

CIRCLIP

€ 7.00

10

21027008
ref: 10

O RING, 40M/M

€ 8.50

11

26010045
ref: 11

WIRE,STARTER MOTOR LD

€ 24.50

12

312B0600
ref: 12

NUT,6MM

€ 0.50

13

21017017
ref: 13

GROMMET-CORD

€ 6.50

14

21027003
ref: 14

RING-O,STARTER MOTOR

€ 6.00

15

21025011
ref: 15

WASHER, THRUST, 0.2T

€ 4.00

16

21039003
ref: 16

BRUSH,CARBON

€ 23.50

17

21040003
ref: 17

SPRING-BRUSH

€ 4.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

21099055
ref: 19

UNAVAILABLE IN PRICE BOOK

€ 0.00

20

21164005
ref: 20

SWITCH ASSY,MAGNETIC

€ 99.00

21

21064002
ref: 21

DAMPER,MAGNETIC SWITC

€ 13.50

22

21170003
ref: 22

GEAR,STARTER CLUTCH

€ 194.00

23

120P0816
ref: 23

BOLT-SOCKET

€ 2.50

24

130G0625
ref: 24

BOLT,FLANGED,6X25

€ 0.50

25

92017014
ref: 25

NUT,LOCK,6MM

€ 4.00

26

920261013
ref: 26

SPACER

€ 8.00

all assemblies
