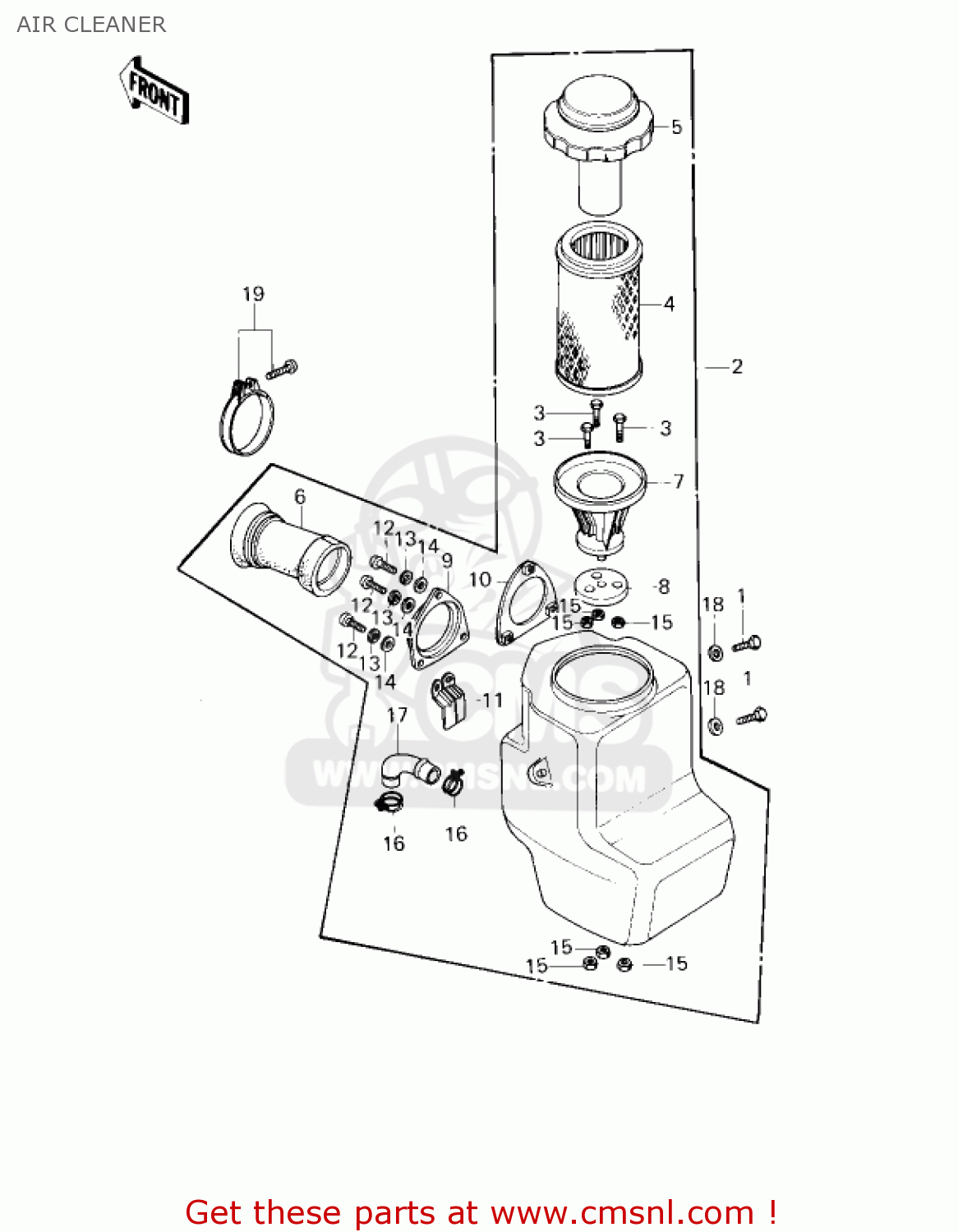

AIR CLEANER

ref

part #

description

quantity

1

112G0616
ref: 1

BOLT UPSET,6X16

€ 1.00

2

11010109
ref: 2

AIR CLEANER ASSY

€ 174.00

3

112G0620
ref: 3

BOLT 6X20

€ 1.00

4

11013051
ref: 4

ELEMENT-AIR FILTER

€ 17.00

5

11015049
ref: 5

PIPE,INLET

€ 28.00

6

11026018
ref: 6

DUCT

€ 18.00

7

11033004
ref: 7

HOLDER,AIR CLEANER

€ 9.50

8

11039001
ref: 8

GASKET

€ 3.00

9

11040004
ref: 9

HOLDER,AIR INLET DUCT

€ 9.50

10

11040005
ref: 10

PLATE,CARB HOLDER

€ 8.50

11

11040006
ref: 11

PLATE,CARB HOLDER

€ 10.00

12

220B0416
ref: 12

SCREW-PAN-CROS

€ 2.00

13

461F0400
ref: 13

WASHER-SPRING,4MM

€ 0.50

14

410B0400
ref: 14

WASHER-PLAIN-SMALL,4M

€ 0.50

15

311B0600
ref: 15

NUT,6MM

€ 0.50

16

92037192
ref: 16

CLAMP,BREATHER HOSE

€ 4.00

17

92059121
ref: 17

TUBE

€ 8.50

18

92022125
ref: 18

WASHER,6.5X20X1.6

€ 1.00

19

92037171
ref: 19

CLAMP

€ 9.00
