BRAKE PEDAL/TORQUE LINK

KZ750G1 1980 USA CANADA / LTDII MPH KPH

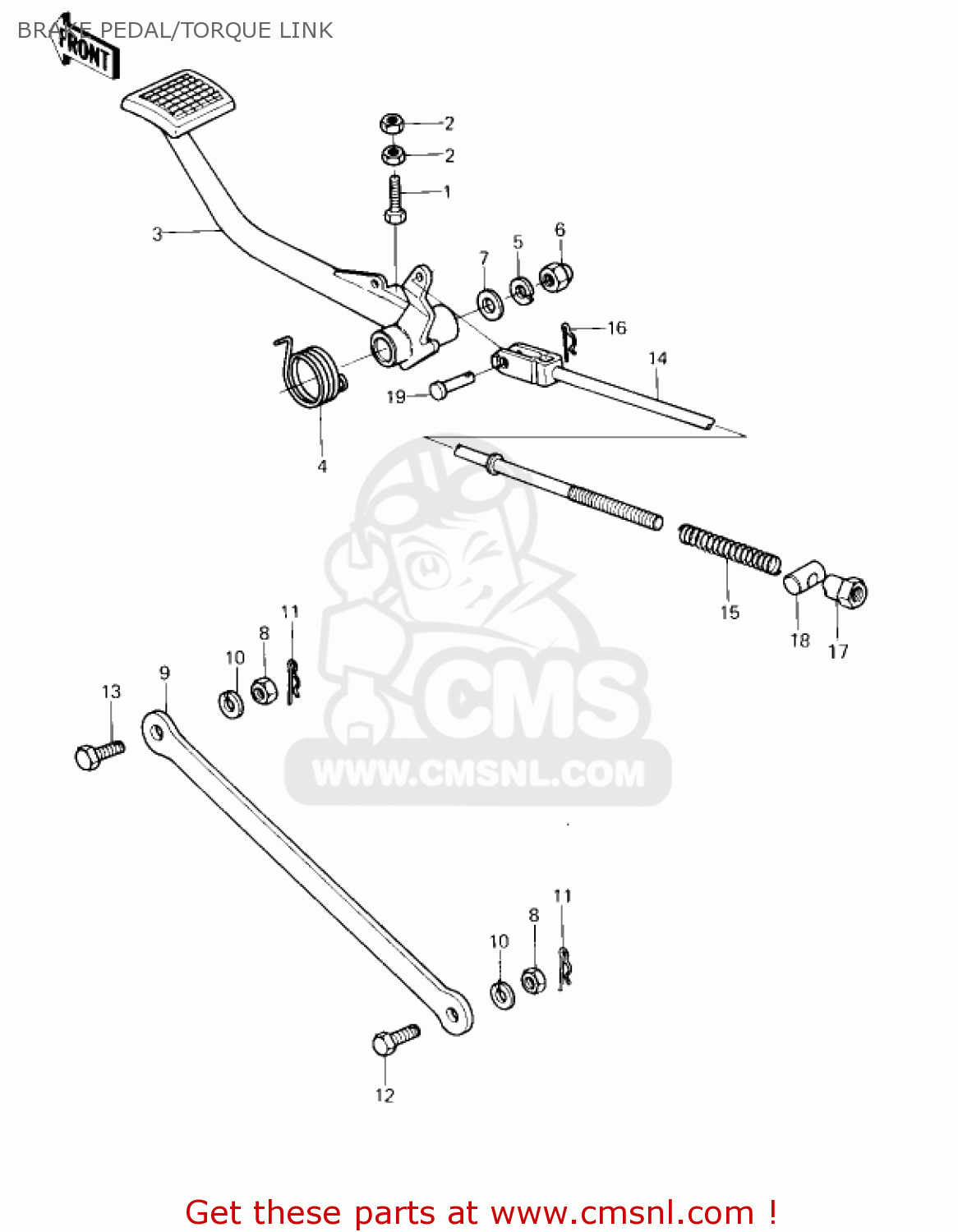

Brake pedal/torque link diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

311B0600
ref: 2

NUT,6MM

€ 0.50

430011038
ref: 3

BRAKE PEDAL

€ 72.00

43005036
ref: 4

SPRING,BK PEDAL RETN

€ 5.50

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

92019013
ref: 6

NUT,CAP,LOCK,8MM

€ 5.50

920221561
ref: 7

WASHER,8.5X20X1.6

€ 2.50

314B1000
ref: 8

NUT,10MM

€ 0.50

430071016
ref: 9

ROD-TORQUE

€ 14.50

461F1000
ref: 10

WASHER-SPRING,10MM

€ 0.50

554A0800
ref: 11

PIN-SNAP,8MM

€ 1.00

92003097
ref: 12

BOLT-HEX HEAD,10X40

€ 4.50

92003103
ref: 13

BOLT,TORQUE LINK FITT

€ 6.00

430111016
ref: 14

ROD-BRAKE

€ 10.00

43012001
ref: 15

SPRING,BRAKE ROD

€ 3.00

554A0600
ref: 16

PIN-SNAP,SIDE STAND

€ 0.50

92015042
ref: 17

NUT-BRAKE ROD ADJUST

€ 4.00

92043065
ref: 18

PIN-BRAKE ROD

€ 3.50

92043090
ref: 19

PIN,6X13

€ 4.00
