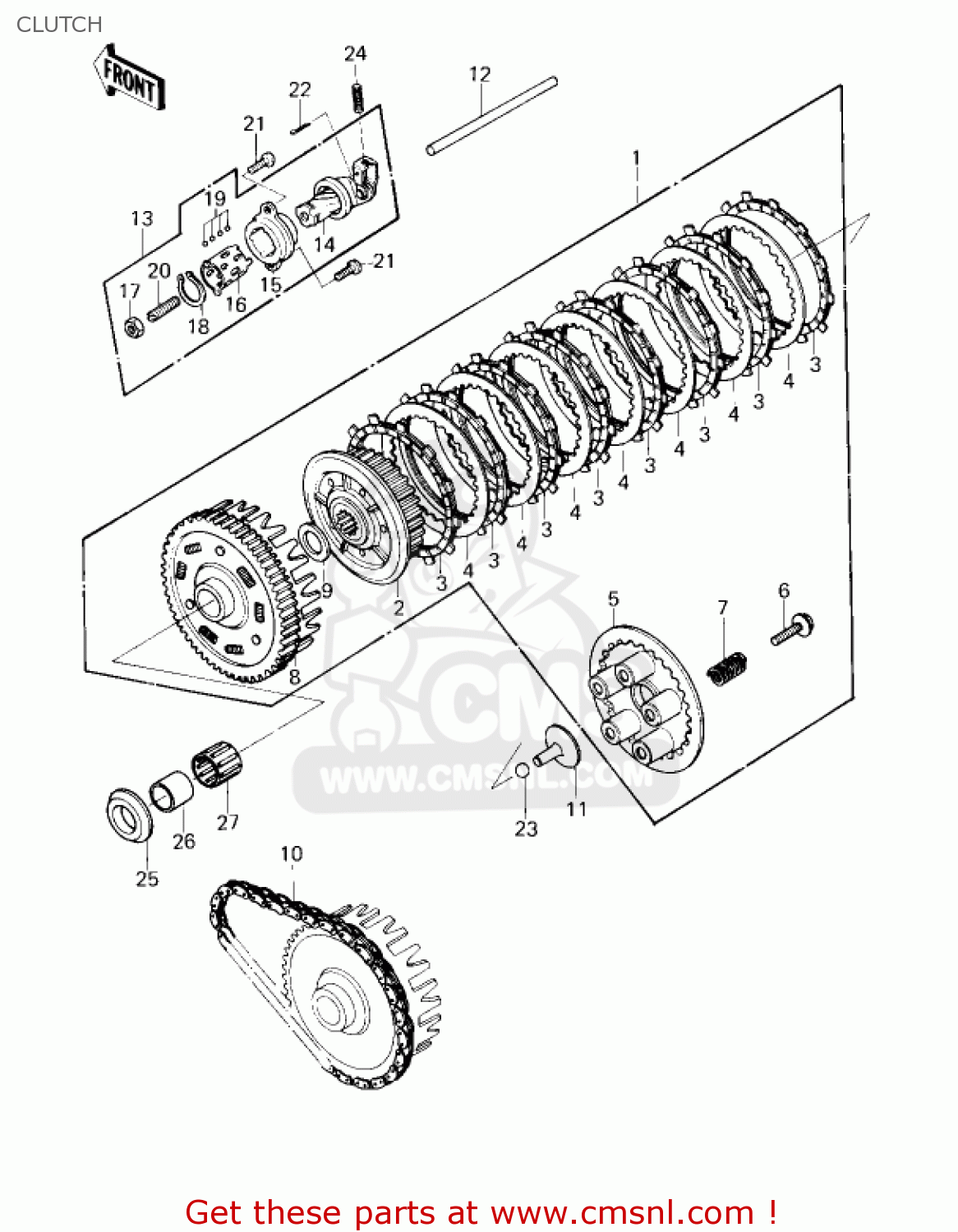

CLUTCH

ref

part #

description

quantity

1

130811006
ref: 1

CLUTCH ASSY

€ 451.00

2

13087042
ref: 2

HUB,CLUTCH

€ 133.00

3

13088040
ref: 3

PLATE,CLUTCH FRICTION (NAS)

€ 12.50

4

13089027
ref: 4

PLATE,CLUTCH STEEL (NAS)

€ 7.50

5

13187008
ref: 5

PLATE,CLUTCH SPRING (NAS)

€ 50.00

6

920011066
ref: 6

BOLT, CLUTCH SPR FITT

€ 4.00

7

920811033
ref: 7

SPRING,CLUTCH

€ 6.50

8

13095050
ref: 8

HOUSHING,CLUTCH

€ 290.00

9

92026022
ref: 9

SPACER,25.5X47X2.5

€ 6.50

10

13122008
ref: 10

CHAIN,PRIMARY

€ 330.50

11

13116022
ref: 11

ROD-PUSH,CLUTCH SPRIN

€ 15.50

12

13116035
ref: 12

ROD-PUSH,CLUTCH

€ 27.50

13

13231014
ref: 13

CLUTCH RELEASE ASSEMBLY

€ 131.50

14

13102019
ref: 14

INNER,CLUTCH RELEASE

€ 48.00

15

13118011
ref: 15

OUTER,CLUTCH REREASEL

€ 14.00

16

13197004
ref: 16

RETAINER

€ 1.00

17

318B0800
ref: 17

NUT,8MM

€ 0.50

18

480J1500
ref: 18

CIRCLIP-TYPE-C,15MM

€ 1.00

19

600A0400
ref: 19

BALL-STEEL,1/8

€ 2.00

20

92014014
ref: 20

SCREW-SLOTTED,8X25

€ 4.00

21

220B0616
ref: 21

SCREW-PAN HEAD,6X16

€ 2.50

22

550D1615
ref: 22

PIN-COTTER,1.6X15

€ 1.50

23

600A1200
ref: 23

BALL-STEEL,3/8

€ 0.50

24

92081069
ref: 24

SPRING-CLUTCH RELEASE

€ 4.50

25

92026123
ref: 25

SPACER

€ 7.50

26

92028178
ref: 26

BUSHING,CLUTCH

€ 17.00

27

92046028
ref: 27

BEARING-NEEDLE,KTV323

€ 20.50
