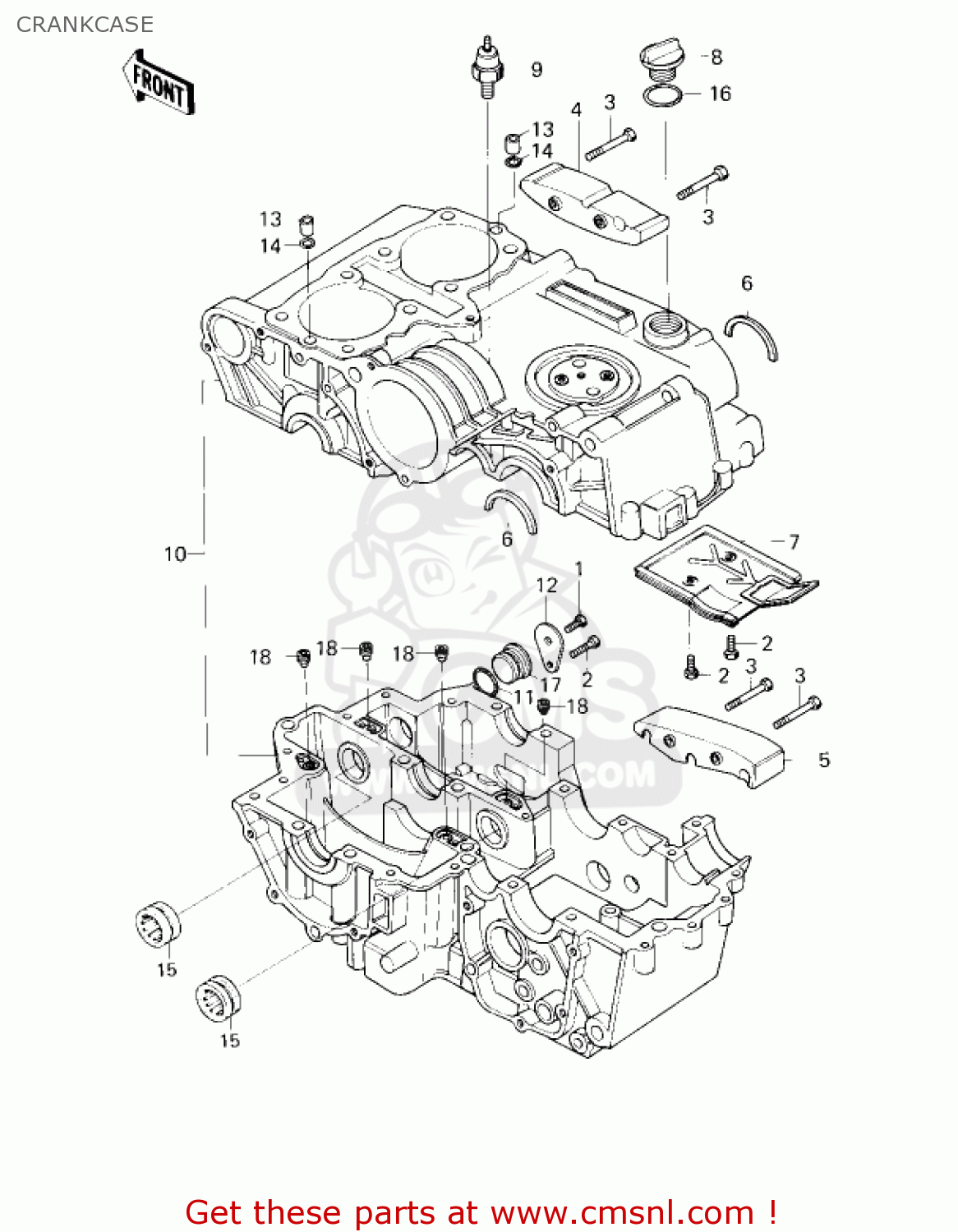

CRANKCASE

ref

part #

description

quantity

1

110B0608
ref: 1

BOLT-HEX HEAD,6X8

€ 0.50

2

112B0614
ref: 2

BOLT-UPSET 6X14

€ 2.50

3

920011577
ref: 3

BOLT,FLANGED,8X35

€ 2.50

4

12053020
ref: 4

SLIPPER,PRIMARY CHAIN

€ 37.50

5

12053021
ref: 5

SLIPPER,PRIMARY CHAIN

€ 37.50

6

14013004
ref: 6

RING-BEARING SETTING

€ 7.00

7

14068008
ref: 7

PLATE,BREATHER

€ 15.00

8

16115013
ref: 8

PLUG-OIL FILLER

€ 13.50

9

270101157
ref: 9

SWITCH,OIL PRESSURE

€ 27.50

10

140015092
ref: 10

SET-CRANKCASE

€ 1,923.00

11

670B3030
ref: 11

O RING,30MM

€ 3.00

12

92026115
ref: 12

SPACER

€ 1.50

13

920431266
ref: 13

PIN,11X14X12.3

€ 1.00

14

92055093
ref: 14

RING-O

€ 8.00

15

92046048
ref: 15

BEARING,NEEDLE

€ 26.00

16

92055049
ref: 16

'0'RING,31MM

€ 2.50

17

92066049
ref: 17

PLUG

€ 7.50

18

92013007
ref: 18

SCREW,SLOTTED

€ 2.50
