GENERATOR/REGULATOR

KZ750G1 1980 USA CANADA / LTDII MPH KPH

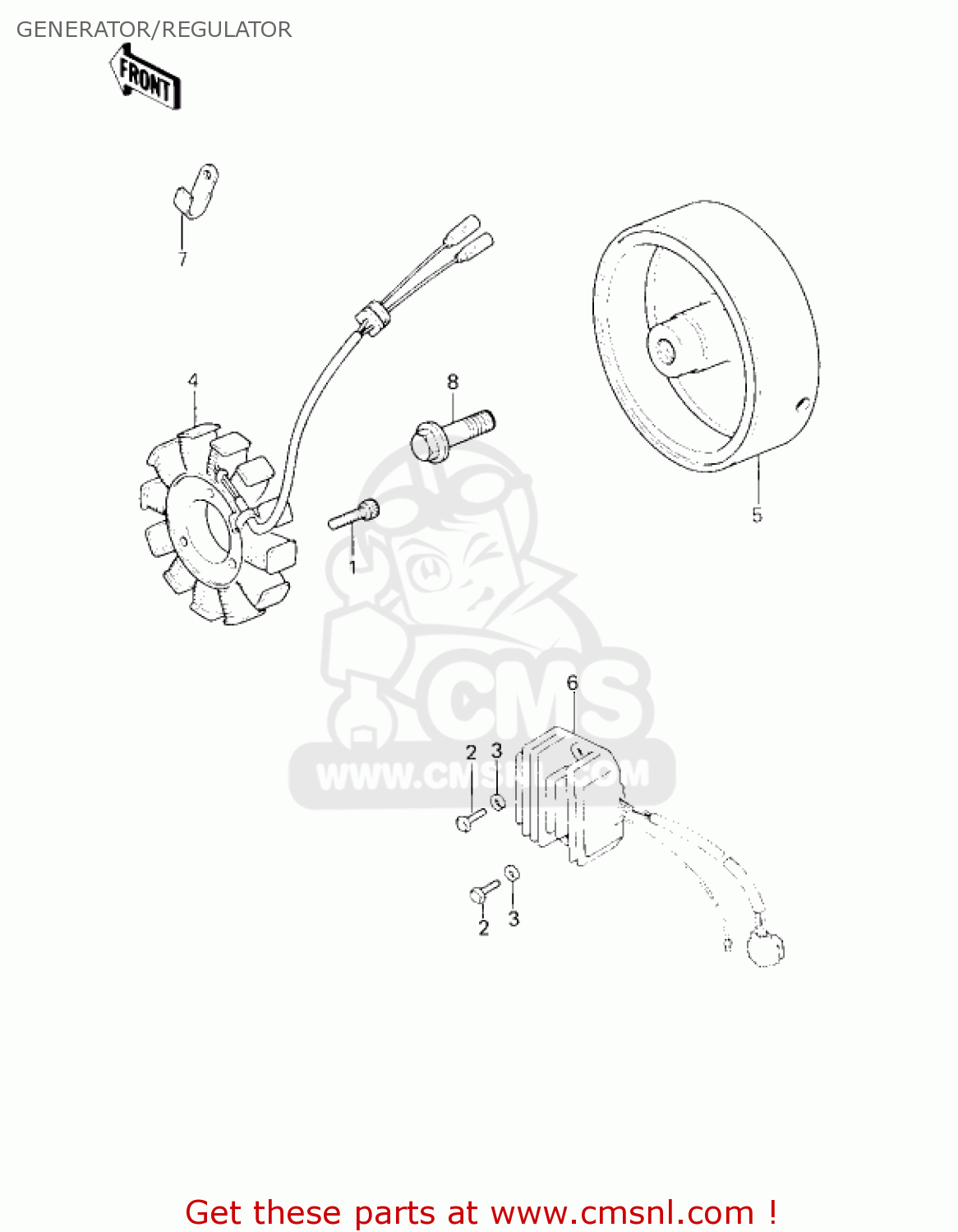

Generator/regulator diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

GENERATOR/REGULATOR KZ750G1 1980 USA CANADA / LTDII MPH KPH

GENERATOR/REGULATOR KZ750G1 1980 USA CANADA / LTDII MPH KPH

prices are in EUR

ref

part #

description

quantity

1

120P0628
ref: 1

BOLT,ALLEN,6X28

€ 3.00

2

112G0616
ref: 2

BOLT UPSET,6X16

€ 1.00

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

4

210031006
ref: 4

STATOR

€ 478.00

5

210501004
ref: 5

FLYWHEEL,GENERATOR

€ 560.50

6

210661014
ref: 6

REGULATOR-VOLTAGE

€ 170.50

7

21126008
ref: 7

CLAMP,WIRING HARNESS

€ 3.00

8

920011012
ref: 8

BOLT

€ 12.00
