IGNITION SWITCH/LOCKS/REFLECTORS

KZ750G1 1980 USA CANADA / LTDII MPH KPH

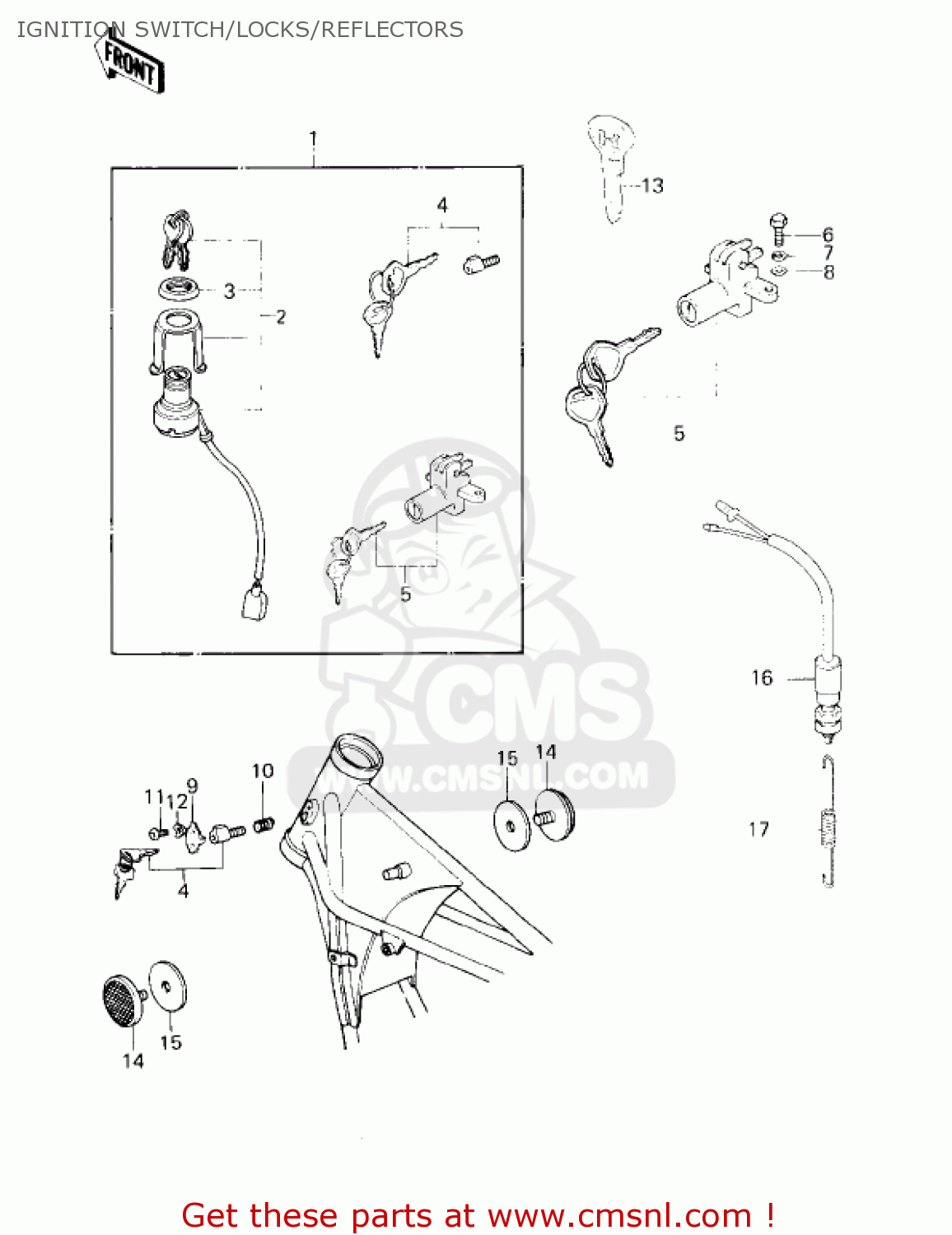

Ignition switch/locks/reflectors diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

prices are in EUR

ref

part #

description

quantity

270045029
ref: 1

LOCK ASSY

€ 150.00

270055006
ref: 2

SWITCH ASSY,IGNITION

€ 117.50

27007004
ref: 3

NUT,IGNITION SWITCH

€ 8.00

270165009
ref: 4

LOCK-ASSY,STEERING

€ 97.00

270165010
ref: 5

LOCK-ASSY,SEAT

€ 72.50

112B0614
ref: 6

BOLT-UPSET 6X14

€ 2.50

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

110121134
ref: 9

CAP,STEERING LOCK

€ 4.50

27032001
ref: 10

SPRING-STEERING LOCK

€ 3.50

92008007
ref: 11

SCREW-TAPPING

€ 2.50

92097003
ref: 12

WASHER

€ 2.50

270081103
ref: 13
OPTION

KEY-LOCK,BLANK

€ 13.50

28012016
ref: 14

REFLECTOR REFLEX

€ 16.00

92094011
ref: 15

DAMPER,REFLECTOR

€ 3.00

27010015
ref: 16

SWITCH,BRAKE LAMP

€ 23.00

27011011
ref: 17

SPRING,BRAKE LAMP SW

€ 5.50
