CRANKCASE BOLT & STUD PATTERN

KZ750G1 1980 USA CANADA / LTDII MPH KPH

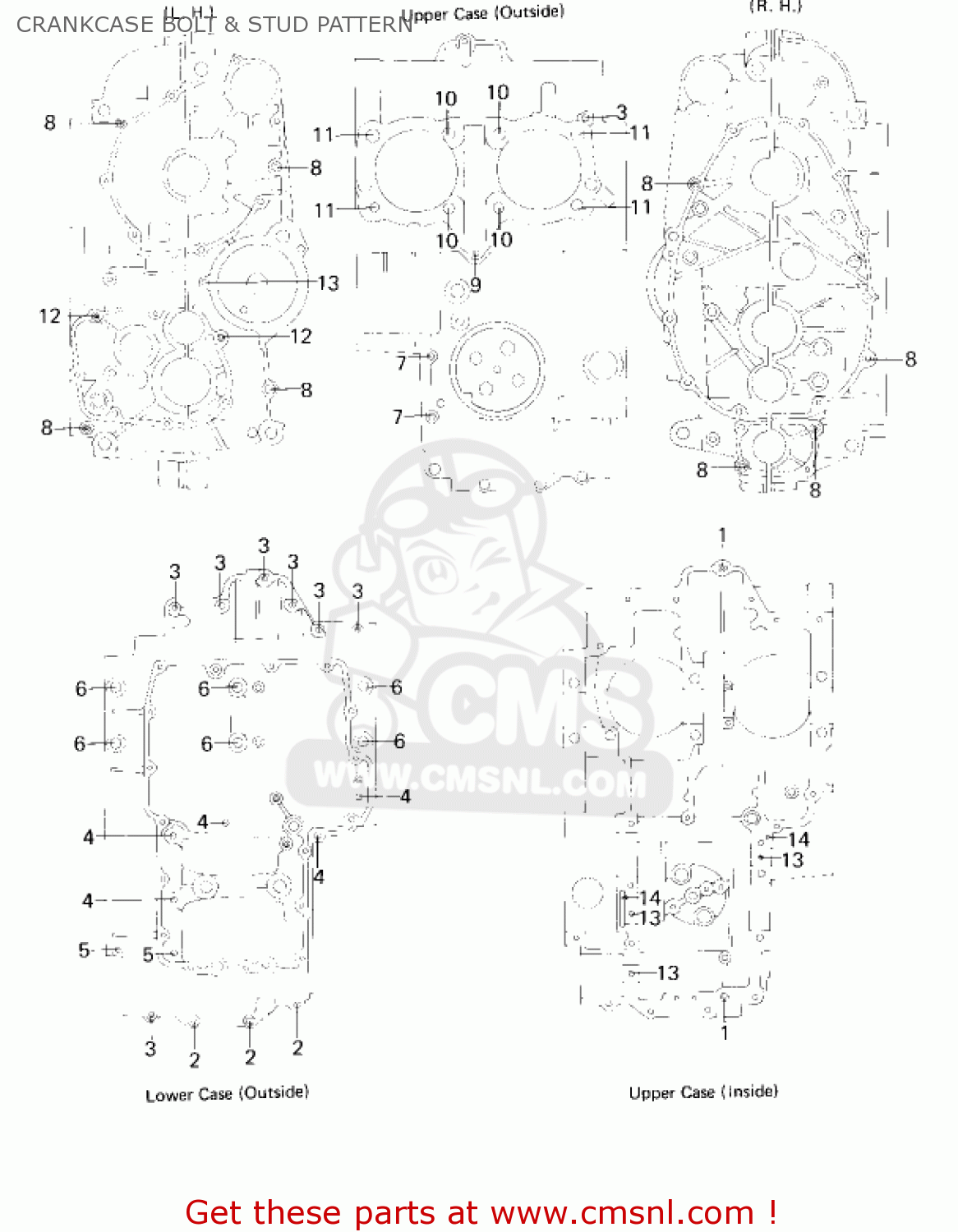

Crankcase bolt & stud pattern diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

prices are in EUR

ref

part #

description

quantity

920431037
ref: 1

PIN,DOWEL,10X8.2X14

€ 0.50

92003109
ref: 2

BOLT-HEX HEAD,6X41

€ 5.50

92003110
ref: 3

BOLT-HEX HEAD,6X54

€ 1.50

130G0695
ref: 4

BOLT-FLANGED,6X95

€ 3.50

130G0670
ref: 5

BOLT-FLANGED,6X70

€ 0.50

92003187
ref: 6

BOLT,10X115

€ 7.00

92003194
ref: 7

BOLT,6X105

€ 1.50

920431037
ref: 8

PIN,DOWEL,10X8.2X14

€ 0.50

92004059
ref: 9
PARTS ARE INCLUDED I

STUD

€ 4.00

920041002
ref: 10
PARTS ARE INCLUDED I

STUD, 10X167

€ 10.50

920041003
ref: 11
PARTS ARE INCLUDED I

STUD, 10X158

€ 10.50

92042007
ref: 12

PIN-DOWEL

€ 4.00

92042016
ref: 13

PIN,DOWEL,6X16

€ 3.50

92062011
ref: 14
PARTS ARE INCLUDED I

NOZZLE,OIL

€ 5.50
