FRAME FITTINGS/BATTERY CASE

KZ750G1 1980 USA CANADA / LTDII MPH KPH

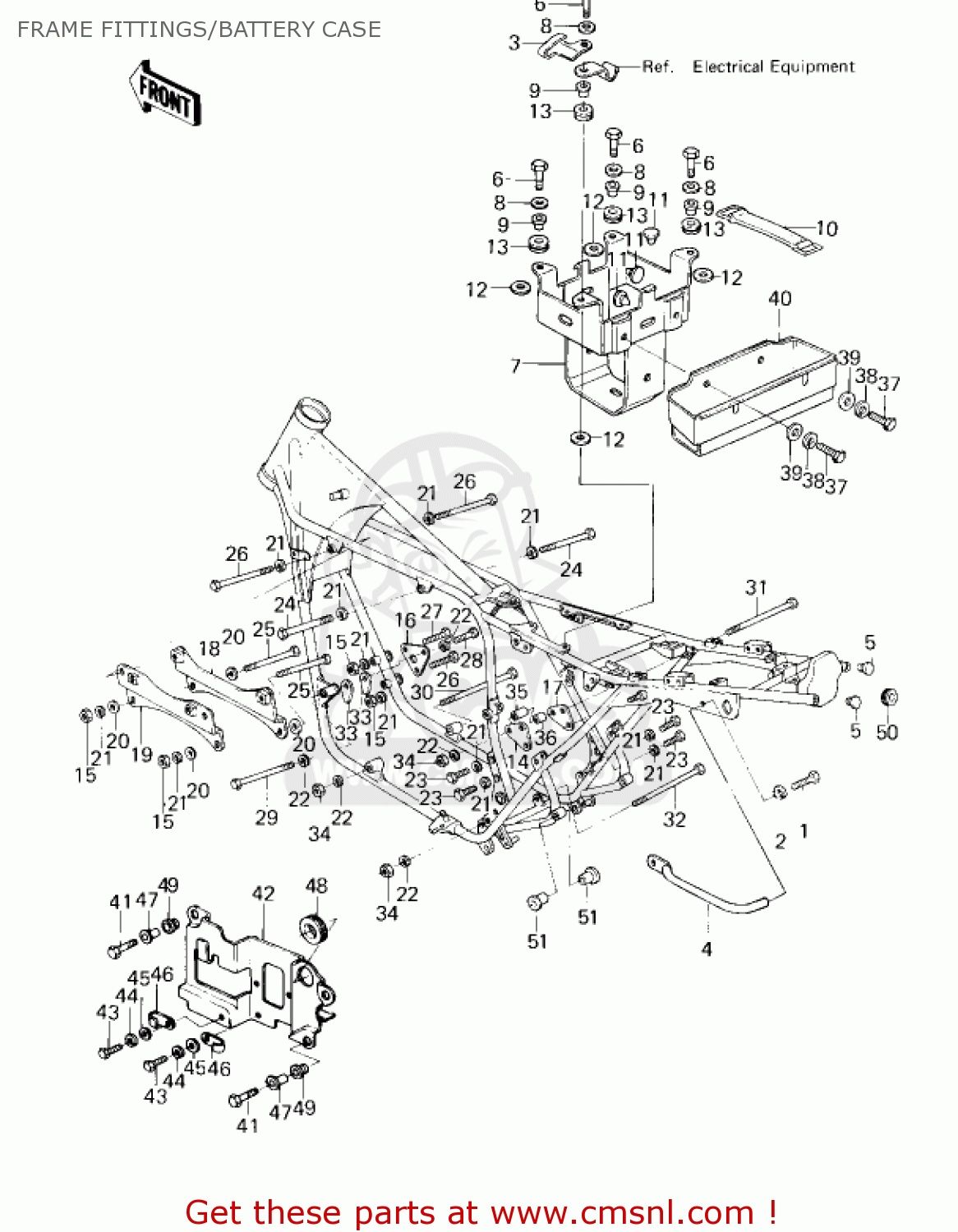

Frame fittings/battery case diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

FRAME FITTINGS/BATTERY CASE KZ750G1 1980 USA CANADA / LTDII MPH KPH
FRAME FITTINGS/BATTERY CASE KZ750G1 1980 USA CANADA / LTDII MPH KPH
FRAME FITTINGS/BATTERY CASE KZ750G1 1980 USA CANADA / LTDII MPH KPH
prices are in EUR
ref
part #
description
quantity
1
115G0816
ref: 1
BOLT-HEX,HEAD 8X16
115G0816
€ 0.50
2
461F0800
ref: 2
WASHER-SPRING,8MM
461F0800
€ 0.50
3
270121009
ref: 3
HOOK,HELMET
270121009
€ 1.50
4
321091011
ref: 4
FRAME GRIP
€ 13.00
5
32112008
ref: 5
PLUG,22X3
32112008
€ 3.00
6
112G0625
ref: 6
BOLT-UPSET,6X25
112G0625
€ 4.00
7
320971006
ref: 7
CASE,BATTERY
€ 35.50
8
92022125
ref: 8
WASHER,6.5X20X1.6
92022125
€ 1.00
9
92027194
ref: 9
COLLAR
92027194
€ 3.50
10
92072071
ref: 10
BAND,BATTERY
92072071
€ 6.50
11
92075078
ref: 11
DAMPER,RUBBER
92075078
€ 2.50
12
92075166
ref: 12
DAMPER RUBBER
€ 2.00
13
92075277
ref: 13
DAMPER
92075277
€ 1.00
14
131691048
ref: 14
PLATE,REAR ENGINE
€ 9.00
15
311B0800
ref: 15
NUT,8MM
311B0800
€ 0.50
16
32030047
ref: 16
PLATE,ENG FIT,FRONT
€ 7.50
17
32030049
ref: 17
PLATE,ENG FIT,RR,R.H
€ 8.50
18
32030070
ref: 18
PLATE, ENGINE HEAD
€ 7.50
19
32030071
ref: 19
PLATE, ENGINE HEAD
€ 7.50
20
411B0800
ref: 20
WASHER-PLAIN,8MM
411B0800
€ 0.50
21
461F0800
ref: 21
WASHER-SPRING,8MM
461F0800
€ 0.50
22
461F1000
ref: 22
WASHER-SPRING,10MM
461F1000
€ 0.50
23
920011577
ref: 23
BOLT,FLANGED,8X35
920011577
€ 2.50
24
920011182
ref: 24
BOLT,10X45
€ 6.00
25
920011398
ref: 25
BOLT,FLANGED 8X55
920011398
€ 2.50
26
110G0859
ref: 26
BOLT,HEX HEAD,8X59
€ 3.50
27
920011583
ref: 27
BOLT,FLANGED,8X70
920011583
€ 6.00
28
920011254
ref: 28
BOLT,HEX HEAD,10X50
920011254
€ 2.50
29
920011618
ref: 29
BOLT,FLANGED,10X70
920011618
€ 7.00
30
920011654
ref: 30
BOLT,FLANGED,10X325
920011654
€ 17.50
31
92003185
ref: 31
BOLT
€ 9.00
32
92003186
ref: 32
BOLT
€ 2.50
33
92016055
ref: 33
NUT
92016055
€ 6.00
34
92019021
ref: 34
NUT,LOCK,10M/M
92019021
€ 2.00
35
92027245
ref: 35
L = 47 M/M
COLLAR
92027245
€ 7.00
36
92027246
ref: 36
L = 31 M/M
COLLAR
92027246
€ 9.00
37
112G0612
ref: 37
BOLT-UPSET
112G0612
€ 2.50
38
461F0600
ref: 38
WASHER-SPRING,6MM
461F0600
€ 0.50
39
411B0600
ref: 39
WASHER-PLAIN,6MM
411B0600
€ 0.50
40
32098026
ref: 40
CASE,TOOL
€ 14.00
41
112G0620
ref: 41
BOLT 6X20
112G0620
€ 1.00
42
110341104
ref: 42
BRACKET,ELECTRO BASE
€ 14.50
43
112G0612
ref: 43
BOLT-UPSET
112G0612
€ 2.50
44
461F0600
ref: 44
WASHER-SPRING,6MM
461F0600
€ 0.50
45
410B0600
ref: 45
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
46
21126008
ref: 46
CLAMP,WIRING HARNESS
21126008
€ 3.00
47
92027194
ref: 47
COLLAR
92027194
€ 3.50
48
92071092
ref: 48
GROMMET
€ 1.00
49
92075277
ref: 49
DAMPER
92075277
€ 1.00
50
92071059
ref: 50
GROMMET
92071059
€ 2.50
51
92092010
ref: 51
BUSHING-MUFFLER FITT
92092010
€ 11.00
