CYLINDER/PISTONS

KZ750G1 1980 USA CANADA / LTDII MPH KPH

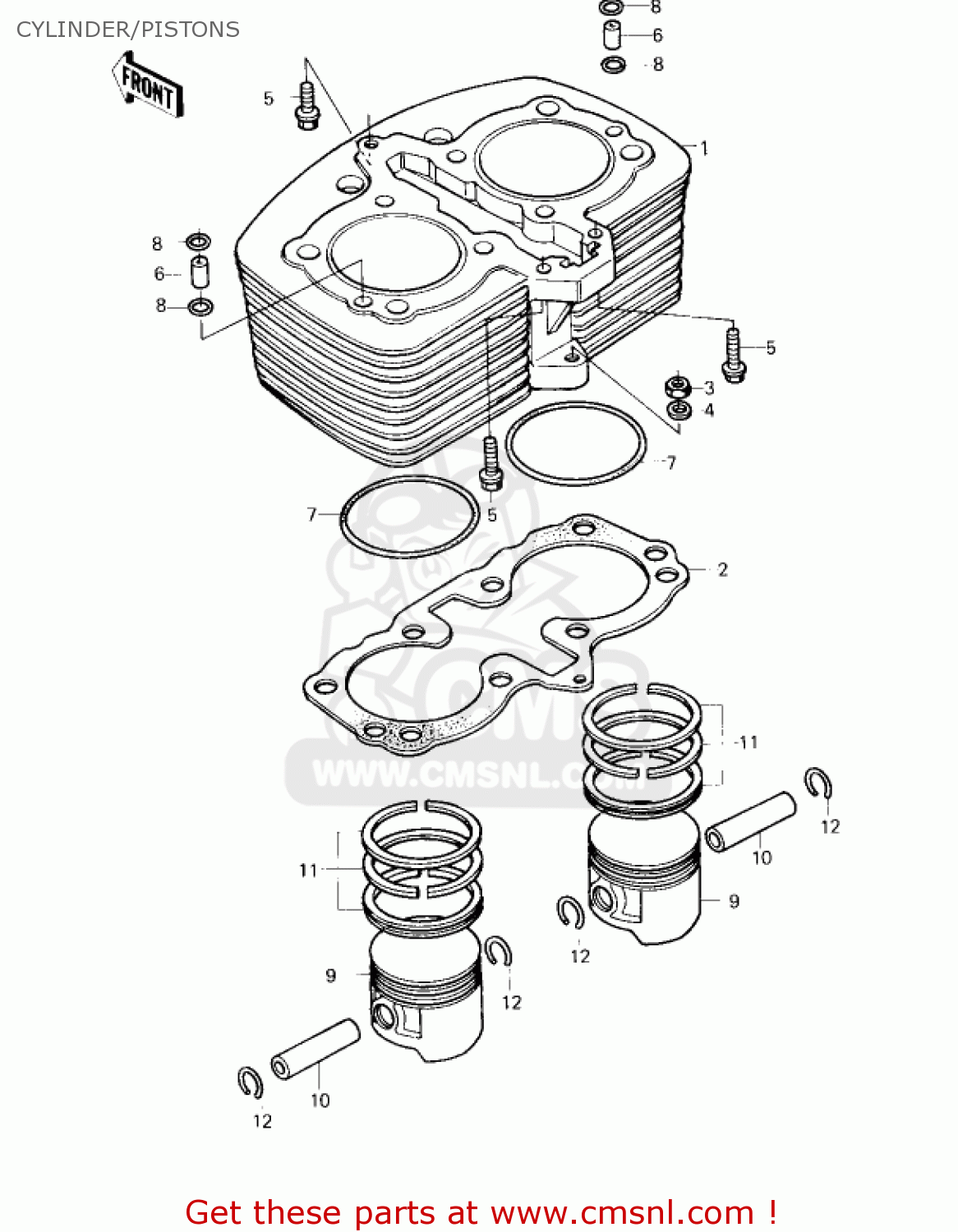

Cylinder/pistons diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

prices are in EUR

ref

part #

description

quantity

110051502H
ref: 1
BARREL

CYLINDER,BARREL

€ 414.00

11009042
ref: 2

GASKET,CYLINDER BASE (MCA)

€ 10.50

311G0600
ref: 3

NUT,6M/M

€ 0.50

410B0600
ref: 4

WASHER-PLAIN-SMALL,6M

€ 0.50

92003159
ref: 5

BOLT,HEX HEAD,6X34

€ 2.50

92042039
ref: 6

PIN,DOWEL

€ 3.00

92055081
ref: 7

'O' RING

€ 12.00

92055094
ref: 8

RING-O

€ 6.00

130011086
ref: 9

PISTON-ENGINE,STD

€ 50.50

130291039
ref: 9

PISTON-ENGINE L,O/S 0

€ 70.50

130271038
ref: 9

PISTON-ENGINE LL,0/S

€ 64.50

13002031
ref: 10

PIN-PISTON

€ 17.50

13008055
ref: 11

RING-SET-PISTON,STD

€ 67.50

13025059
ref: 11

RING-SET-PISTON L,O/S

€ 70.50

13024059
ref: 11

RING-SET-PISTON LL,O/

€ 80.00

92036008
ref: 12

CIRCLIP-PISTON PIN

€ 0.50
