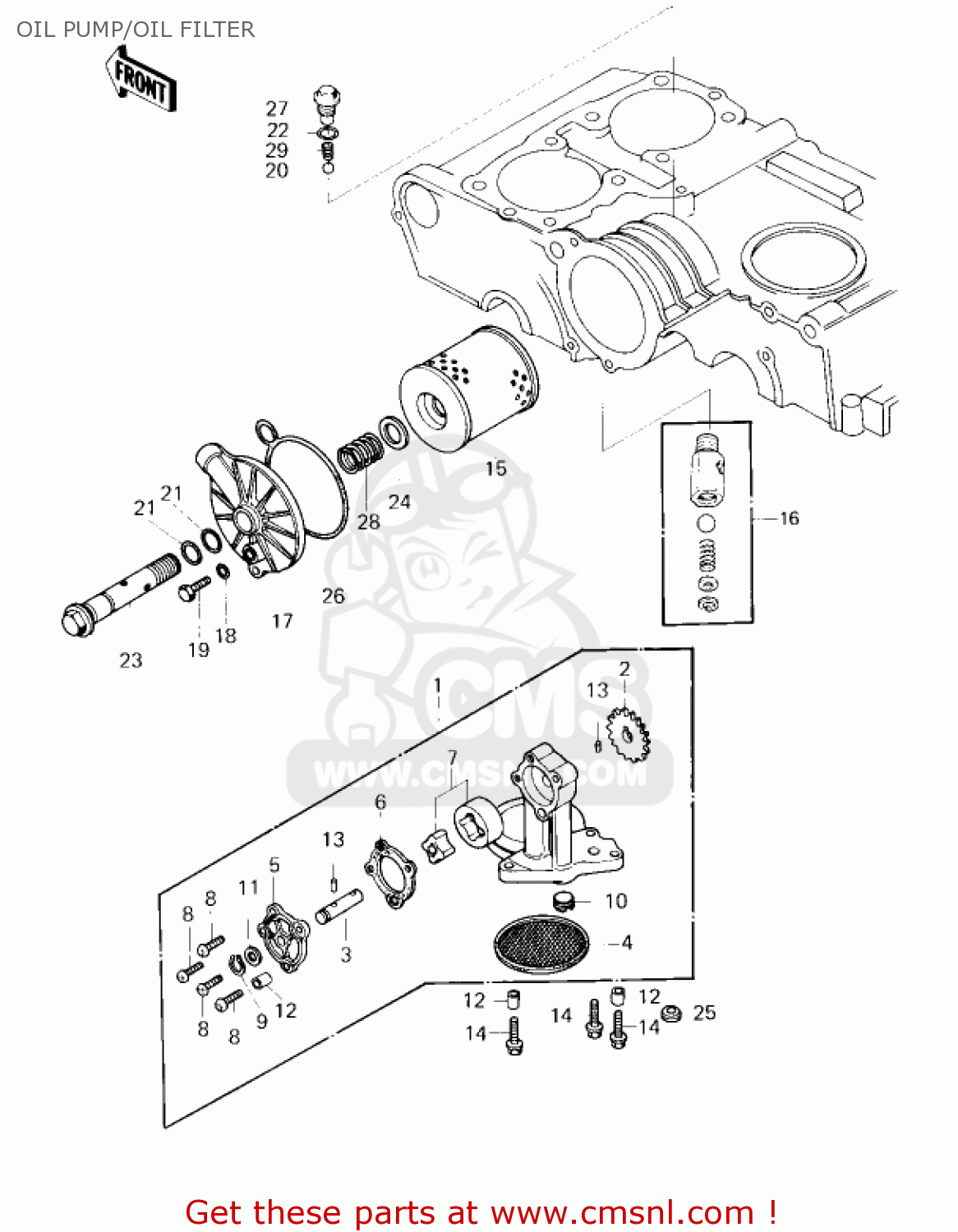

OIL PUMP/OIL FILTER

ref

part #

description

quantity

1

16082062
ref: 1

OIL PUMP ASSY

€ 227.00

2

16085024
ref: 2
30T

GEAR,OIL PUMP

€ 37.50

3

16086004
ref: 3

SHAFT,OIL PUMP

€ 17.00

4

16111004
ref: 4

FILTER,OIL PUMP

€ 23.50

5

16142004
ref: 5

COVER,OIL PUMP

€ 22.00

6

16145003
ref: 6

GASKET,OIL PUMP (MCA)

€ 2.50

7

16154003
ref: 7

ROTOR-PUMP

€ 47.50

8

220B0622
ref: 8

SCREW-PAN HEAD,6X22

€ 2.50

9

480J1100
ref: 9

CIRCLIP-TYPE-C,11MM

€ 0.50

10

92013008
ref: 10

SCREW,SLOTTED

€ 2.00

11

92022311
ref: 11

WASHER,PLAIN

€ 2.50

12

920431302
ref: 12

PIN,DOWEL,8X10

€ 1.00

13

92042041
ref: 13

PIN,DOWEL

€ 4.50

14

92003109
ref: 14

BOLT-HEX HEAD,6X41

€ 5.50

15

16099002
ref: 15

ELEMENT-OIL FILTER

€ 13.00

16

161301001
ref: 16

VALVE-ASSY-RELIEF

€ 28.50

17

16146002
ref: 17

COVER,OIL FILTER

€ 19.50

18

670B1508
ref: 18

O RING,8MM

€ 1.00

19

92066024
ref: 19

PLUG,30X8

€ 8.00

20

600A1200
ref: 20

BALL-STEEL,3/8

€ 0.50

21

670B2016
ref: 21

O RING,16MM

€ 1.00

22

670B2018
ref: 22

O RING,18MM

€ 1.00

23

92003189
ref: 23

BOLT,OIL FILTER

€ 58.50

24

920221012
ref: 24

WASHER,20.5X30X1

€ 3.00

25

92055048
ref: 25

RING-O,OD=18

€ 3.00

26

92055084
ref: 26

RING-O

€ 15.50

27

92066050
ref: 27

PLUG,FILTER COVER

€ 3.50

28

920811018
ref: 28

SPRING,OIL FILTER

€ 3.00

29

92081109
ref: 29

SPRING

€ 7.50
