FUEL TANK

KZ750G1 1980 USA CANADA / LTDII MPH KPH

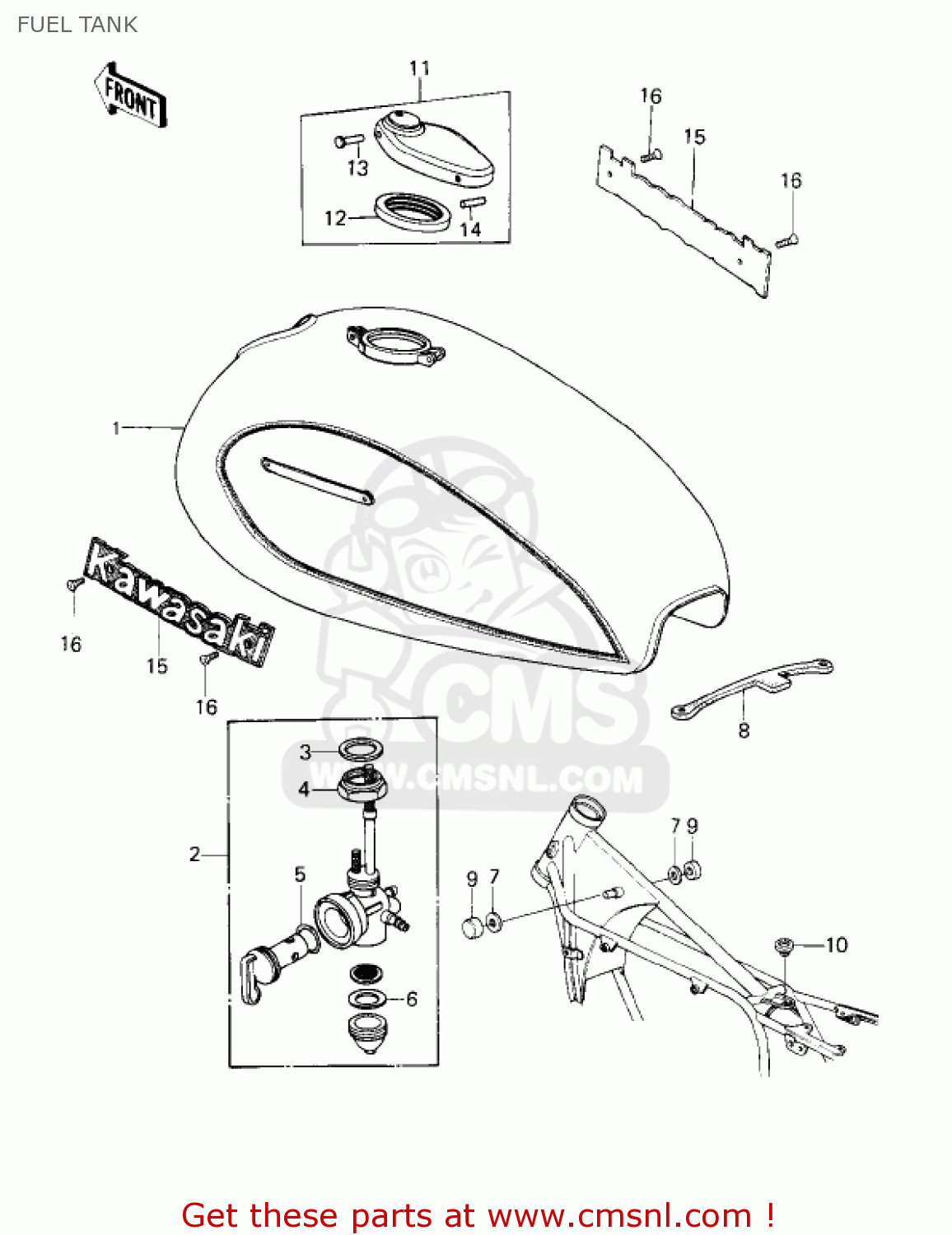

Fuel tank diagram KZ750G1 1980 USA CANADA / LTDII MPH KPH

prices are in EUR

ref

part #

description

quantity

51001106D2
ref: 1

FUEL TANK,LUMINOUS RUBY RED

€ 1,560.00

51023050
ref: 2

TAP-ASSY,FUEL

€ 92.00

92065081
ref: 3

GASKET-FUEL COCK JONT (NAS)

€ 3.50

51035009
ref: 4

NUT,FUEL COCK JOINT

€ 6.00

670B2010
ref: 5

O RING,10MM

€ 1.00

51037010
ref: 6

GASKET-FUEL COCK CUP (NAS)

€ 3.50

92022044
ref: 7

WASHER,10.5X26X2.3

€ 2.50

92072042
ref: 8

BAND,FUEL TANK

€ 9.00

92075125
ref: 9

DAMPER RUBBER-FL TANK

€ 4.00

92075274
ref: 10

DAMPER,FUEL TANK

€ 4.50

51048012
ref: 11

CAP-ASSY-TANK,FUEL

€ 72.00

51059008
ref: 12

GASKET,FUEL TANK CAP (NAS)

€ 7.00

92043126
ref: 13

PIN,3X27

€ 2.50

92043127
ref: 14

PIN,CAP HINGE

€ 3.00

560141037
ref: 15

EMBLEM,FUEL TANK

€ 41.50

221C0306
ref: 16

SCREW-CSR-CROS

€ 0.50
