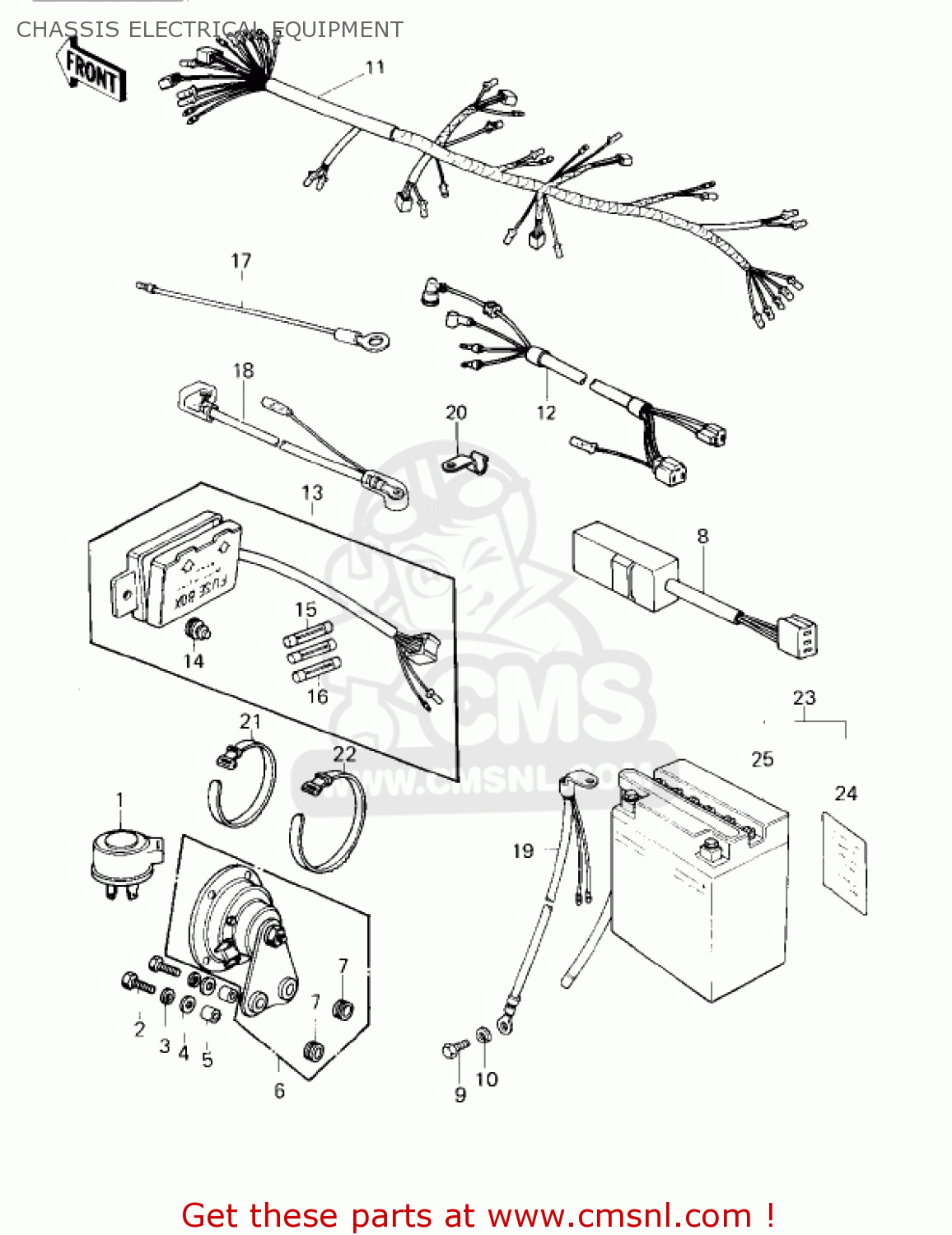

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

1

27002011
ref: 1

RELAY-ASSY,TURN SIGNA

€ 69.50

2

114G0828
ref: 2

BOLT-SMALL,8X28

€ 2.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

411B0800
ref: 4

WASHER-PLAIN,8MM

€ 0.50

5

92027271
ref: 5

COLLAR,HORN FITTING

€ 2.00

6

27003074
ref: 6

HORN

€ 55.50

7

92075294
ref: 7

DAMPER RUBBER,HORN MT

€ 2.50

8

28019001
ref: 8

SWITCH,OUTAGE INDICTR

€ 46.00

9

112G0612
ref: 9

BOLT-UPSET

€ 2.50

10

461F0600
ref: 10

WASHER-SPRING,6MM

€ 0.50

11

260011102
ref: 11

WIRING HARNESS,MAIN

€ 183.50

12

260011024
ref: 12

WIRING HARNESS,SUB

€ 28.00

13

26004035
ref: 13

FUSE-ASSY

€ 53.50

14

92075279
ref: 14

DAMPER,FUSE

€ 3.50

15

26006005
ref: 15

FUSE 20A

€ 3.50

16

26006003
ref: 16

FUSE 10A

€ 3.00

17

26011063
ref: 17

WIRE-LEAD,L=185

€ 5.00

18

260111146
ref: 18

WIRE-LEAD,BATTERY

€ 16.50

19

260111146
ref: 19

WIRE-LEAD,BATTERY

€ 16.50

20

920371044
ref: 20

CLAMP

€ 2.50

21

92072030
ref: 21

BAND,SHORT

€ 3.00

22

92072056
ref: 22

BAND,RUBBER

€ 3.00

23

260121008
ref: 23

BATTERY,12V13AH W/LAB

€ 101.50

24

560401036
ref: 24

WARNING, BATTERY

€ 2.00

25

260121008
ref: 25
USE FOR CANADIAN MAR

BATTERY,12V13AH W/LAB

€ 101.50

all assemblies
