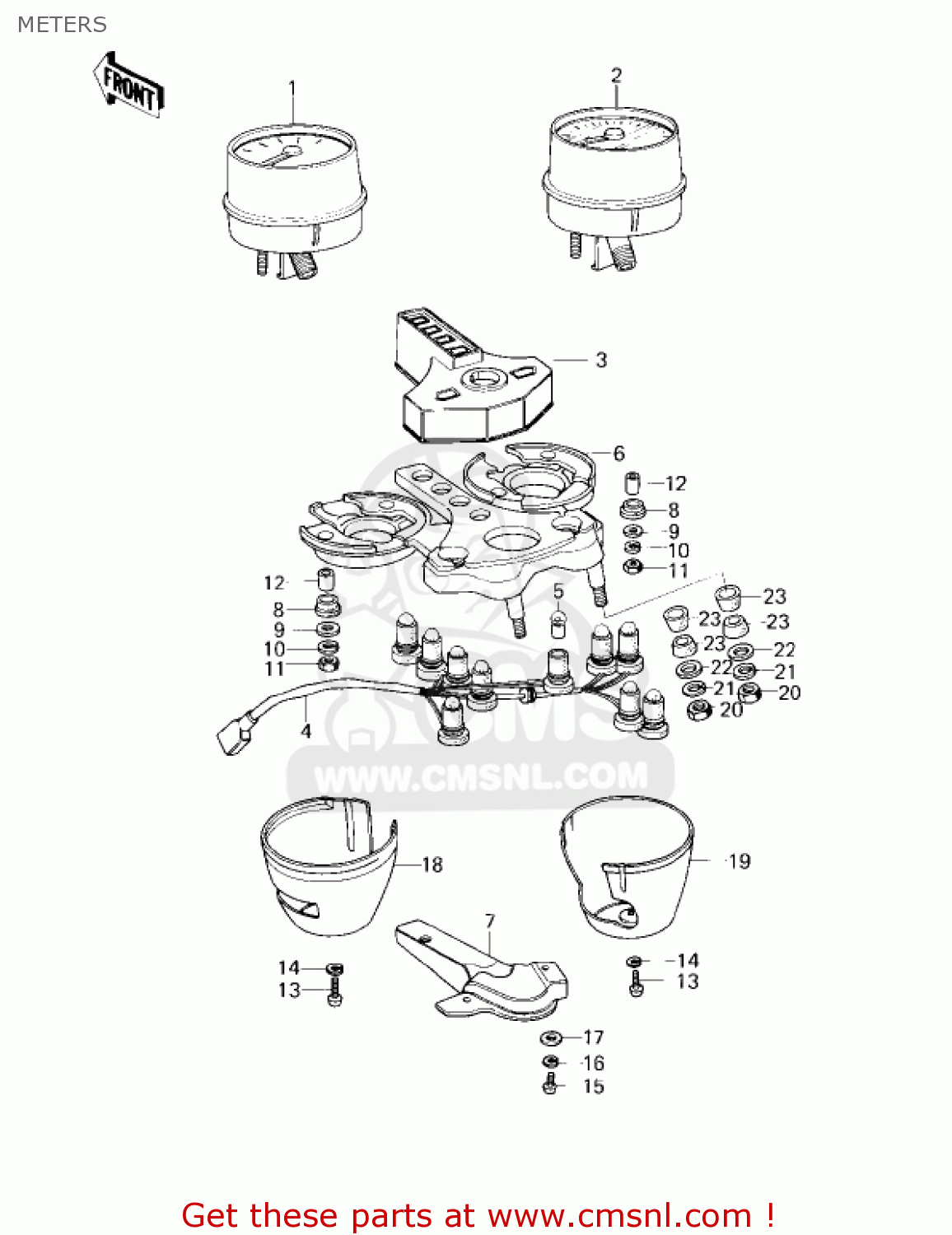

METERS

ref

part #

description

quantity

1

250051068
ref: 1

SPEEDOMETER ASSEMBLY,MPH

€ 382.50

1

250051013
ref: 1

SPEEDOMETER ASSY,KPH

€ 409.50

2

250151008
ref: 2

TACHOMETER ASSY

€ 204.00

3

25023015
ref: 3

COVER-METER CASE

€ 98.00

4

25011049
ref: 4

SOCKET,SPEEDOMETER

€ 155.00

5

92069018
ref: 5

BULB 12V 3W

€ 4.00

6

25008045
ref: 6

BRACKET,SPEEDOMETER

€ 156.00

7

25024006
ref: 7

COVER,METER BRACKET

€ 14.50

8

92075172
ref: 8

DAMPER

€ 12.50

9

92022241
ref: 9

WASHER,5.2X15X1.6

€ 2.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

312B0500
ref: 11

NUT-HEX,5MM

€ 0.50

12

92027211
ref: 12

COLLAR,5.6X8X13.8

€ 8.50

13

220B0308
ref: 13

SCREW-PAN-CROS

€ 0.50

14

461F0300
ref: 14

WASHER-SPRING,3MM

€ 0.50

15

220B0308
ref: 15

SCREW-PAN-CROS

€ 0.50

16

461F0300
ref: 16

WASHER-SPRING,3MM

€ 0.50

17

410B0300
ref: 17

WASHER-PLAIN-SMALL,3M

€ 0.50

18

25012023
ref: 18

COVER,SPEEDOMETER

€ 205.00

19

25012024
ref: 19

COVER,TACHOMETER

€ 205.00

20

311B0800
ref: 20

NUT,8MM

€ 0.50

21

461F0800
ref: 21

WASHER-SPRING,8MM

€ 0.50

22

92022035
ref: 22

WASHER-FUEL TANK FIT

€ 2.50

23

92075080
ref: 23

DAMPER

€ 5.50
