SWING ARM/SHOCK ABSORBERS ('80-'

KE125-A10 KE125 1983 USA USA CANADA

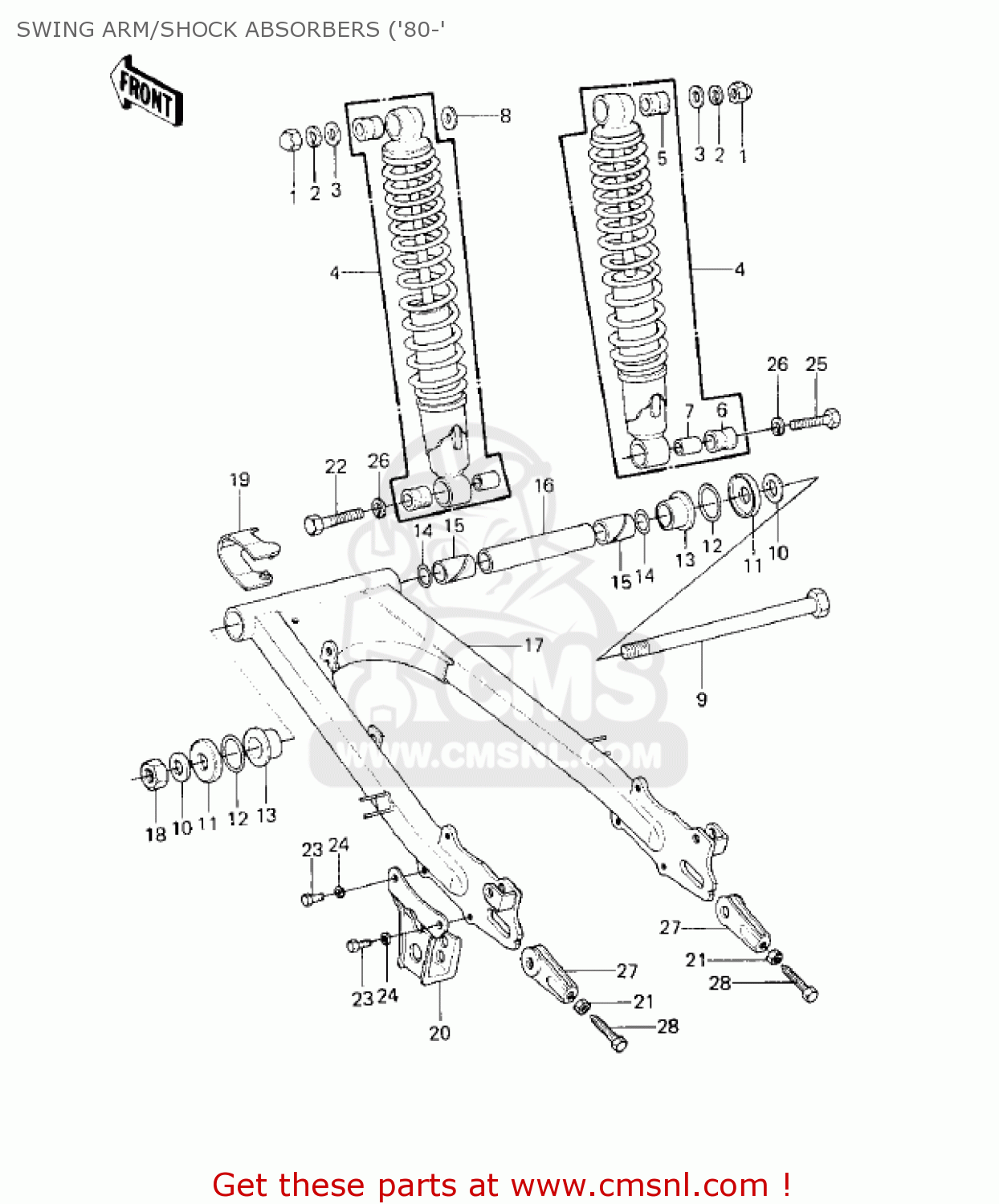

Swing arm/shock absorbers ('80-' diagram KE125-A10 KE125 1983 USA USA CANADA

SWING ARM/SHOCK ABSORBERS ('80-' KE125-A10 KE125 1983 USA USA CANADA

SWING ARM/SHOCK ABSORBERS ('80-' KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92020003
ref: 1

NUT-SHOCK ABSORBER

€ 4.00

2

461F1000
ref: 2

WASHER-SPRING,10MM

€ 0.50

3

92022044
ref: 3

WASHER,10.5X26X2.3

€ 2.50

4

450141092
ref: 4
KE125-A7

SHOCK ABSORBER,SWIT

€ 224.00

4

450141092
ref: 4
KE125-A8

SHOCK ABSORBER,SWIT

€ 224.00

5

45017010
ref: 5

BUSH A-SHCK ABS RUBER

€ 9.00

6

920751020
ref: 6

DAMPER,SHOCKABSORBER

€ 3.00

7

45016003
ref: 7

COLLAR,SHOCKABSORBER

€ 12.50

8

410B1200
ref: 8

WASHER-PLAIN-SMALL,12

€ 0.50

9

33032034
ref: 9

SHAFT-SWING ARM

€ 22.50

10

410B1200
ref: 10

WASHER-PLAIN-SMALL,12

€ 0.50

11

33035005
ref: 11

CAP,SWING ARM

€ 5.50

12

671B2530
ref: 12

O RING,30MM

€ 3.00

13

33033009
ref: 13

BUSHING,SWING ARM

€ 57.00

14

92055001
ref: 14

RING-O,16MM

€ 2.00

15

33034016
ref: 15

SLEEVE,12.1X22X39

€ 14.50

16

33036007
ref: 16

COLLAR,12.7X17.3X106

€ 6.00

17

330011060
ref: 17

SWING ARM

€ 205.50

18

92019009
ref: 18

NUT,LOCK,12MM

€ 5.00

19

550201063
ref: 19

GUARD,CHAIN,FR

€ 8.00

20

550201026
ref: 20

GUARD,CHAIN,RR

€ 15.50

21

312B0800
ref: 21

NUT,8MM

€ 0.50

22

113N1035
ref: 22

BOLT-HEX HEAD,10X35

€ 6.00

23

112G0612
ref: 23

BOLT-UPSET

€ 2.50

24

461F0600
ref: 24

WASHER-SPRING,6MM

€ 0.50

25

113N1035
ref: 25

BOLT-HEX HEAD,10X35

€ 6.00

26

461F1000
ref: 26

WASHER-SPRING,10MM

€ 0.50

27

330401001
ref: 27

ADJUSTER-CHAIN

€ 15.50

28

920011399
ref: 28

BOLT,8X50

€ 6.00
