SEAT ('80-'81 A7/A8)
KE125-A10 KE125 1983 USA USA CANADA

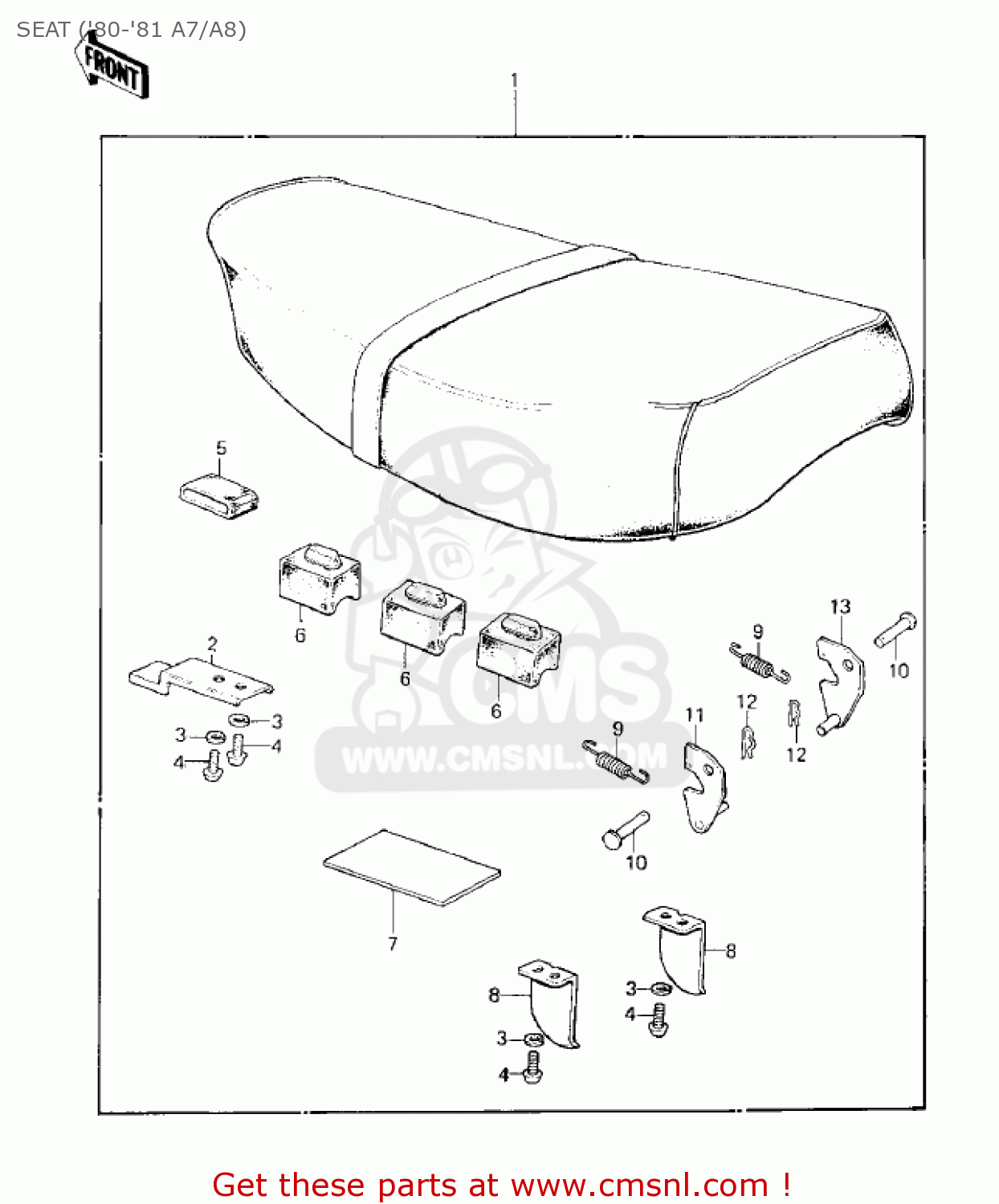

Seat ('80-'81 a7/a8) diagram KE125-A10 KE125 1983 USA USA CANADA
SEAT ('80-'81 A7/A8) KE125-A10 KE125 1983 USA USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
530011081
ref: 1
SEAT ASSEMBLY
€ 354.50
2
53032005
ref: 2
BRACKET,DUAL SEAT
€ 7.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
€ 0.50
4
220B0614
ref: 4
SCREW-PAN HEAD,6X14
€ 2.00
5
92075219
ref: 5
DAMPER,SEAT
€ 4.50
6
92075216
ref: 6
DAMPER,SEAT
€ 3.00
7
92075224
ref: 7
DAMPER,RUBBER
€ 4.50
8
53059001
ref: 8
STOPPER,SEAT
€ 7.50
9
53012013
ref: 9
SPRING,HOOK
€ 10.50
10
53011001
ref: 10
PIN,6X12
€ 2.50
11
53008028
ref: 11
HOOK,SEAT,L.H
€ 3.00
12
554A0600
ref: 12
PIN-SNAP,SIDE STAND
€ 0.50
13
53008029
ref: 13
HOOK SEAT,R.H
€ 3.50
