Genuine KE Kawasaki Parts delivered quickly!


GENERATOR/REGULATOR ('82-'83 A9/

KE125-A10 KE125 1983 USA USA CANADA

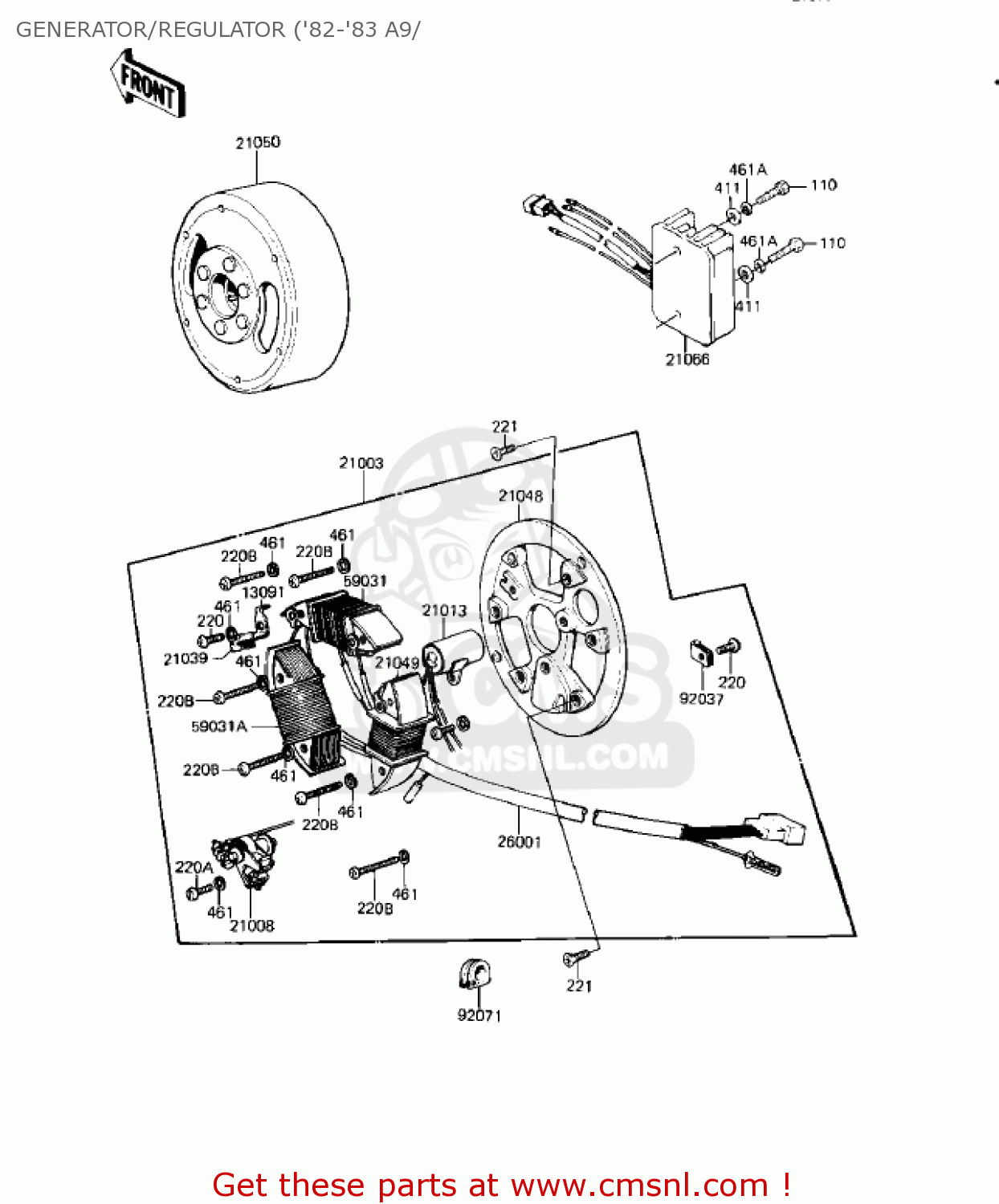

Generator/regulator ('82-'83 a9/ diagram KE125-A10 KE125 1983 USA USA CANADA

GENERATOR/REGULATOR ('82-'83 A9/ KE125-A10 KE125 1983 USA USA CANADA
GENERATOR/REGULATOR ('82-'83 A9/ KE125-A10 KE125 1983 USA USA CANADA
GENERATOR/REGULATOR ('82-'83 A9/ KE125-A10 KE125 1983 USA USA CANADA
prices are in EUR
ref
part #
description
quantity
13091
21038002
ref: 13091
HOLDER,OIL FELT
€ 2.00
21003
210031014
ref: 21003
STATOR
€ 203.50
21008
21008006
ref: 21008
BREAKER ASSY-CONTACT
21008006
€ 33.50
21013
21013006
ref: 21013
CONDENSER
21013006
€ 21.00
21039
21019005
ref: 21039
BRUSH,OIL
21019005
€ 3.00
21048
210481002
ref: 21048
PLATE-COIL,MAGNETO
€ 46.50
21049
210491004
ref: 21049
COIL-EXCITING
210491004
€ 73.50
21050
210501008
ref: 21050
FLYWHEEL,MAGNETO
€ 275.50
21066
210661012
ref: 21066
REGULATOR-VOLTAGE
210661012
€ 148.50
26001
260011077
ref: 26001
MAGNETO WIRING HARNESS
€ 40.00
59031
590311001
ref: 59031
COIL-CHARGING,A
590311001
€ 65.00
59031A
590311002
ref: 59031A
COIL-CHARGING,B
€ 68.50
92037
21037002
ref: 92037
CLAMP,WIRING HARNESS
21037002
€ 2.50
92071
21017002
ref: 92071
GROMMET
21017002
€ 3.00
110
112G0625
ref: 110
BOLT-UPSET,6X25
112G0625
€ 4.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
220A
220B0412
ref: 220A
SCREW-PAN CROS 4X12
220B0412
€ 0.50
220B
220B0430
ref: 220B
SCREW-PAN-CROS
220B0430
€ 0.50
221
221B0614
ref: 221
SCREW-CNTSNK HD,6X14
€ 2.50
41
411B0600
ref: 41
WASHER-PLAIN,6MM
411B0600
€ 0.50
461
461F0400
ref: 461
WASHER-SPRING,4MM
461F0400
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
461F0600
€ 0.50
