REAR HUB/BRAKE/CHAIN ('80-'81 A7

KE125-A10 KE125 1983 USA USA CANADA

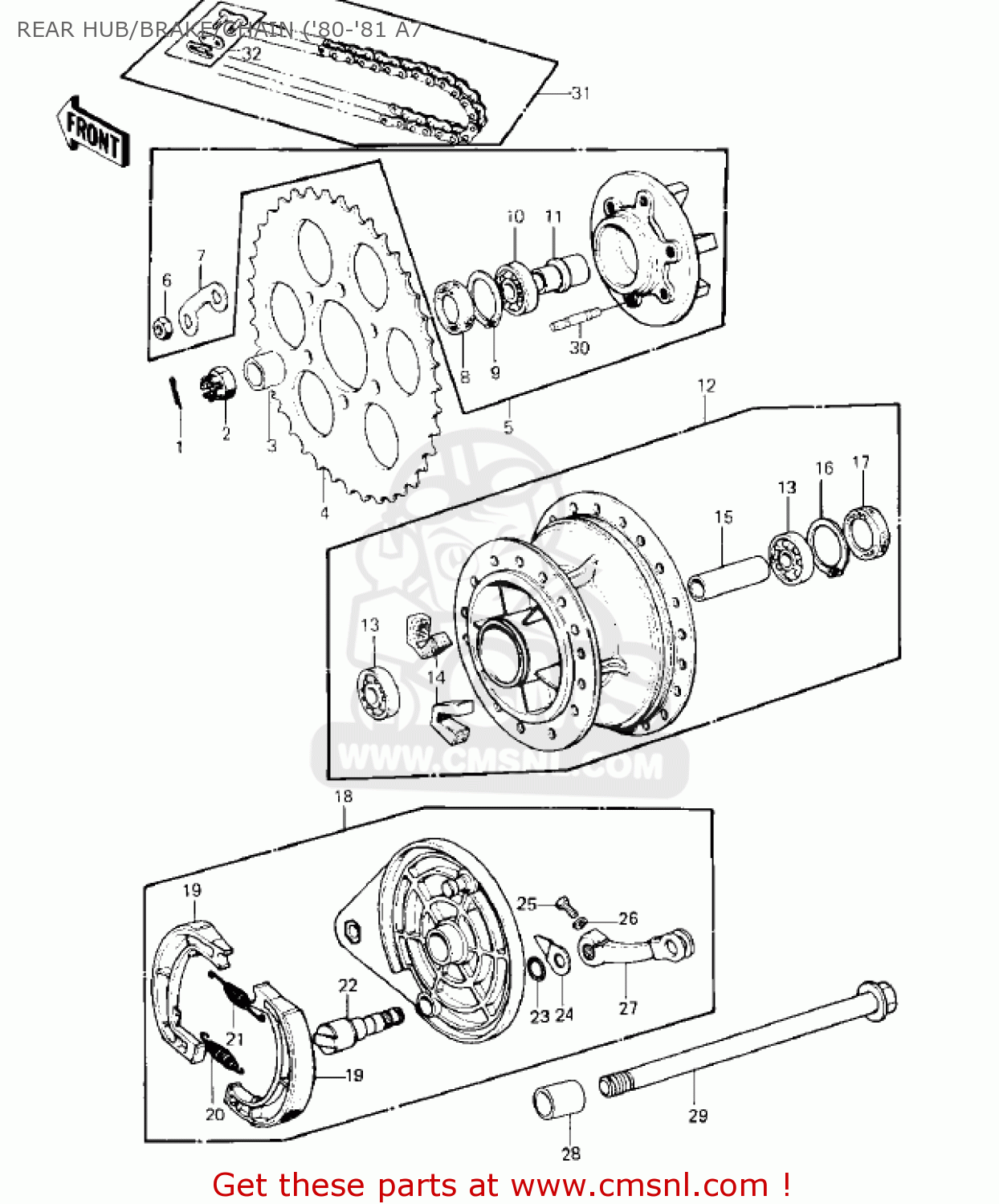

Rear hub/brake/chain ('80-'81 a7 diagram KE125-A10 KE125 1983 USA USA CANADA

REAR HUB/BRAKE/CHAIN ('80-'81 A7 KE125-A10 KE125 1983 USA USA CANADA

REAR HUB/BRAKE/CHAIN ('80-'81 A7 KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92103006
ref: 2

NUT,CASTLE,14MM

€ 9.00

3

920271253
ref: 3

COLLAR,RR BRAKE,L=22

€ 7.00

4

42041146
ref: 4

REAR SPROCKET,50T

€ 36.50

4

42041147
ref: 4

REAR SPROCKET,54T

€ 55.00

5

420331028
ref: 5

COUPLING-ASSY,RR HUB

€ 101.00

6

317B0800
ref: 6

NUT,8M/M

€ 0.50

7

92088019
ref: 7

WASHER,SPROCKET LOCK

€ 4.00

8

92050060
ref: 8

OIL SEAL,RR HUB BRNK

€ 12.00

9

920331041
ref: 9

CIRCLIP,42MM

€ 4.00

10

601B6004
ref: 10

BEARING-BALL,#6004C3

€ 10.50

11

42036018
ref: 11

SLEEVE,RR HUB COUPLN

€ 19.50

12

410341025
ref: 12

DRUM-ASSY,RR

€ 313.50

13

601B6202
ref: 13

BEARING-BALL,#6202C3

€ 14.50

14

42014023
ref: 14

DAMPER,RR HUB SHOCK

€ 10.00

15

42010029
ref: 15

COLLAR,L=60

€ 11.00

16

481J3500
ref: 16

CIRCLIP-TYPE-C,35MM

€ 1.00

17

654A223508
ref: 17

OIL SEAL

€ 7.50

18

410351036
ref: 18

PANEL ASSY,RR BRAKE

€ 198.50

19

42019010
ref: 19

SHOE,BRAKE (MCA)

€ 26.00

20

920811550
ref: 20

SPRING,BRAKE SHOE

€ 6.00

21

920811766
ref: 21

SPRING,BRAKE SHOE

€ 5.50

22

42026025
ref: 22

CAM SHAFT,REAR BRAKE

€ 13.50

23

92055004
ref: 23

RING-O,BRAKE CAM

€ 3.00

24

41085002
ref: 24

INDICATOR,BRAKE SHOE

€ 2.50

25

112G0622
ref: 25

BOLT-UPSET

€ 2.50

26

410B0600
ref: 26

WASHER-PLAIN-SMALL,6M

€ 0.50

27

42029030
ref: 27

LEVER-BRAKE CAM

€ 44.50

28

920271254
ref: 28

COLLAR,RR BRAKE,L=25

€ 16.50

29

410681049
ref: 29

AXLE,REAR,15X247

€ 48.00

30

920041015
ref: 30

STUD,8X17

€ 2.50

31

92057030
ref: 31

CHAIN ASSY,DRIVE,118L

€ 25.50

32

920581015
ref: 32

JOINT-CHAIN,EK428SH

€ 3.50
