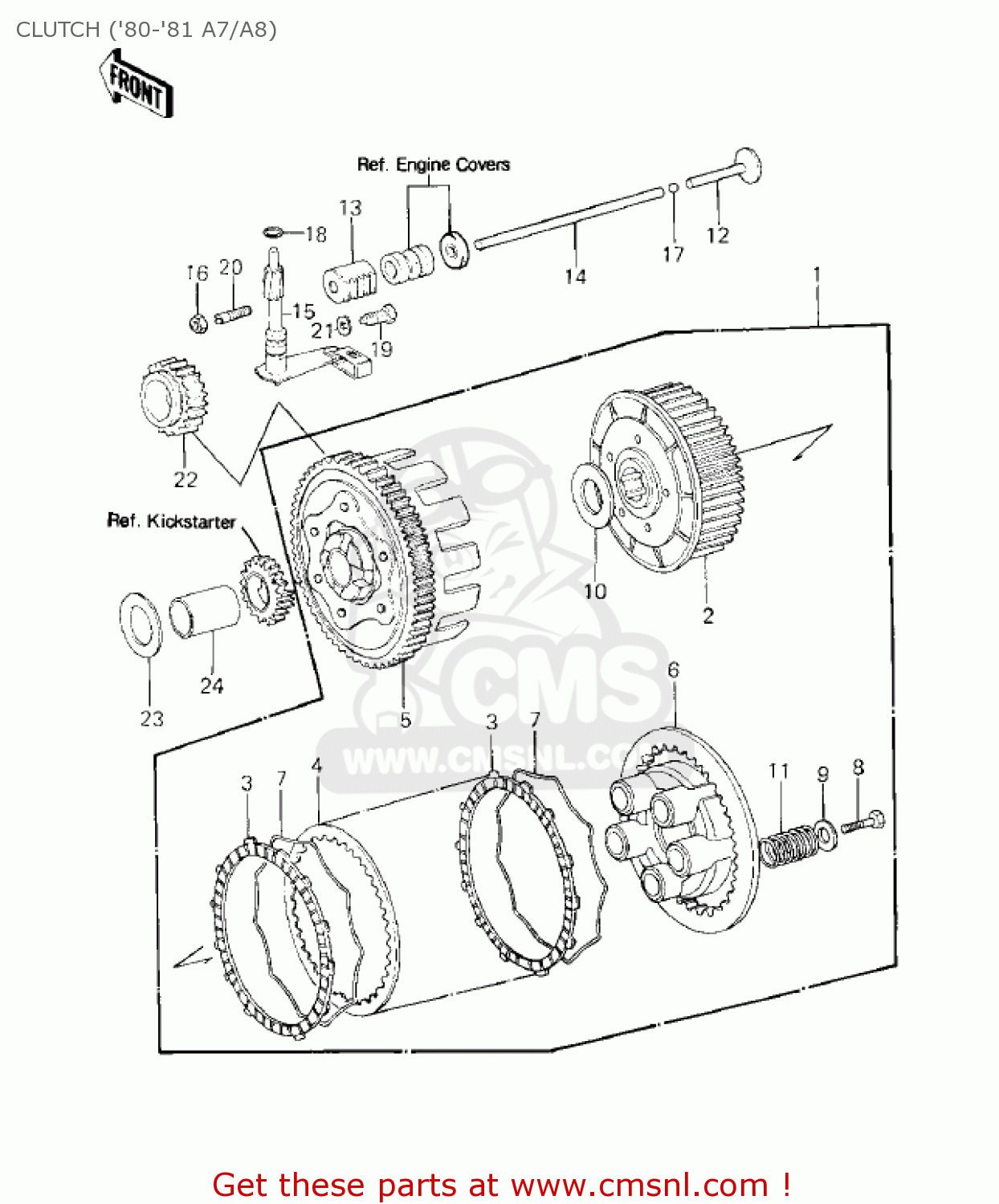

CLUTCH ('80-'81 A7/A8)

KE125-A10 KE125 1983 USA USA CANADA

Clutch ('80-'81 a7/a8) diagram KE125-A10 KE125 1983 USA USA CANADA

CLUTCH ('80-'81 A7/A8) KE125-A10 KE125 1983 USA USA CANADA

CLUTCH ('80-'81 A7/A8) KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

1

130811053
ref: 1
KE125-A7

CLUTCH ASSY

€ 187.50

2

130811053
ref: 2
KE125-A8

CLUTCH ASSY

€ 187.50

2

13087038
ref: 2

HUB-CLUTCH

€ 52.00

3

130881015
ref: 3

PLATE-FRICTION (NAS)

€ 11.50

4

13089003
ref: 4

PLATE-CLUTCH,STEEL (NAS)

€ 7.50

5

130951034
ref: 5
KE125-A7

HOUSING-COMP-CLUTCH

€ 271.00

5

130951034
ref: 5
KE125-A8

HOUSING-COMP-CLUTCH

€ 271.00

6

13187004
ref: 6

PLATE-CLUTCH OPERATIN (NAS)

€ 24.50

7

13229002
ref: 7

SPRING,CLUTCH STEEL

€ 7.50

8

92003078
ref: 8

BOLT,5X18

€ 2.00

9

92022167
ref: 9

WASHER-PLAIN,5MM

€ 1.50

10

92022270
ref: 10

WASHER,PLAIN

€ 7.00

11

92081123
ref: 11

SPRING,CLUTCH

€ 4.50

12

13116016
ref: 12

ROD-PUSH,CLUTCH SPRIN

€ 11.50

13

13116026
ref: 13

ROD-PUSH,CLUTCH RELEA

€ 19.50

14

13116027
ref: 14

ROD-PUSH,CLUTCH

€ 10.50

15

13234003
ref: 15

SHAFT-COMP,CLUTCH REL

€ 59.00

16

311B0600
ref: 16

NUT,6MM

€ 0.50

17

600A0700
ref: 17

BALL-STEEL,7/32

€ 2.50

18

670B2010
ref: 18

O RING,10MM

€ 1.00

19

92003130
ref: 19

BOLT,CLUTCH RELEASE

€ 3.50

20

92014015
ref: 20

SCREW,SET,6X26

€ 6.50

21

92031009
ref: 21

WASHER,LOCK

€ 2.00

22

130971040
ref: 22
KE125-A7

GEAR-PRIMARY SPUR,22T

€ 86.00

22

130971040
ref: 22
KE125-A8

GEAR-PRIMARY SPUR,22T

€ 86.00

23

92022270
ref: 23

WASHER,PLAIN

€ 7.00

24

92028138
ref: 24

BUSHING,17X22X33.5

€ 23.50
