ENGINE COVERS ('82-'83 A9/A10)

KE125-A10 KE125 1983 USA USA CANADA

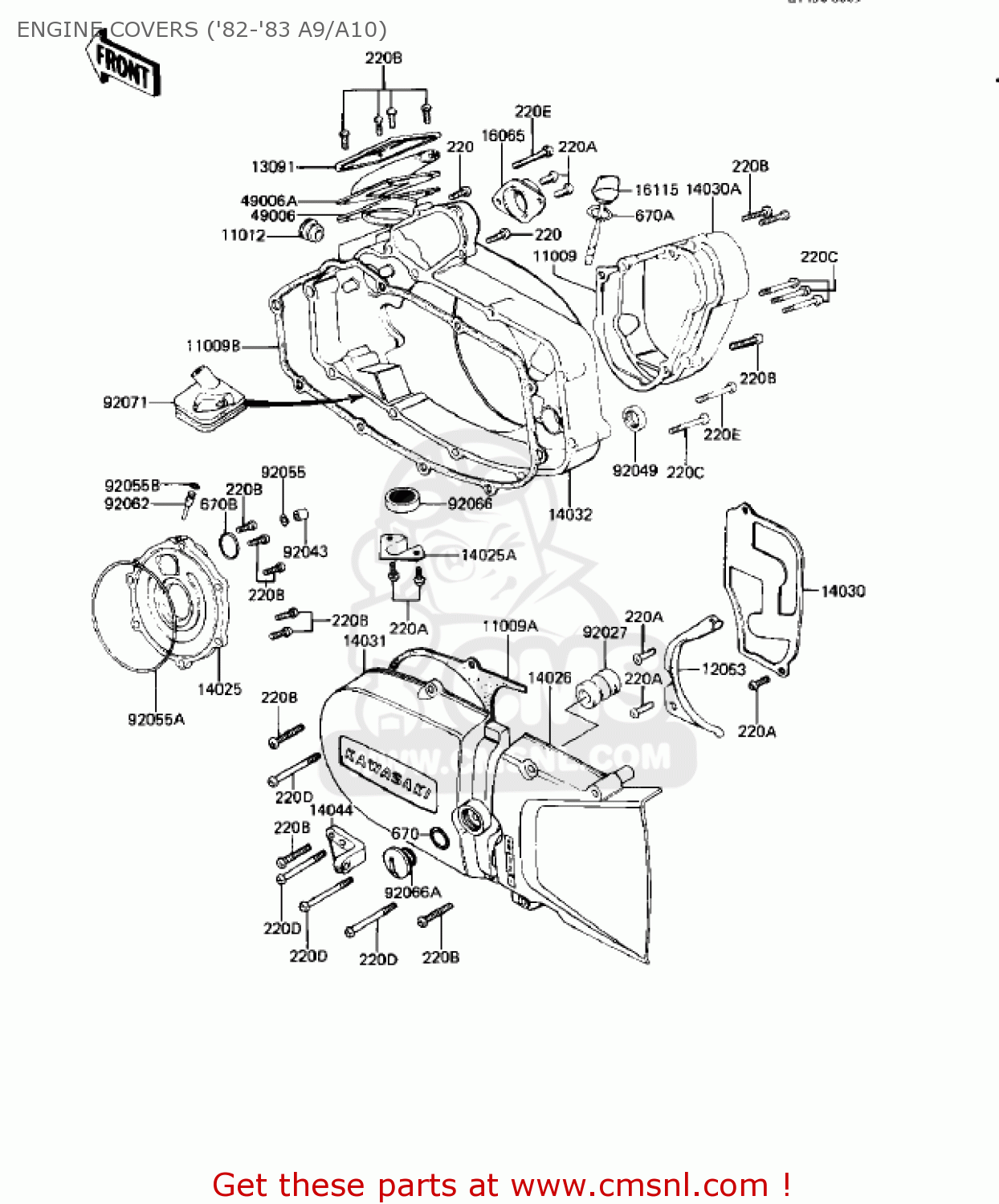

Engine covers ('82-'83 a9/a10) diagram KE125-A10 KE125 1983 USA USA CANADA

ENGINE COVERS ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA
ENGINE COVERS ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA
ENGINE COVERS ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091277
ref: 11009
GASKET,CARBURETOR COV (MCA)
110091277
€ 8.50
11009A
14045017
ref: 11009A
GASKET,L.H ENG COVER (MCA)
14045017
€ 8.00
11009B
14046029
ref: 11009B
GASKET,R.H ENG COVER (MCA)
14046029
€ 19.50
11012
14039001
ref: 11012
CAP,RUBBER
14039001
€ 3.00
12053
14077003
ref: 12053
GUIDE-CHAIN
14077003
€ 7.50
13091
14065007
ref: 13091
HOLDER,CARBURETOR BOO
14065007
€ 10.50
14025
14019055
ref: 14025
COVER,ROTARY DISC
€ 48.50
14025A
14076006
ref: 14025A
COVER,FUEL DRAIN
€ 4.50
14026
140261029
ref: 14026
COVER,CHAIN
€ 49.00
14030
14030060
ref: 14030
COVER,OIL PUMP
14030060
€ 8.50
14030A
140301013
ref: 14030A
COVER-CARBURETOR,F.BL
€ 51.00
14031
140311053
ref: 14031
COVER-GENERATOR,F.BLA
€ 104.50
14032
140321035
ref: 14032
COVER,CLUTCH
€ 110.00
14044
14044012
ref: 14044
HOLDER-CABLE,CLUTCH
14044012
€ 8.00
16065
16065033
ref: 16065
HOLDER-CARBURETOR
16065033
€ 13.50
16115
16115020
ref: 16115
PLUG,OIL FILLER
16115020
€ 7.50
49006
14038039
ref: 49006
BOOT,CARBURETOR
14038039
€ 30.50
49006A
14038040
ref: 49006A
BOOT,CARBURETOR
14038040
€ 12.50
92027
92027207
ref: 92027
COLLAR,11X15,RUBBER
92027207
€ 2.50
92043
92042017
ref: 92043
PIN,DOWEL,8X16
92042017
€ 4.00
92049
92049002
ref: 92049
OIL SEAL SB16244
92049002
€ 6.00
92055
92055029
ref: 92055
RING-O,7.8X3.5
92055029
€ 2.50
92055A
92055057
ref: 92055A
RING-O,107.4X1.9
92055057
€ 5.50
92055B
92055080
ref: 92055B
RING-O,2.5X1.5
92055080
€ 3.00
92062
92062012
ref: 92062
NOZZLE
92062012
€ 8.50
92066
16116006
ref: 92066
PLUG,25X12
16116006
€ 10.50
92066A
92067017
ref: 92066A
PLUG,ENGINE COVER,LH,
92067017
€ 10.50
92071
16136009
ref: 92071
GROMMET,OVERFLOW
16136009
€ 6.00
220
214B0516A
ref: 220
UNAVAILABLE IN PRICE BOOK
€ 0.50
220A
220B0612
ref: 220A
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
220B
220B0620
ref: 220B
SCREW-PAN HEAD,6X20
220B0620
€ 2.50
220C
220B0630
ref: 220C
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
220D
220B0635
ref: 220D
SCREW-PAN HEAD,6X35
220B0635
€ 1.00
220E
220B0645
ref: 220E
SCREW-PAN HEAD,6X45
220B0645
€ 2.50
670
670B2016
ref: 670
O RING,16MM
670B2016
€ 1.00
670A
670B2020
ref: 670A
O RING,20MM
670B2020
€ 1.00
670B
670B3028
ref: 670B
O RING,28MM
670B3028
€ 2.50
