CHASSIS ELECTRICAL EQUIPMENT ('8

KE125-A10 KE125 1983 USA USA CANADA

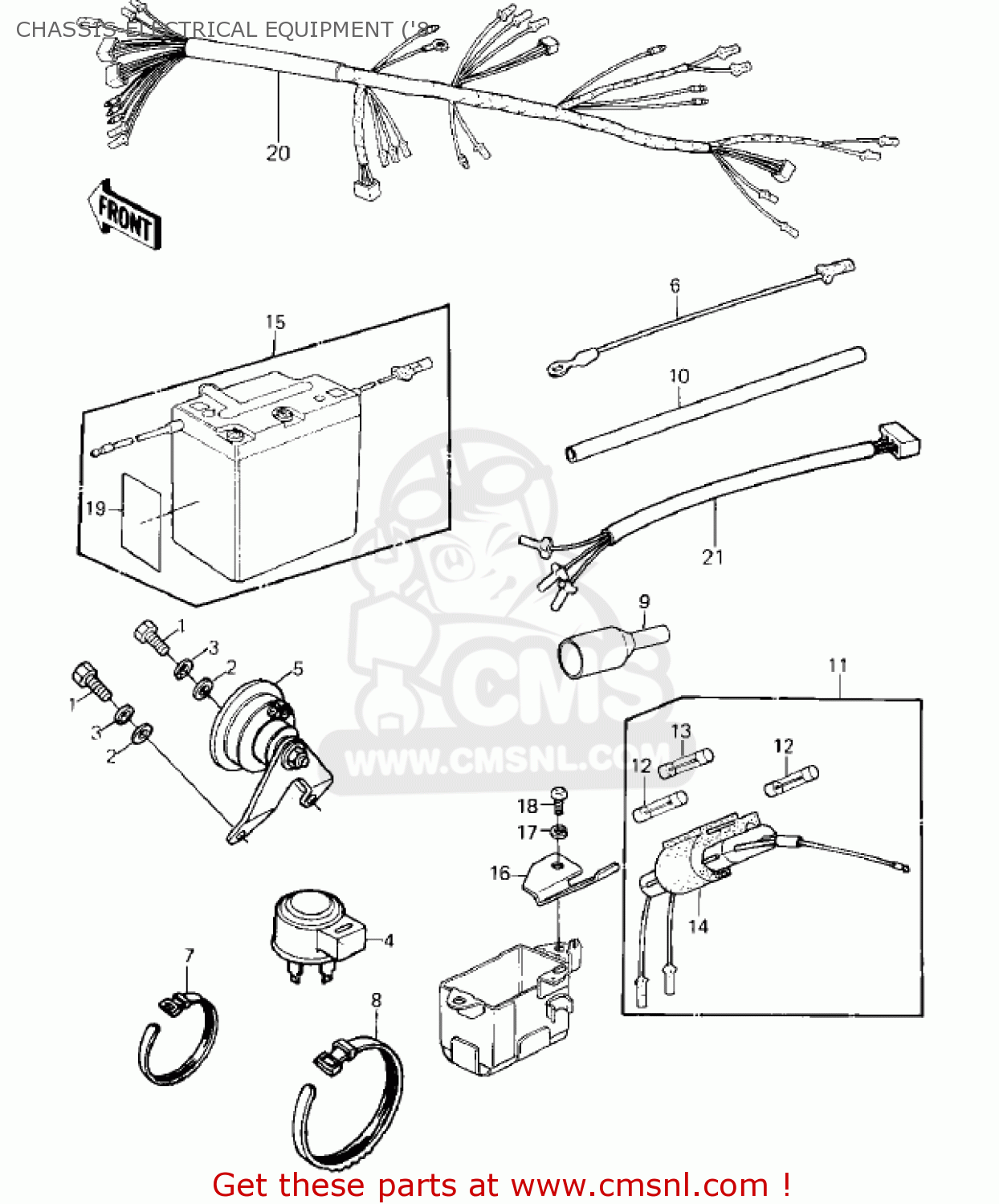

Chassis electrical equipment ('8 diagram KE125-A10 KE125 1983 USA USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('8 KE125-A10 KE125 1983 USA USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KE125-A10 KE125 1983 USA USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KE125-A10 KE125 1983 USA USA CANADA
prices are in EUR
ref
part #
description
quantity
1
112G0616
ref: 1
BOLT UPSET,6X16
112G0616
€ 1.00
2
411B0600
ref: 2
WASHER-PLAIN,6MM
411B0600
€ 0.50
3
461F0600
ref: 3
WASHER-SPRING,6MM
461F0600
€ 0.50
4
27002013
ref: 4
RELAY-ASSY,TURN SIGNA
27002013
€ 27.00
5
270031008
ref: 5
HORN
€ 36.00
6
26011093
ref: 6
WIRE-LEAD
26011093
€ 6.00
7
92072030
ref: 7
KE125-A7
BAND,SHORT
92072030
€ 3.00
7
92072030
ref: 7
KE125-A8
BAND,SHORT
92072030
€ 3.00
8
92072032
ref: 8
KE125-A7
BAND,LONG
92072032
€ 3.00
8
92072032
ref: 8
KE125-A8
BAND,LONG
92072032
€ 3.00
9
140251183
ref: 9
KE125-A7
COVER,RR HARNESS
€ 3.00
10
920591143
ref: 10
TUBE,6X7X380
€ 2.00
11
260041010
ref: 11
FUSE-ASSY
260041010
€ 19.50
12
260061003
ref: 12
FUSE,15A,L=30M/M
260061003
€ 3.00
13
260061002
ref: 13
FUSE,10A,L=30M/M
260061002
€ 3.00
14
920751044
ref: 14
DAMPER,FUSE
€ 6.00
15
K26012034
ref: 15
BATTERY,YUA,6N6-1D-2
€ 78.00
16
110341368
ref: 16
FUSE BRACKET
€ 2.50
17
461F0500
ref: 17
WASHER-SPRING,5MM
461F0500
€ 0.50
18
220B0510
ref: 18
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
19
560401036
ref: 19
WARNING, BATTERY
€ 2.00
20
260011133
ref: 20
KE125-A7
WIRING HARNESS,MAIN
€ 75.50
20
260011161
ref: 20
KE125-A7
WIRING HARNESS,MAIN
€ 72.50
20
260011225
ref: 20
KE125-A8
HARNESS,MAIN
€ 81.00
21
26002046
ref: 21
HARNESS,TAIL LAMP
26002046
€ 12.50
