CHASSIS ELECTRICAL EQUIPMENT ('8

KE125-A10 KE125 1983 USA USA CANADA

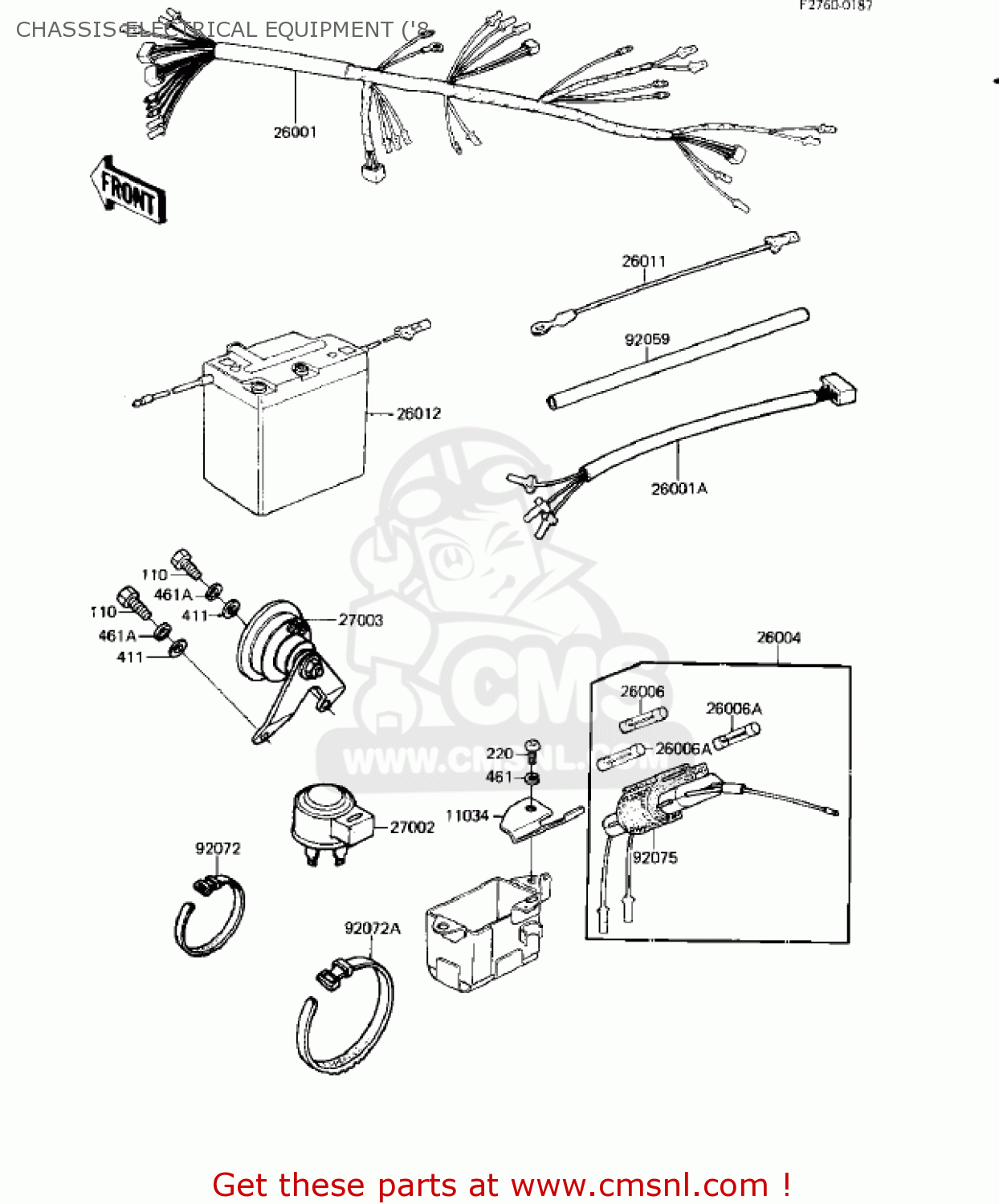

Chassis electrical equipment ('8 diagram KE125-A10 KE125 1983 USA USA CANADA

CHASSIS ELECTRICAL EQUIPMENT ('8 KE125-A10 KE125 1983 USA USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KE125-A10 KE125 1983 USA USA CANADA
CHASSIS ELECTRICAL EQUIPMENT ('8 KE125-A10 KE125 1983 USA USA CANADA
prices are in EUR
ref
part #
description
quantity
11034
110341368
ref: 11034
FUSE BRACKET
€ 2.50
26001
260011225
ref: 26001
HARNESS,MAIN
€ 81.00
26001A
26002046
ref: 26001A
HARNESS,TAIL LAMP
26002046
€ 12.50
26004
260041010
ref: 26004
FUSE-ASSY
260041010
€ 19.50
26006
260061002
ref: 26006
FUSE,10A,L=30M/M
260061002
€ 3.00
26006A
260061003
ref: 26006A
FUSE,15A,L=30M/M
260061003
€ 3.00
26011
26011093
ref: 26011
WIRE-LEAD
26011093
€ 6.00
26012
K26012034
ref: 26012
BATTERY,YUA,6N6-1D-2
€ 78.00
27002
27002013
ref: 27002
RELAY-ASSY,TURN SIGNA
27002013
€ 27.00
27003
270031008
ref: 27003
HORN
€ 36.00
92059
920591143
ref: 92059
TUBE,6X7X380
€ 2.00
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
92072032
€ 3.00
92075
920751044
ref: 92075
DAMPER,FUSE
€ 6.00
110
112G0616
ref: 110
BOLT UPSET,6X16
112G0616
€ 1.00
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
411B0600
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
461F0500
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
461F0600
€ 0.50
