CRANKCASE ('82-'83 A9/A10)

KE125-A10 KE125 1983 USA USA CANADA

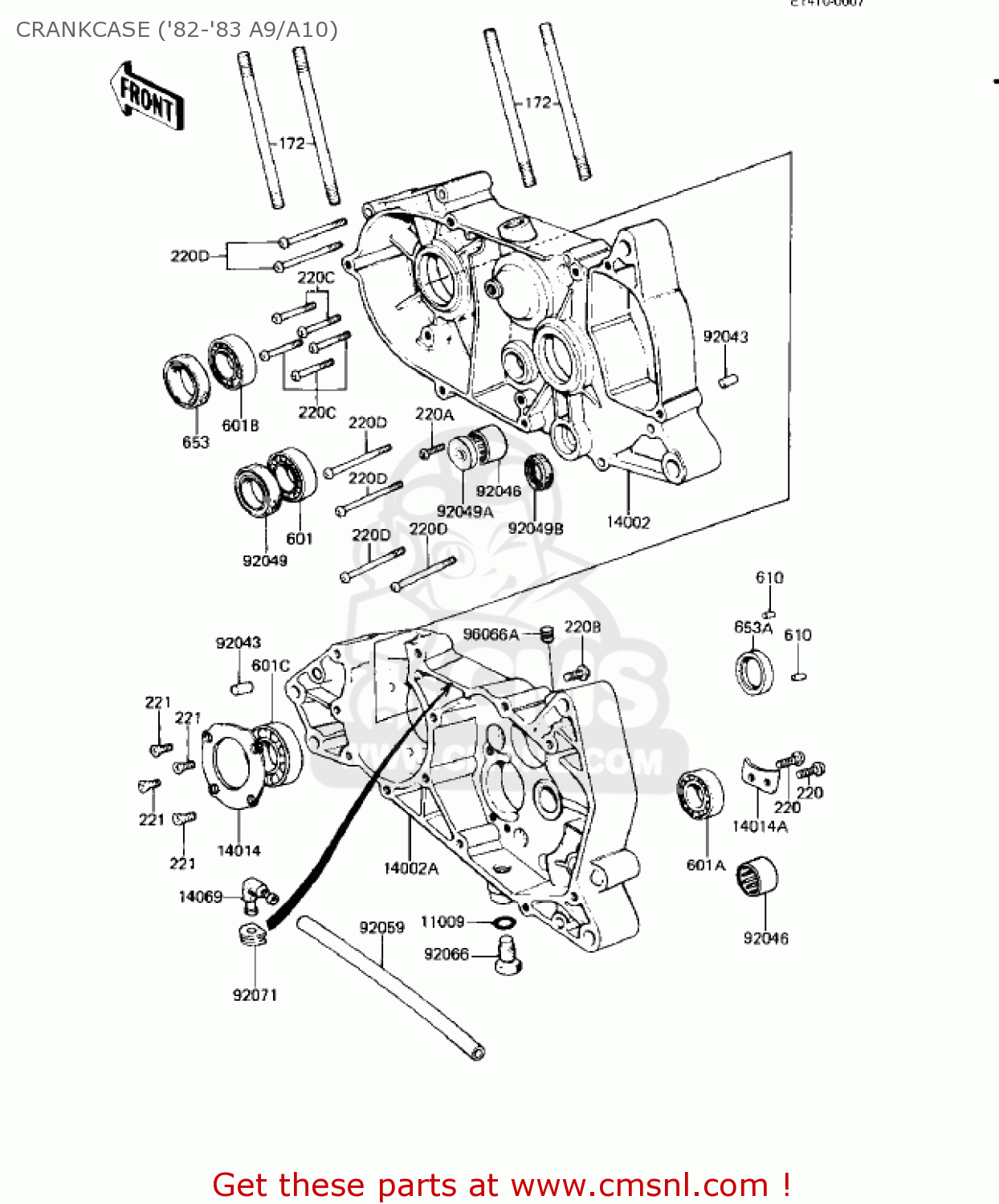

Crankcase ('82-'83 a9/a10) diagram KE125-A10 KE125 1983 USA USA CANADA

CRANKCASE ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA

CRANKCASE ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

92065073
ref: 11009

GASKET,12.5X18X1,DRAI (NAS)

€ 2.50

14002

140015138
ref: 14002

SET-CRANKCASE,F.BLACK

€ 514.50

14002A

140015138
ref: 14002A

SET-CRANKCASE,F.BLACK

€ 514.50

14014

14014028
ref: 14014

PLATE,CRANK BEARING

€ 4.50

14014A

14014029
ref: 14014A

PLATE,MISSION BEARNG

€ 2.00

14069

140691001
ref: 14069

BREATHER

€ 17.50

92043

920431037
ref: 92043

PIN,DOWEL,10X8.2X14

€ 0.50

92046

92046037
ref: 92046

BEARING-NEEDLE,7E-HK1

€ 17.00

92049

92050013
ref: 92049

OIL SEAL SC25376

€ 9.50

92049A

92050058
ref: 92049A

OIL SEAL,PUSH ROD

€ 5.50

92049B

920491271
ref: 92049B

SEAL, OIL

€ 7.00

92059

140691001
ref: 92059

BREATHER

€ 17.50

92066

920661240
ref: 92066

PLUG,DRAIN

€ 4.50

92066A

92074035
ref: 92066A

PLUG,15X19

€ 4.50

92071

92071042
ref: 92071

GROMMET

€ 2.50

172

172G0870
ref: 172

STUD,8X70

€ 3.50

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

220A

220B0620
ref: 220A

SCREW-PAN HEAD,6X20

€ 2.50

220B

220B0625
ref: 220B

SCREW-PAN HEAD,6X25

€ 1.50

220C

220B0640
ref: 220C

SCREW-PAN HEAD,6X40

€ 2.00

220D

220B0660
ref: 220D

SCREW-PAN HEAD,6X60

€ 2.50

221

221B0616
ref: 221

SCREW-CNTSNK HD,6X16

€ 0.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6203
ref: 601A

BEARING-BALL,#6203C3

€ 10.50

601B

601B6204
ref: 601B

BEARING-BALL,#6204C3

€ 8.00

601C

601B6304
ref: 601C

BEARING-BALL,#6304C3

€ 31.00

610

610A0512
ref: 610

ROLLER,5X12

€ 3.00

653

920491240
ref: 653

SEAL-OIL

€ 10.50

653A

920491250
ref: 653A

SEAL-OIL

€ 12.00
