FRONT HUB/BRAKE ('82-'83 A9/A10)

KE125-A10 KE125 1983 USA USA CANADA

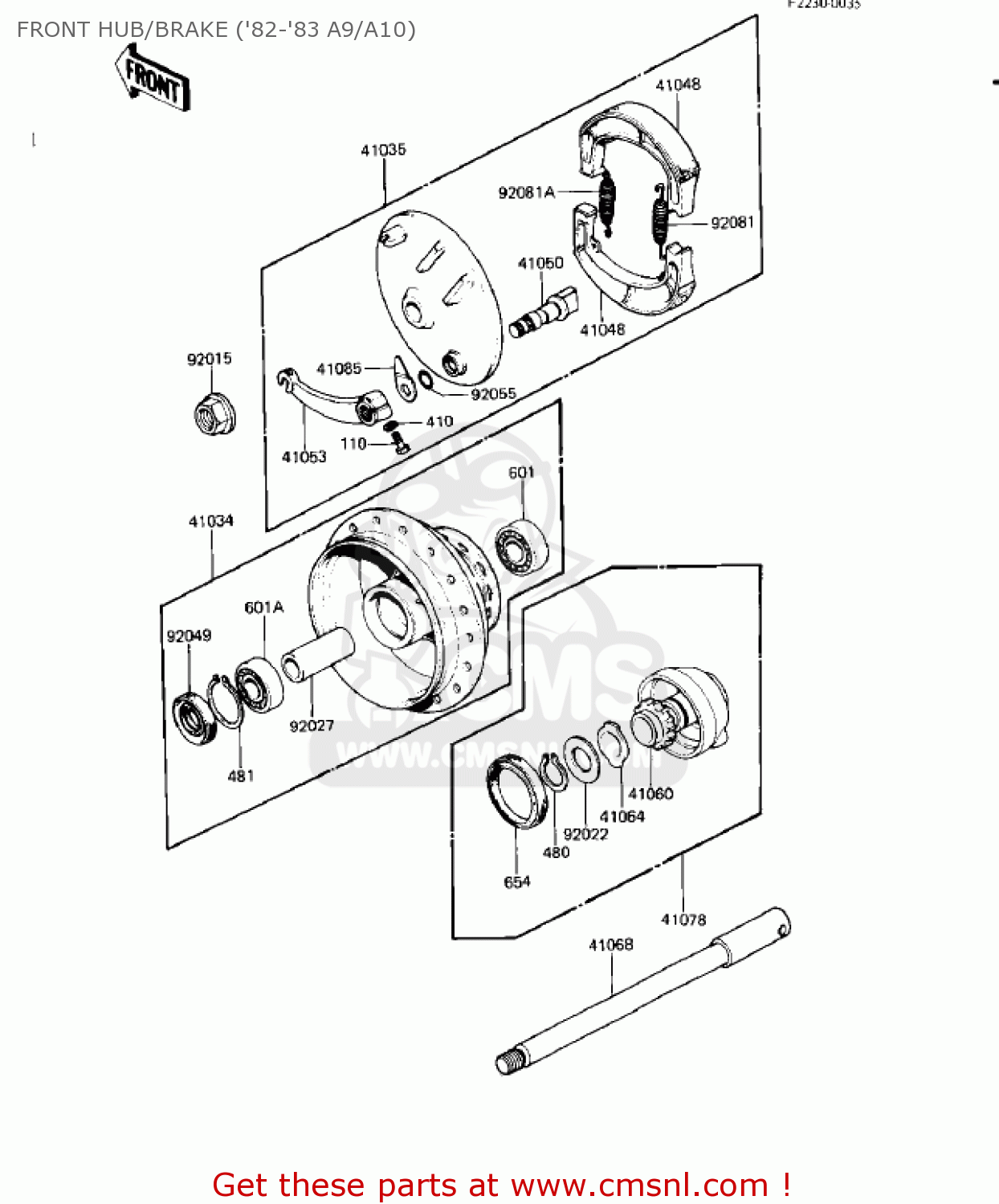

Front hub/brake ('82-'83 a9/a10) diagram KE125-A10 KE125 1983 USA USA CANADA

FRONT HUB/BRAKE ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA

FRONT HUB/BRAKE ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

41034

410341024
ref: 41034

DRUM ASSY,FRONT BRAKE

€ 152.50

41035

410351035
ref: 41035

PANEL ASSY,F.BRAKE

€ 227.50

41048

41048015
ref: 41048

SHOE,BRAKE (MCA)

€ 14.50

41050

41050012
ref: 41050

CAM-BRAKE

€ 18.00

41053

41053020
ref: 41053

LEVER-BRAKE CAM

€ 38.00

41060

41059024
ref: 41060

GEAR,SPEEDOMETER,24T

€ 22.50

41064

41064011
ref: 41064

RECEIVER,SPEED GEAR

€ 4.00

41068

410681064
ref: 41068

AXLE,FR

€ 28.00

41078

410781019
ref: 41078

CASE-ASSY-METER GEAR

€ 72.50

41085

41085002
ref: 41085

INDICATOR,BRAKE SHOE

€ 2.50

92015

920151156
ref: 92015

NUT,12MM

€ 4.50

92022

41065004
ref: 92022

WASHER,19.5X26X0.8

€ 2.00

92027

41039025
ref: 92027

COLLAR,L=44

€ 10.00

92049

92050059
ref: 92049

OIL SEAL,FR BK DRUM

€ 13.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

110

112G0622
ref: 110

BOLT-UPSET

€ 2.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

480

480J1900
ref: 480

CIRCLIP-TYPE-C,19MM

€ 1.00

481

481J3700
ref: 481

CIRCLIP-TYPE-C,37MM

€ 1.50

601

601B6201
ref: 601

BEARING-BALL,#6201C3

€ 7.00

601A

601B6301
ref: 601A

BEARING-BALL,#6301C3

€ 13.00

654

654A405208
ref: 654

OIL SEAL

€ 9.00
