CRANKSHAFT/PISTON/ROTARY VALVE (

KE125-A10 KE125 1983 USA USA CANADA

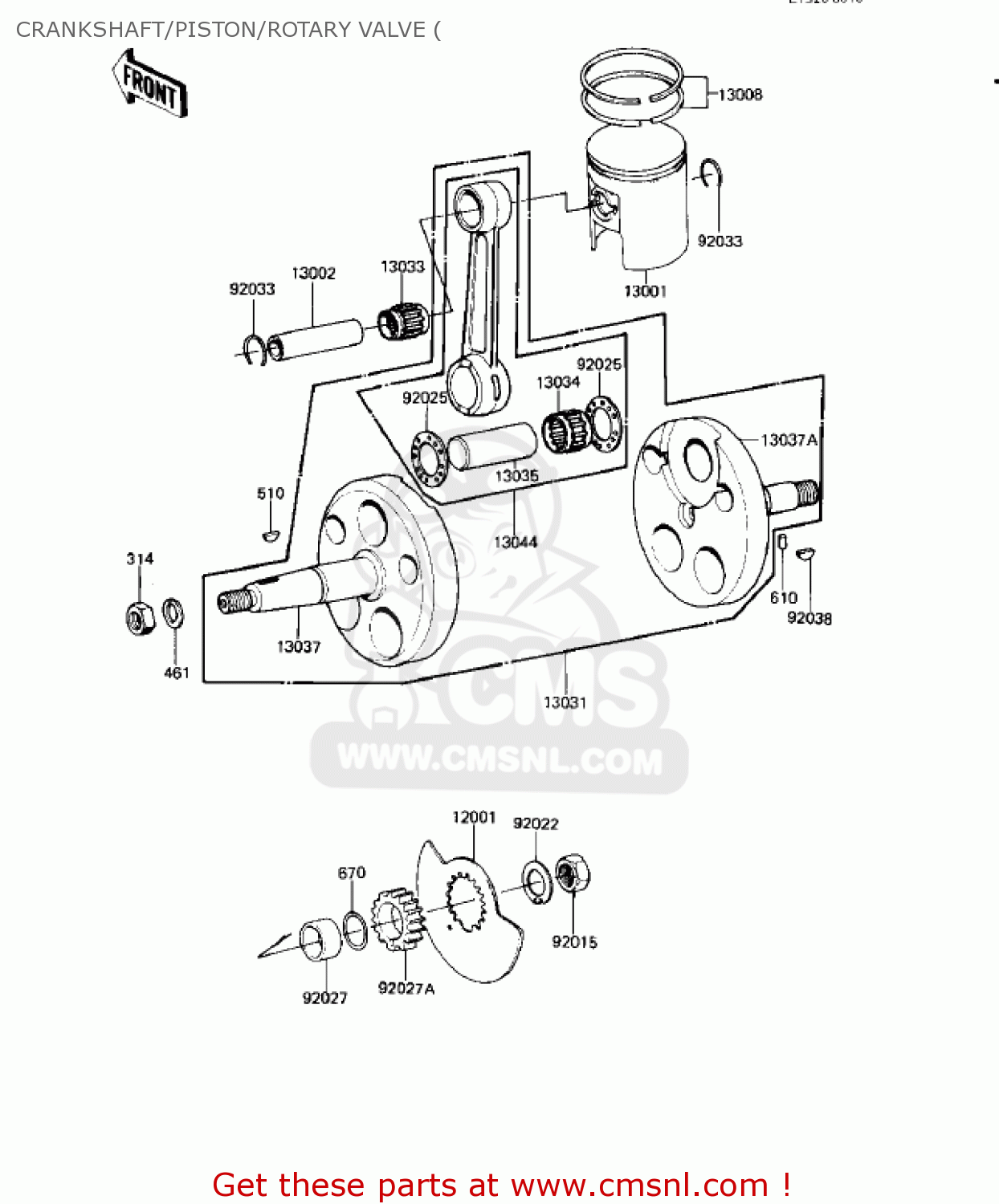

Crankshaft/piston/rotary valve ( diagram KE125-A10 KE125 1983 USA USA CANADA

CRANKSHAFT/PISTON/ROTARY VALVE ( KE125-A10 KE125 1983 USA USA CANADA

CRANKSHAFT/PISTON/ROTARY VALVE ( KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

12001

12002029
ref: 12001

VALVE-ROTARY

€ 15.50

13001

130011124
ref: 13001

PISTON-ENGINE,STD

€ 49.50

13002

130021002
ref: 13002

PIN-PISTON

€ 13.00

13008

130085010
ref: 13008

RING-SET-PISTON,STD

€ 39.50

13031

130311003
ref: 13031

CRANKSHAFT-COMP

€ 423.00

13033

13033035
ref: 13033

BEARING-NEEDLE,UR1412

€ 16.00

13034

130341001
ref: 13034

BEARING-NEEDLE,KT2027

€ 24.00

13035

13035033
ref: 13035

PIN-CRANK

€ 17.00

13037

13037059
ref: 13037

CRANKSHAFT,LH

€ 135.50

13037A

130371084
ref: 13037A

CRANKSHAFT,R.H

€ 119.50

13044

130445003
ref: 13044

SET-CONNECTING ROD

€ 153.50

92015

92015006
ref: 92015

NUT,12MM

€ 3.50

92022

92024003
ref: 92022

WASHER,CLAW,12.5X25X0

€ 2.50

92025

92025005
ref: 92025

SHIM,20X34.5X1.0

€ 4.50

92027

920271077
ref: 92027

COLLAR,20X25X12.5

€ 14.00

92027A

920271272
ref: 92027A

COLLAR,ROTARY VALVE

€ 12.50

92033

92036003
ref: 92033

CIRCLIP-PISTON PIN

€ 0.50

92038

92038003
ref: 92038

WOODRUFF KEY-PRY PINI

€ 1.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00
