CARBURETOR ('82-'83 A9/A10)

KE125-A10 KE125 1983 USA USA CANADA

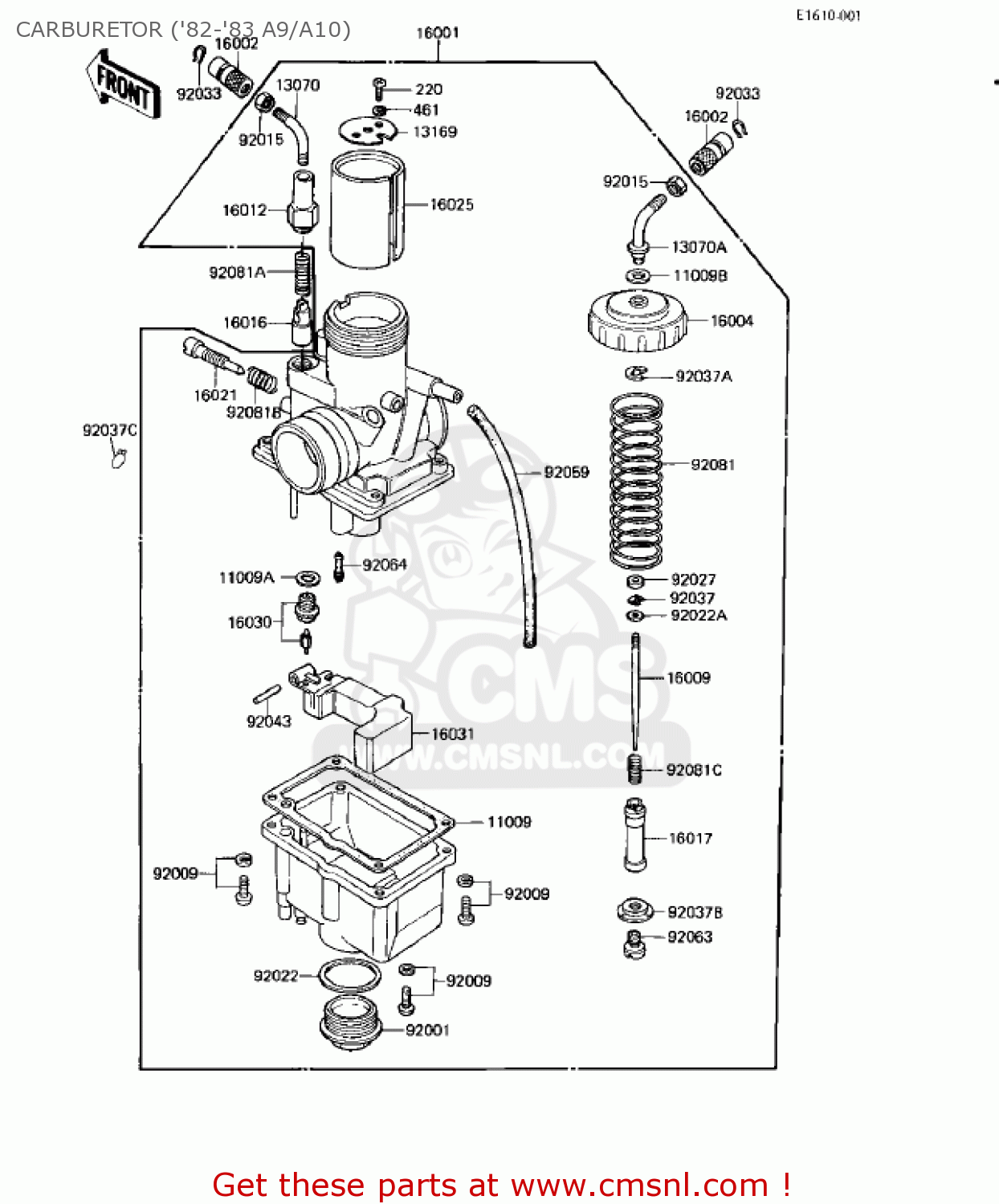

Carburetor ('82-'83 a9/a10) diagram KE125-A10 KE125 1983 USA USA CANADA

CARBURETOR ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA
CARBURETOR ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA
CARBURETOR ('82-'83 A9/A10) KE125-A10 KE125 1983 USA USA CANADA
prices are in EUR
ref
part #
description
quantity
11009
16019023
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
16019023
€ 10.00
11009A
16029004
ref: 11009A
WASHER-FLOAT VLV SEAT
16029004
€ 2.50
11009B
16029007
ref: 11009B
GASKET,CABLE GUIDE (NAS)
16029007
€ 5.50
13070
16077010
ref: 13070
GUIDE,CABLE
16077010
€ 13.00
13070A
16077011
ref: 13070A
GUIDE,CABLE
16077011
€ 13.50
13169
131691123
ref: 13169
THROTTLE VALVE PLATE
€ 5.50
16001
160011243
ref: 16001
CARBURETOR ASSEMBLY
€ 209.00
16002
16002007
ref: 16002
ADJUSTER-CABLE,THROTT
16002007
€ 7.50
16004
16004024
ref: 16004
CAP,MIXING CHAMBER
€ 13.50
16009
160091066
ref: 16009
JET,NEEDLE,5EL24
€ 21.00
16012
16012017
ref: 16012
CAP-STARTER PLUNGER
16012017
€ 11.50
16016
16016002
ref: 16016
PLUNGER,STARTER
16016002
€ 20.00
16017
160171062
ref: 16017
JET,NEEDLE,#AO-0
€ 24.00
16021
16021023
ref: 16021
SCREW-THROTTLE STOP
16021023
€ 12.50
16025
160251018
ref: 16025
THROTTLE VALVE,CA2.5
€ 49.00
16030
16030024
ref: 16030
VALVE-FLOAT
16030024
€ 30.50
16031
16031026
ref: 16031
FLOAT
16031026
€ 40.00
92001
92001146
ref: 92001
BOLT,BANJO
€ 12.50
92009
223B0414
ref: 92009
SCREW PAN-WS-CROS
€ 2.50
92015
16003004
ref: 92015
NUT-CABLE ADJUST LOCK
16003004
€ 4.50
92022
16034008
ref: 92022
WASHER,MAIN JET COVER (NAS)
16034008
€ 4.00
92022A
920221024
ref: 92022A
WASHER,THROTTLE VALVE
920221024
€ 4.50
92027
920271103
ref: 92027
RING,JET NEEDLE
920271103
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
92036018
€ 2.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
16008010
€ 5.00
92037A
16008011
ref: 92037A
CLAMP,CABLE GUIDE
16008011
€ 4.50
92037B
16008012
ref: 92037B
RING,MAIN JET HOLD
16008012
€ 13.50
92037C
92037010
ref: 92037C
CLAMP-FUEL PIPE
92037010
€ 2.50
92043
16032006
ref: 92043
PIN,FLOAT
16032006
€ 4.00
92059
920591011
ref: 92059
TUBE, CARB. BREATHER
920591011
€ 6.50
92063
920631085
ref: 92063
JET,MAIN,#A92.5R
€ 8.00
92064
920641020
ref: 92064
JET-PILOT,#A25
920641020
€ 12.50
92081
16006024
ref: 92081
SPRING,THROTTLE VALV
16006024
€ 7.50
92081A
16013003
ref: 92081A
SPRING-STARTER PLUNG
16013003
€ 4.00
92081B
16022005
ref: 92081B
SPRING-THR STOP SCREW
16022005
€ 5.50
92081C
920811072
ref: 92081C
NEEDLE JET SPRING
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
461
461F0300
ref: 461
WASHER-SPRING,3MM
461F0300
€ 0.50
