FRONT FORK (KE125-A9)

KE125-A10 KE125 1983 USA USA CANADA

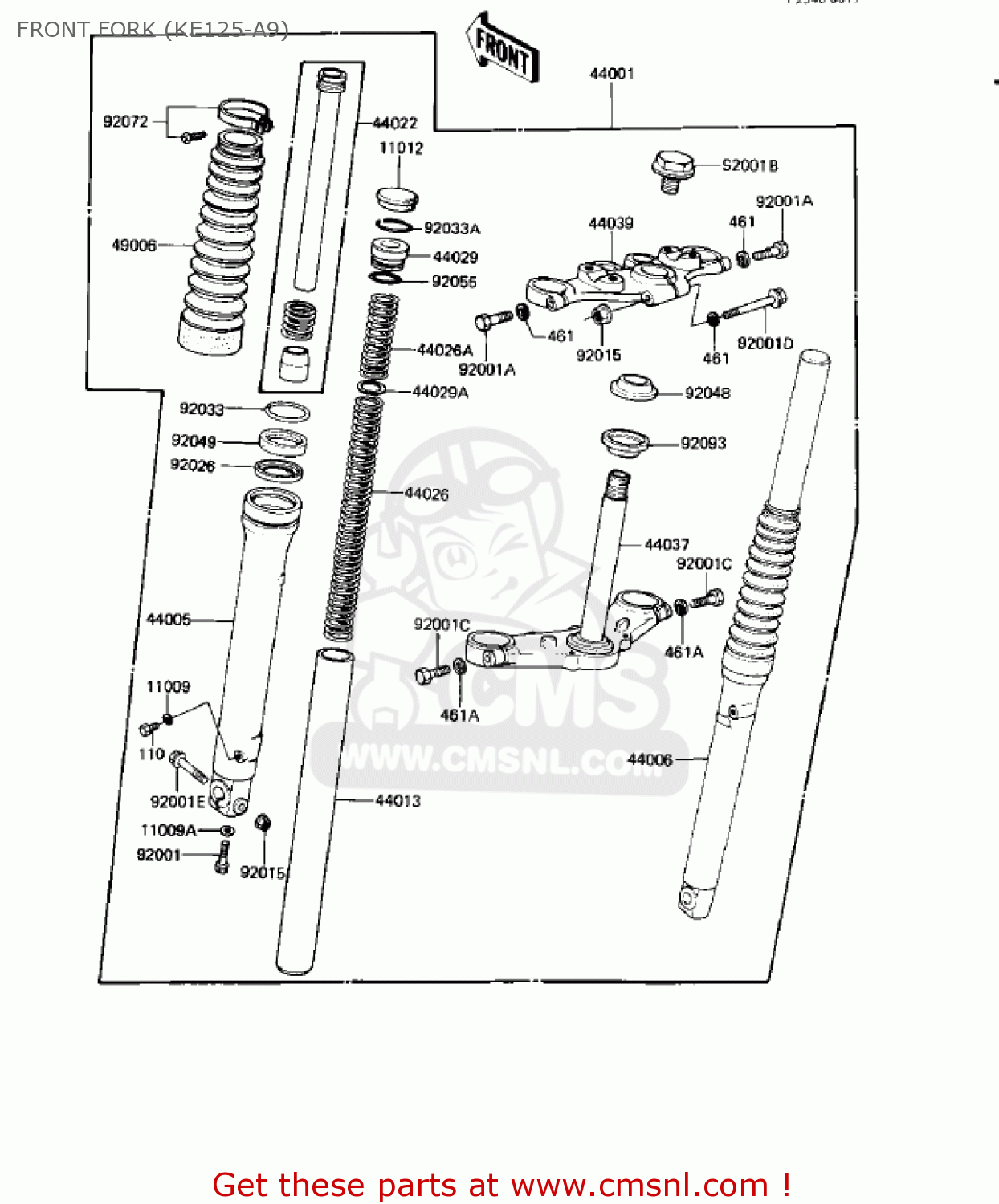

Front fork (ke125-a9) diagram KE125-A10 KE125 1983 USA USA CANADA

FRONT FORK (KE125-A9) KE125-A10 KE125 1983 USA USA CANADA

FRONT FORK (KE125-A9) KE125-A10 KE125 1983 USA USA CANADA

prices are in EUR

ref

part #

description

quantity

11009

44045047
ref: 11009

GASKET,DRAIN PLUG (NAS)

€ 6.00

11009A

44045051
ref: 11009A

GASKET,FORK CYLINDER (NAS)

€ 4.00

11012

110121124
ref: 11012

CAP,FORK

€ 6.00

44001

4400112976Z
ref: 44001

FORK-FRONT,BLACK

€ 631.00

44005

440051074
ref: 44005

PIPE-LEFT FORK OUTER

€ 110.50

44006

440061074
ref: 44006

PIPE-RIGHT FORK OUTER

€ 110.50

44013

440131069
ref: 44013

PIPE-FORK INNER

€ 100.50

44022

440221065
ref: 44022

CYLINDER-FORK

€ 46.50

44026

440261119
ref: 44026

SPRING-FRONT FORK

€ 24.50

44026A

440261137
ref: 44026A

SPRING-FRONT FORK,UPP

€ 8.50

44029

44029022
ref: 44029

GUIDE, FORK SPRING

€ 8.00

44029A

440291033
ref: 44029A

SEAT-FORK SPRING

€ 6.50

44037

440371078
ref: 44037

HOLDER-FORK UNDER

€ 148.00

44039

440391048
ref: 44039

HOLDER-FORK UPPER

€ 90.50

49006

4900610476Z
ref: 49006

BOOT,FR FORK,BLACK

€ 29.00

92001

44041078
ref: 92001

BOLT, FORK CYLINDER

€ 6.50

92001A

920011063
ref: 92001A

BOLT,HEX HEAD,8X40

€ 6.50

92001B

920011741
ref: 92001B

BOLT,STEERING STEM HD

€ 6.50

92001C

920011252
ref: 92001C

BOLT,HEX HEAD,10X35

€ 3.50

92001E

920011486
ref: 92001E

BOLT,FLANGED,8X50

€ 7.50

92015

920151055
ref: 92015

NUT,8M/M

€ 3.00

92026

920261099
ref: 92026

SPACER,FORK OUTER

€ 7.00

92033

44044020
ref: 92033

CIRCLIP,45MM

€ 9.50

92033A

44044023
ref: 92033A

CIRCLIP

€ 3.50

92048

92047010
ref: 92048

CONE-STERNG BERG LOW

€ 10.00

92049

920491080
ref: 92049

SEAL-OIL FORK OUTER

€ 14.00

92055

44046025
ref: 92055

'O' RING, FORK

€ 4.00

92072

920721038
ref: 92072

BAND,BOOT

€ 8.50

92093

44010027
ref: 92093

SEAL,STEERING STEM

€ 7.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

461A

461F1000
ref: 461A

WASHER-SPRING,10MM

€ 0.50
