SWING ARM/CHAIN COVER

KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

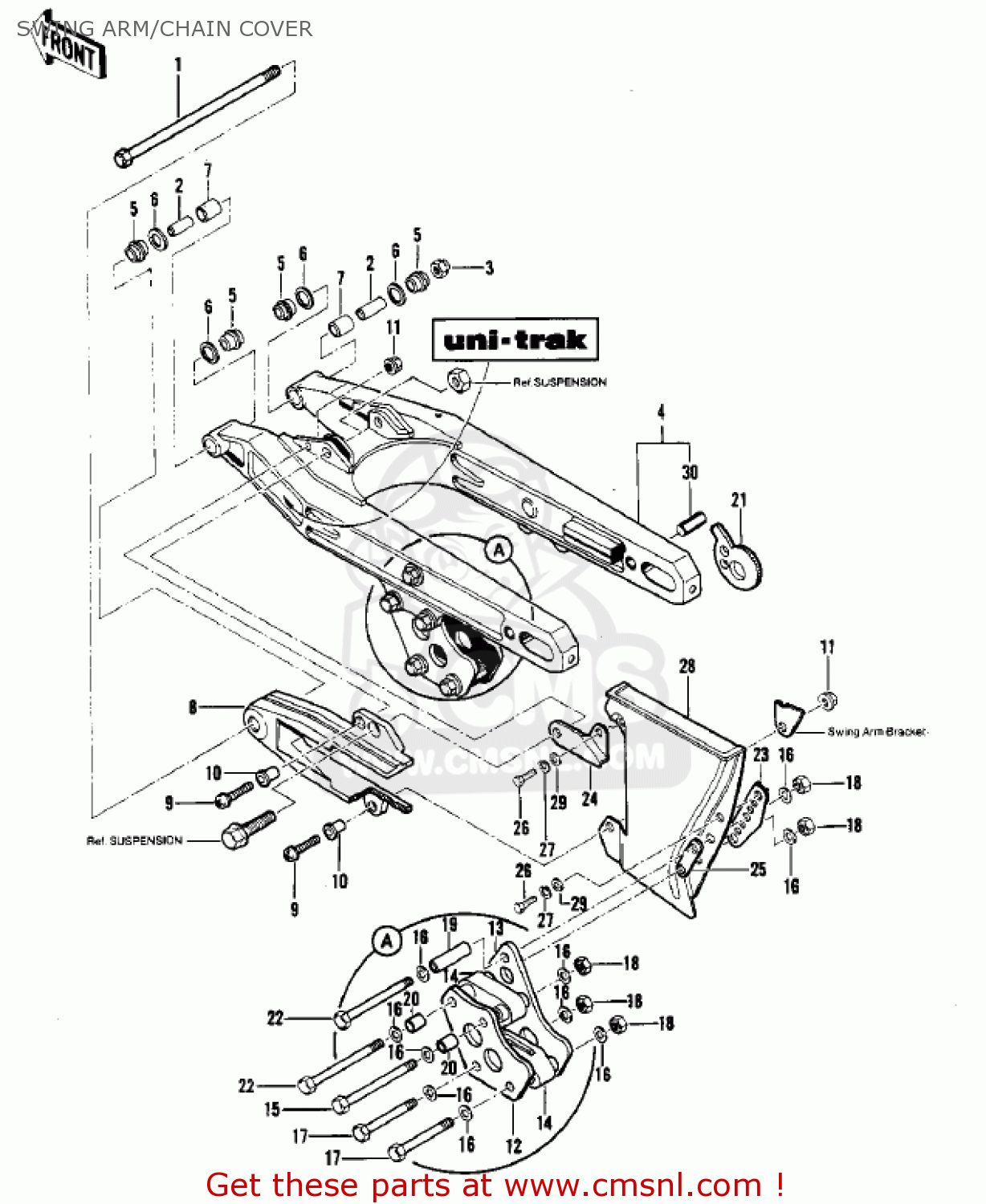

Swing arm/chain cover diagram KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA

SWING ARM/CHAIN COVER KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
SWING ARM/CHAIN COVER KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
SWING ARM/CHAIN COVER KDX250-B2 KDX250 1982 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
1
330321020
ref: 1
SHAFT-SWING ARM
€ 64.50
2
420361031
ref: 2
SLEEVE,SWING ARM
420361031
€ 33.50
3
92019011
ref: 3
NUT,LOCK,14MM
92019011
€ 6.00
4
330011002
ref: 4
FORGED
SWING ARM
€ 172.50
5
110121099
ref: 5
CAP,SWING ARM
110121099
€ 14.50
6
920251116
ref: 6
SHIM,20X26.6X0.5
920251116
€ 2.50
7
920281072
ref: 7
BUSHING
€ 20.50
8
120534001
ref: 8
GUIDE,CHAIN
€ 39.50
9
920091289
ref: 9
SCREW,6X20
920091289
€ 2.50
10
920271260
ref: 10
L=3.5 MM
COLLAR
920271260
€ 4.00
11
920151078
ref: 11
NUT,6M/M
920151078
€ 1.50
12
550204009
ref: 12
GUARD,CHAIN
€ 15.50
13
550204010
ref: 13
GUARD,CHAIN
€ 15.50
14
120531015
ref: 14
GUIDE-CHAIN
120531015
€ 22.00
15
112G0660
ref: 15
BOLT-UPSET
112G0660
€ 3.00
16
411B0600
ref: 16
WASHER-PLAIN,6MM
411B0600
€ 0.50
17
112G0645
ref: 17
BOLT-UPSET
€ 0.50
18
92019008
ref: 18
NUT-LOCK,6MM
92019008
€ 3.00
19
920274016
ref: 19
COLLAR
€ 3.00
20
920274017
ref: 20
COLLAR
€ 1.50
21
330401060
ref: 21
ADJUSTER-CHAIN
330401060
€ 21.00
22
110G0670
ref: 22
BOLT,HEX HEAD,6X70
110G0670
€ 3.00
23
110341841
ref: 23
BRACKET,CHAIN CASE,F.
€ 8.50
24
110344076
ref: 24
BRACKET
€ 5.50
25
110344077
ref: 25
BRACKET,CHAIN CASE
€ 1.50
26
112B0614
ref: 26
BOLT-UPSET 6X14
112B0614
€ 2.50
27
461F0600
ref: 27
WASHER-SPRING,6MM
461F0600
€ 0.50
28
360144005
ref: 28
COVER,CHAIN
€ 37.50
29
92022125
ref: 29
WASHER,6.5X20X1.6
92022125
€ 1.00
30
551A0825
ref: 30
PIN,DOWEL,8X05
551A0825
€ 1.00
